Before You Begin
You will need the following:
• Computer with an Ethernet adapter and a Windows, Mac, or Unix based operating system.
• Internet Explorer or Netscape Navigator, version 6.0 or above, with JavaScript enabled.
Check Your Package Contents
These are the items included with your DSA-3100 purchase:
If any of the above items are missing, please contact your reseller.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
eb br
eb br
owser
owser
, i.e
, i.e
, i.e., ., ., ., .,
eb br
eb browser
owser
owser, i.e
, i.e

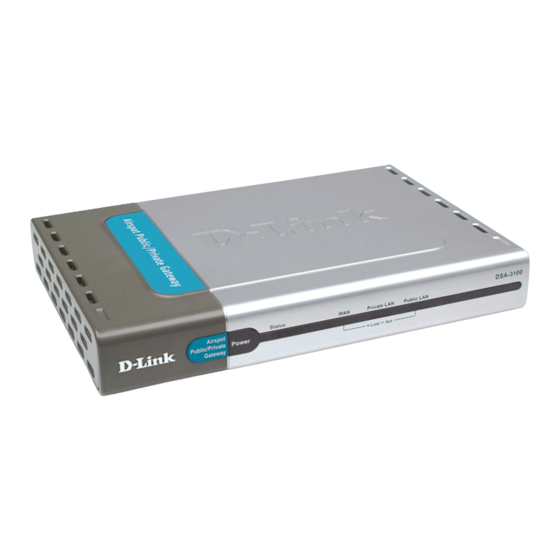

DSA-3100 Airspot
CD-ROM (containing Manual and Warranty)
2x Ethernet (CAT5 UTP/Straight-Through) Cables
1x Ethernet (CAT5 UTP/Crossover) Cable
Console Cable (RS-232)
5V DC Power Adapter
specifications subject to change without notice. DSA-3100. 06142004
™
Public/Private Gateway
Using a power supply
with a different voltage
rating will damage this product
and void its warranty.
DSA-3100
™ ™ ™ ™ ™
Air
Air
Air spot
spot
spot
Public/
Public/
Air
Air
spot
spot
Public/
Public/
Public/
Private Gateway
Private Gateway
Private Gateway
Private Gateway
Private Gateway

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSA-3100 - Airspot - Gateway and is the answer not in the manual?

Questions and answers

Related Manuals for D-Link DSA-3100 - Airspot - Gateway

Summary of Contents for D-Link DSA-3100 - Airspot - Gateway

  • Page 1 If any of the above items are missing, please contact your reseller. ©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DSA-3100. 06142004...
  • Page 2 Connecting The DSA-3100 To Your Network STATUS LED: A solid LED indicates the DSA-3100 is working properly. The LED will flash during reboot. POWER LED: A solid light NETWORK LEDs: A solid light on the port indicates a good connection. The indicates a proper connection LEDs blink during data transmission.
  • Page 3 Connecting The DSA-3100 To Your Network (continued) Power on the DSA-3100. Connect an Ethernet cable from the Public LAN port to a switch or wireless access point on your public network. The Public LAN LED will illuminate to indicate a proper connection. If the Public LAN LED doesn’t light up, please check the connections.

  • Page 4: Using The Setup Wizard

    Using The Setup Wizard Connect the computer you will be using for configuration to the Private Network or directly to the Private LAN Port. To obtain a new IP address from the DSA-3100 you may need to restart your computer or release and renew your IP address.
  • Page 5 Using The Setup Wizard (continued) Once you have logged in, the home screen will appear. Click Run Wizard You have the option to establish a new password for the admin account. Enter a new admin password and retype it for verification Click Next Select the appropriate time zone for...
  • Page 6 Using The Setup Wizard (continued) Enter the system information: • Succeed Page: The URL users are directed to when successfully authenticated. • Time Server: Specify an external time server for time synchronization. • DNS Server IP: IP address of the Domain Name Server.
  • Page 7 Using The Setup Wizard (continued) Specify the DHCP Server Settings. Specify a range of IP addresses to assign the DHCP clients. The range is entered in the format “Start IP – End IP” i.e. 192.168.0.101 – 192.168.0.200. Enter the Domain Name and Primary DNS Server settings for the clients.
  • Page 8 Using The Setup Wizard (continued) Setup Wizard Complete Click Restart to complete your configuration. Click Restart...
  • Page 9 Appendix - IP Configuration To connect to the network, make sure the network adapter in your computer is configured properly. Here’s how to configure the network adapter to obtain an IP address automatically ™ from the DSA-3100 Airspot Public/Private Gateway. Microsoft Windows XP: Go to Start >...
  • Page 10 Appendix - IP Configuration (continued) Apple Mac OS X: Go to the Apple Menu and Select System Preferences. Click on Network Select Built-in Ethernet the show pull down menu Select Using DHCP in the Configure pull down menu The IP address information, the Subnet Mask, the DSA-3100 IP address and the Ethernet adapter address will appear.
  • Page 11 Notes...
