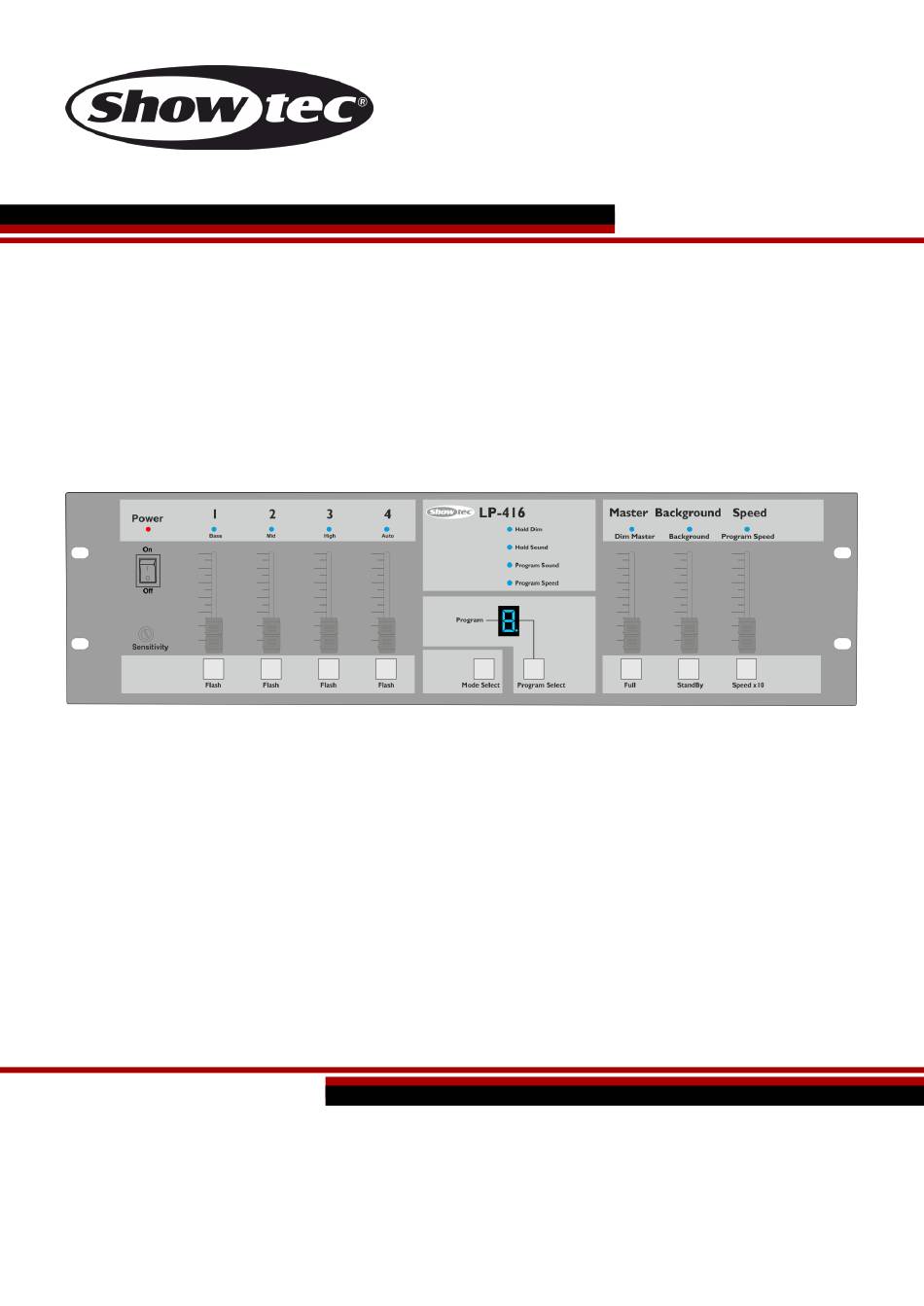

- Page 1 MANUAL ENGLISH LP-416 Ordercode: 50750 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
LP-416 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains ............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Front ....................................5 Front .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec LP-416 Power cable (1,5 m) ... -
Page 4: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Connection With The Mains
LP-416 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN... -
Page 6: Description Of The Device
LP-416 Description of the device Features The LP-416 is a compact light controller equipped with very useful features: • 4 channel chaser with 16A max. load • Background function • 9 built-in programs • 5 modes: Hold dim, Hold sound, Program sound, Program speed, Sound Mode via Audio Input (19) •... -
Page 7: Front
LP-416 Front Fig. 02 01) Power LED Indicates if the unit is ON. 02) Channel LED These LEDs allow you to monitor the output of each channel. 03) Mode select indicators Indicates which of the 4 modes is currently active. 04) Master dimmer Controls the overall dim level of the 4 channels. -
Page 8: Backside
Fig. 03 16) Analog output Use this output to connect an additional analog dimmer pack (ie. Showtec Dim-master 6, D-pack 6) 17) Channel fuses Each channel has its own fuse. Always replace a blown fuse with a fuse that has the same ratings (F8A 250V 6x32mm). -
Page 9: Installation
LP-416 Installation Remove all packing materials from the LP-416. Check if all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Maintenance
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 04) The electric power supply cables must not show any damages or material fatigue. Showtec LP-416 requires almost no maintenance. However, you should keep the unit clean. -
Page 11: Troubleshooting
01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the LP-416 to your Showtec dealer. 03) A light effect does not respond to the LP-416: Check the DMX-address of the fixture and the controller. -
Page 12: Product Specifications
F1A 250V 5x20 mm Output Fuses: F8A 250V 6x32mm Max. ambient temperature t 35°C Minimum distance: Minimum distance to lighted object: 0,5 m Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl Ordercode: 50750... -
Page 13: Dimensions
LP-416 Dimensions Ordercode: 50750... -
Page 14: Notes
LP-416 Notes Ordercode: 50750... - Page 15 LP-416 Ordercode: 50750...
- Page 16 ©2015 Showtec...
