Summary of Contents for Fieldmann FZR 4012-B

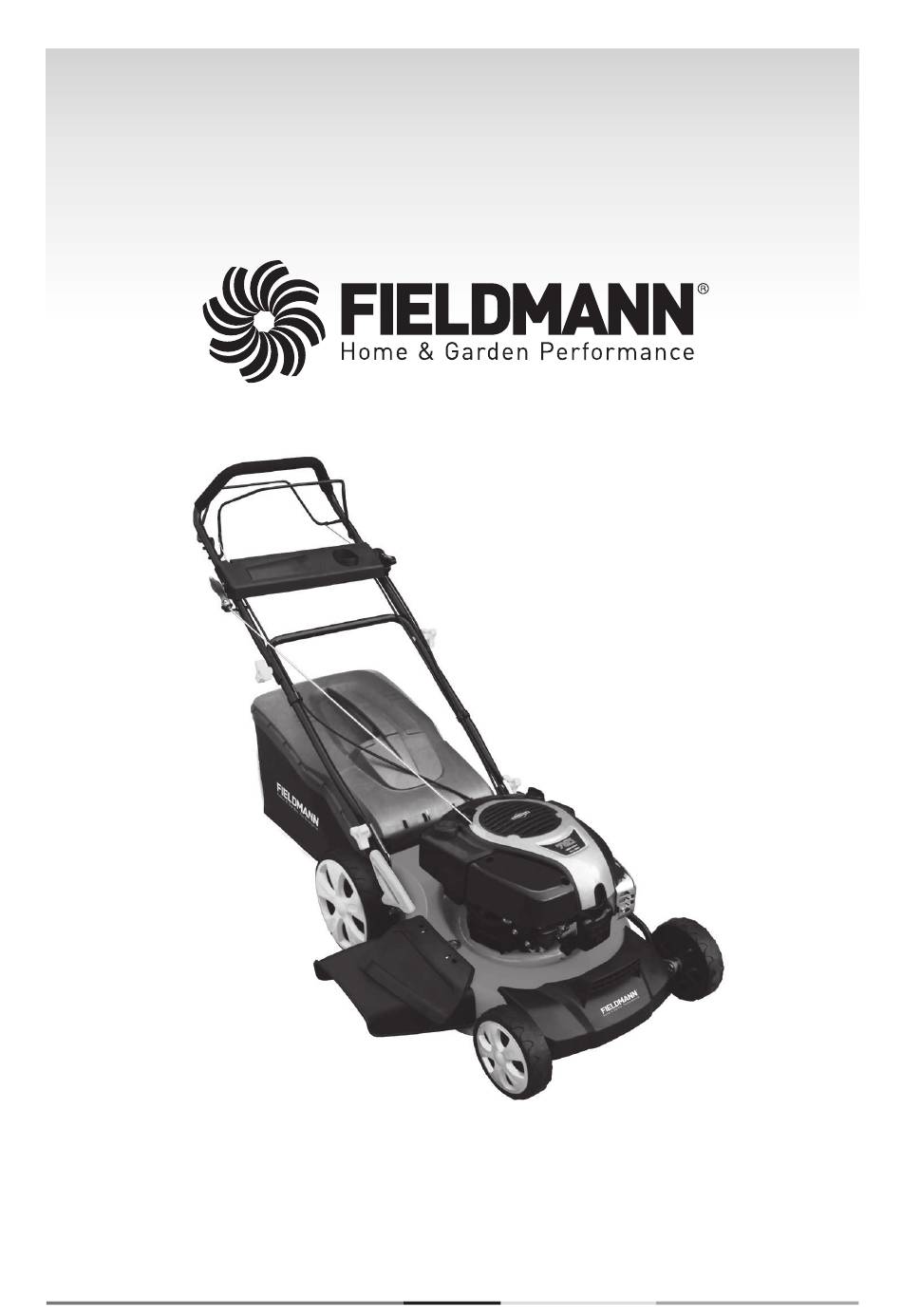

  • Page 1 FZR 4012-B...

  • Page 2: Appendix Of Figures

    English ..............................7 - 17 Čeština ..............................19 - 29 Slovenčina ............................31 - 41 Magyarul ............................43 - 54 Polski ..............................55 - 66 Русский ..............................67 - 79 FZR 4012-B...
  • Page 4 FZR 4012-B...
  • Page 6 FZR 4012-B...

  • Page 7: Table Of Contents

    Table of contents Gasoline garden mower OPERATION MANUAL Thank you for your purchase of our garden gasoline rotational mower. Before begin- ning to use it, please, read this operation manual carefully and keep it for the case of a further use. TABLE OF CONTENTS APPENDIX OF FIGURES ........................

  • Page 8: General Safety Instructions

    Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZR 4012-B...

  • Page 9: Explanation For Instruction Plates On The Machine

    Explanation for instruction plates on the machine 2. EXPLANATION FOR INSTRUCTION PLATES ON THE MACHINE Before putting into operation, please, read the operation manual carefully. Keep other persons out of the working area. Warning! Rotating knives! Protect yourself against risk of limb injury. Toxic gases emissions.

  • Page 10: Machine Description And Delivery Content

    Insert the metal frame into the collection basket and fix (Fig. 2) 4 in 1 Introduction: Rear spitting with grass collection (Fig. 3) Remove the mulching blind flange (Fig. 7) and fasten the grass collection basket on its place (Fig. 6). FZR 4012-B...

  • Page 11: Safety Instructions

    Machine assembly | Safety instructions | Operation Mulching (Fig. 4) When mulching is required, fix the mulching blind flange before starting-up the machine (Fig. 7) Rear spitting without grass collection into the basket (Fig. 5) Fix the mulching blind flange (Fig. 7) and close the cover plate on the side grass spitting. Mulching blind flange (Fig.

  • Page 12: Gearbox

    Never let the mower run without an operator; if you leave the mower, switch the engine off. When starting, never lift the rear part of the mower up and never draw your limbs near the bogie or into the opening for rear grass spitting while the engine is running. Never change engine speed setup. FZR 4012-B...

  • Page 13: Maintenance

    Safety instructions | Maintenance As for the mowers with a travel, release the travel before starting-up the engine. Never carry the mower over while the engine is running. Stop the engine and disconnect the spark plug in following cases: - before performing any activity under the mowing cover or under the opening for rear grass spitting.
  • Page 14 If the knife hits an obstacle hardly, stop the mower and transport it to an authorized service station. KNIFE: The knife is made of pressed steel. To achieve as good mowing as possible, grind FZR 4012-B...
  • Page 15 Maintenance the knife regularly, approximately after every 25 hours of operation. Make sure the knife is always counterbalanced well. For this purpose, insert a small iron axis (of 2-3mm diameter) into the central opening of the knife. If the knife is balanced properly, the axis is maintained in the horizontal position.

  • Page 16: Technical Data

    Height setup: ..........................Central height setup Mowing width: ..............................53 cm Wheel spacing: ........................1 78 mm (front wheel) ..........................254 mm (rear wheel) Wheel width: ..............................50 mm Collection basket capacity: ..........................60 l Bogie: ..................................steel Declared noise level: .............................98dB(A) Netto/brutto weight: ..........................36kg/38kg FZR 4012-B...

  • Page 17: Disposal

    Disposal 11. DISPOSAL INSTRUCTIONS AND INFORMATION ON USED PACKAGE DISPOSAL Put the used packaging material to the place designated for waste disposal by a municipality. The machine and its accessories are made of various materials, e.g. of metal and plastics. Hand-over damaged components to sorted waste. Get yourselves informed at a respective authority.
