Summary of Contents for Fieldmann FZR 4001-B

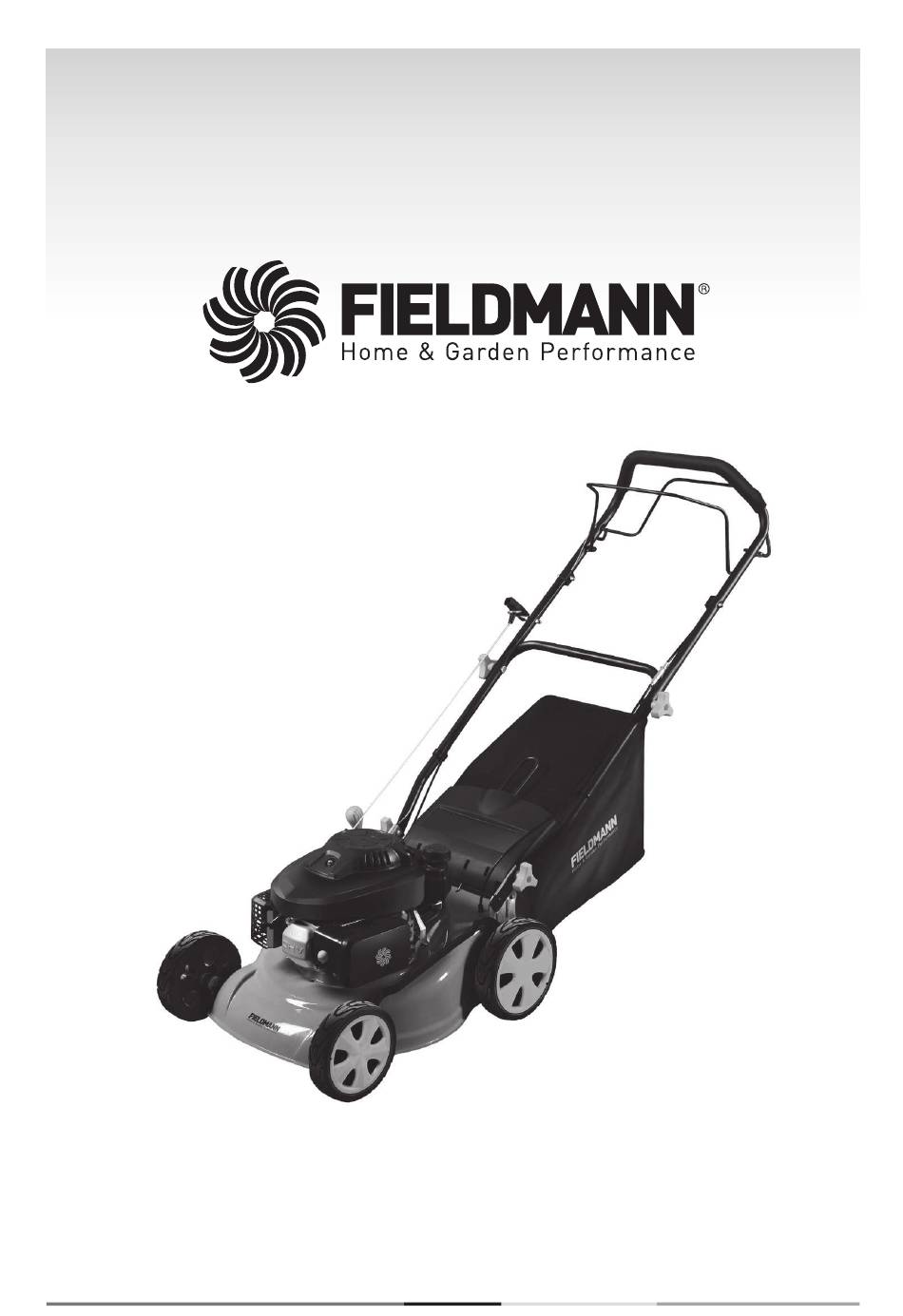

  • Page 1 FZR 4001-B...
  • Page 3 800ml 350ml FZR 4001-B...
  • Page 5 FZR 4001-B...

  • Page 6: Table Of Contents

    Table of contents Gasoline garden mower OPERATION MANUAL Thank you for your purchase of our garden gasoline rotational mower. Before begin- ning to use it, please, read this operation manual carefully and keep it for the case of a further use. TABLE OF CONTENTS APPENDIX OF FIGURES ........................

  • Page 7: General Safety Instructions

    Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZR 4001-B...

  • Page 8: Explanation For Instruction Plates On The Machine

    Explanation for instruction plates on the machine 2. EXPLANATION FOR INSTRUCTION PLATES ON THE MACHINE Before putting into operation, please, read the operation manual carefully. Keep other persons out of the working area. Warning! Rotating knives! Protect yourself against risk of limb injury. Toxic gases emissions.

  • Page 9: Machine Description And Delivery Content

    Mount the upper and bottom part of the handle with the help of two attached bolts and plastic nuts. Fit the starter lever on the right side of the handle and fasten the cable with the help of a plastic clamp. Anchor the starter lever cable into the supporting plastic clamps on the handle. FZR 4001-B...

  • Page 10: Safety Instructions

    Machine assembly | Safety instructions | Operation | Gearbox | Safety instructions Setup of mowing height (Fig.5) Moving the lever of mowing height central setup you can opt for 6 mowing height positions. 5. SAFETY INSTRUCTIONS (Fig.6) Use the mower always with the collection basket or the set deflector. Switch-off the engine before emptying the collection basket or changing the mowing height.
  • Page 11 - If a collision with a foreign object occurred, stop the engine and check the mower carefully to exclude a possibility of damage. In a case of damage, transport the mower to a specialized service station in order to get it repaired. FZR 4001-B...

  • Page 12: Maintenance

    Safety instructions | Maintenance WARNING! After switching-off the engine, the mowing knife is rotating on for several seconds. - In a case of abnormal vibrations of the mower (find-out and ensure removal of the vibration cause immediately). - In order to ensure safe operation, check proper tightening of pins, bolts and nuts in the mower regularly.
  • Page 13 When installing the knives, make sure that cutting edges point to the direction of the engine rotation. The knife mounting screw must be tightened by 3.7 K gm (37Nm) torque with the help of a torque spanner.(Fig. 10 and 11). FZR 4001-B...

  • Page 14: Technical Data

    Maintenance | Technical data WARNING! Use only genuine original spare parts. Low-quality spare parts may cause serious damage to the mower and endanger your safety. Service In the case you find-out any defect after having purchased the product, contact the service department.

  • Page 15: Fzr 4001 - B Mower Layout

    FAST ČR, a.s., Černokostelecká 1621, 251 01 Říčany u Prahy, tel.: 323204111, declares obligatorily that Fieldmann FZR 4001 - B gasoline mower (year of manufacture is marked on the type plate and is followed by the machine serial number) conforms to regulations of the COUNCIL DIRECTIVES: EC no.

  • Page 16: Disposal

    Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION ON USED PACKAGE DISPOSAL Put the used packaging material to the place designated for waste disposal by a municipality. The machine and its accessories are made of various materials, e.g. of metal and plastics. Hand-over damaged components to sorted waste. Get yourselves informed at a respective authority.
