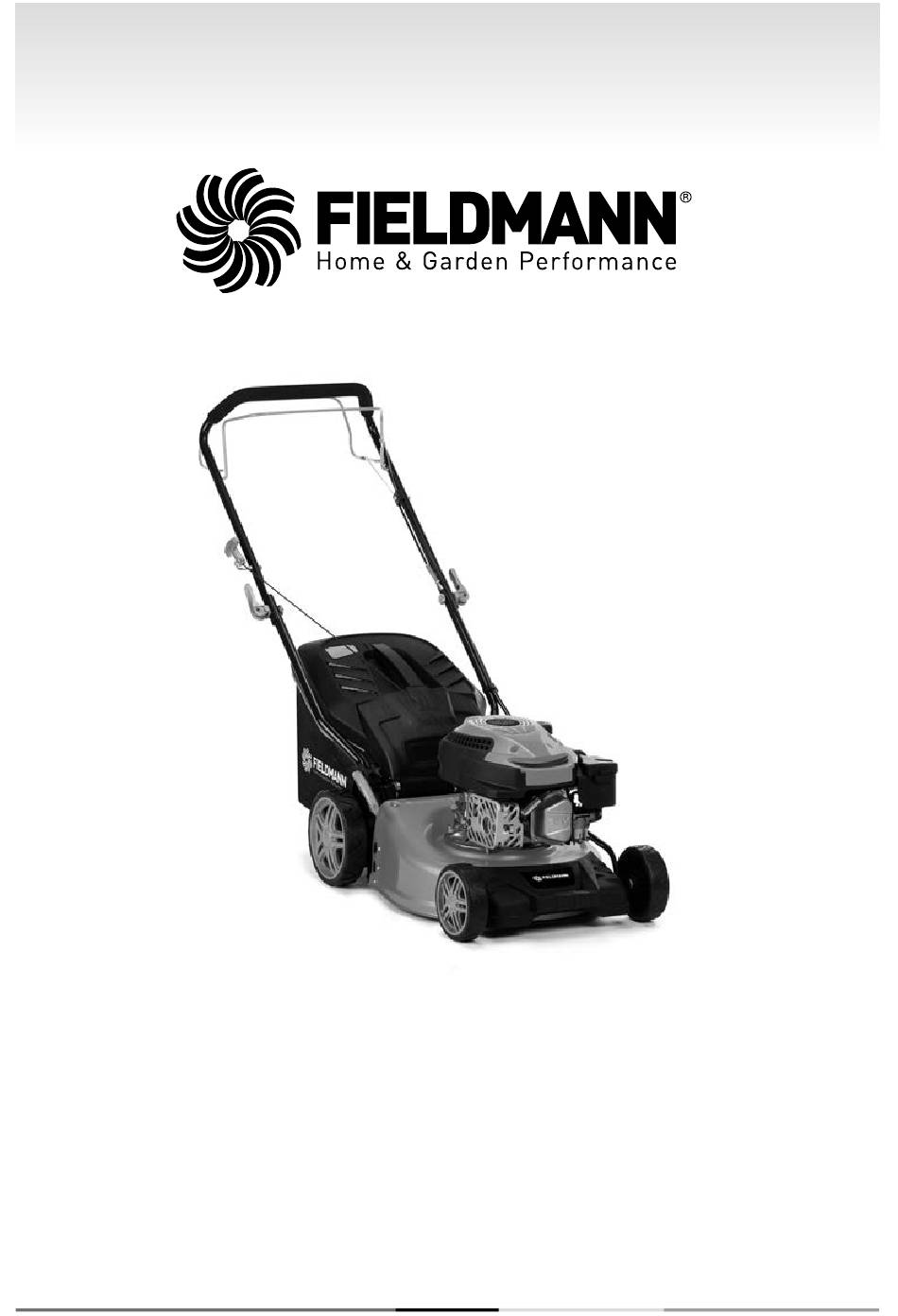

- Page 1 FZR 4210 B...
- Page 2 English ........................................3 - 20 Čeština........................................21 - 38 Slovenština ......................................39 - 56 Magyarul ......................................57 - 74 Polski .........................................75 - 98 FZR 4210 B...
-
Page 3: Table Of Contents
Table of Contents Petrol Lawnmower USER’S MANUAL Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety notice ............................4 Packaging ..................................4 User’s Manual ................................4... -
Page 4: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 4210 B... -
Page 5: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs. Emission of toxic gasses. - Page 6 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely fl ammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 4210 B...
-
Page 7: Description Of The Lawnmower
Description of the lawnmower | Assembly/Preparation 3. DESCRIPTION OF THE LAWNMOWER Fig. 1 1. Travel lever 2. Start / brake lever 3. Top part of the handle 4. Screws with wing nuts 5. Bottom part of the handle 6. Air fi lter cover 7. -
Page 8: Assembling The Lawnmower
2. Attach the top part of the handle (Fig. 1 – point 3) to the bottom part of the handle (Fig. 1 – point 5) using the included screws with the quick coupler and wing nuts (Fig.2b). Fig. 2b Fig. 2a FZR 4210 B... -
Page 9: Before Starting The Lawnmower
Assembling the lawnmower | Before starting the lawnmower 2. ASSEMBLING THE GRASS CATCHER Secure the plastic hooks at the end of the textile part of the grass catcher into the steel frame (fi g. 4). Fig. 4 IMPORTANT NOTICE: The grass catcher is equipped with a full indicator. It is a plastic fl ap at the rear of the grass catcher. -
Page 10: Adding Fuel
Caution! A small amount of smoke may be emitted when the engine is started up for the fi rst time as the protective layers in the engine are burnt off. This is completely normal and does not constitute a problem. FZR 4210 B... -
Page 11: Controlling Travel
Controlling and operating the lawnmower CONTROLLING TRAVEL The travel is controlled using the travel lever (Fig. 7 – point 1). When the lever is pulled to the handle, the lawnmower will start moving. To stop, release the lever. This lawnmower has one constant speed. Fig. -
Page 12: Mulching
If you wish to replace the mowing blade, remove the bolt (Fig. 10). Perform the installation according to the provided picture. Tighten the screw. The tightening torque is 40 Nm. When replacing the the blade, replace the fastening bolt also. Fig. 10 FZR 4210 B... -
Page 13: Changing The Motor Oil
Controlling and operating the lawnmower | Safety instructions CHANGING THE MOTOR OIL Caution! For this task, we recommend that you contact an authorised service centre. The drain plug is located under the engine (Fig. 11 – point 1). Place a suitable container for catching the used oil under the engine and remove the plug. -
Page 14: Instructions For Use
If fuel is spilled, do not start the engine. Take the lawnmower away from the location where the fuel was spilled and take care to avoid possible ignition. Continue with work only after the spilled fuel has evaporated and the fuel fumes have dissipated; FZR 4210 B... -
Page 15: Maintenance
Maintenance After adding fuel, securely tighten the fuel tank cap and the cap on the fuel canister. ATTENTION: Before carrying out maintenance or repairs, stop the engine and disconnect the spark plug. 9. MAINTENANCE LAWN CARE Various forms of care are required depending on the type of grass area. Therefore, always read the instructions included on seed packages with respect to the mowing height for the growing conditions in the given locality. -
Page 16: Warranty Does Not Cover
Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZR 4210 B... -
Page 17: Technical Specifications
Technical specifi cations 10. TECHNICAL SPECIFICATIONS Engine RATO RV125-S Engine type OHV, air cooled, 4-stroke Rated power 1.9 kW Engine rpm 2900 rpm Displacement 127 cm Starting Pull cord Fuel tank volume 1.0 litres Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0.5 l Recommended oil... -
Page 18: Regular Maintenance Schedule
X(*) General preventative X(*) inspection *entrust this maintenance to an authorized service centre Caution! If the mower is used in arduous or dusty conditions, change the oil and clean the air fi lter at more frequent intervals. FZR 4210 B... -
Page 19: Detection And Troubleshooting
Detection and troubleshooting 12. DETECTION AND TROUBLESHOOTING Problem Probable cause Procedures Choke valve damper in wrong position Move the choke lever to the correct position The fuel tank is empty Fill the fuel tank with fuel The air fi lter is dirty Clean the air fi... -
Page 20: Disposal
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. Translation of the original user’s manual. FZR 4210 B... - Page 22 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon ruku trvání 24 měsíců od převzetí výrobku kupu 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
- Page 23 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 24 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
