PDPD 163 SU
INSTRUCTION MANUAL
PORTAbLe 7" DVD PLAyeR wITh 2 SCReeNS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDPD 163 SU and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai PDPD 163 SU

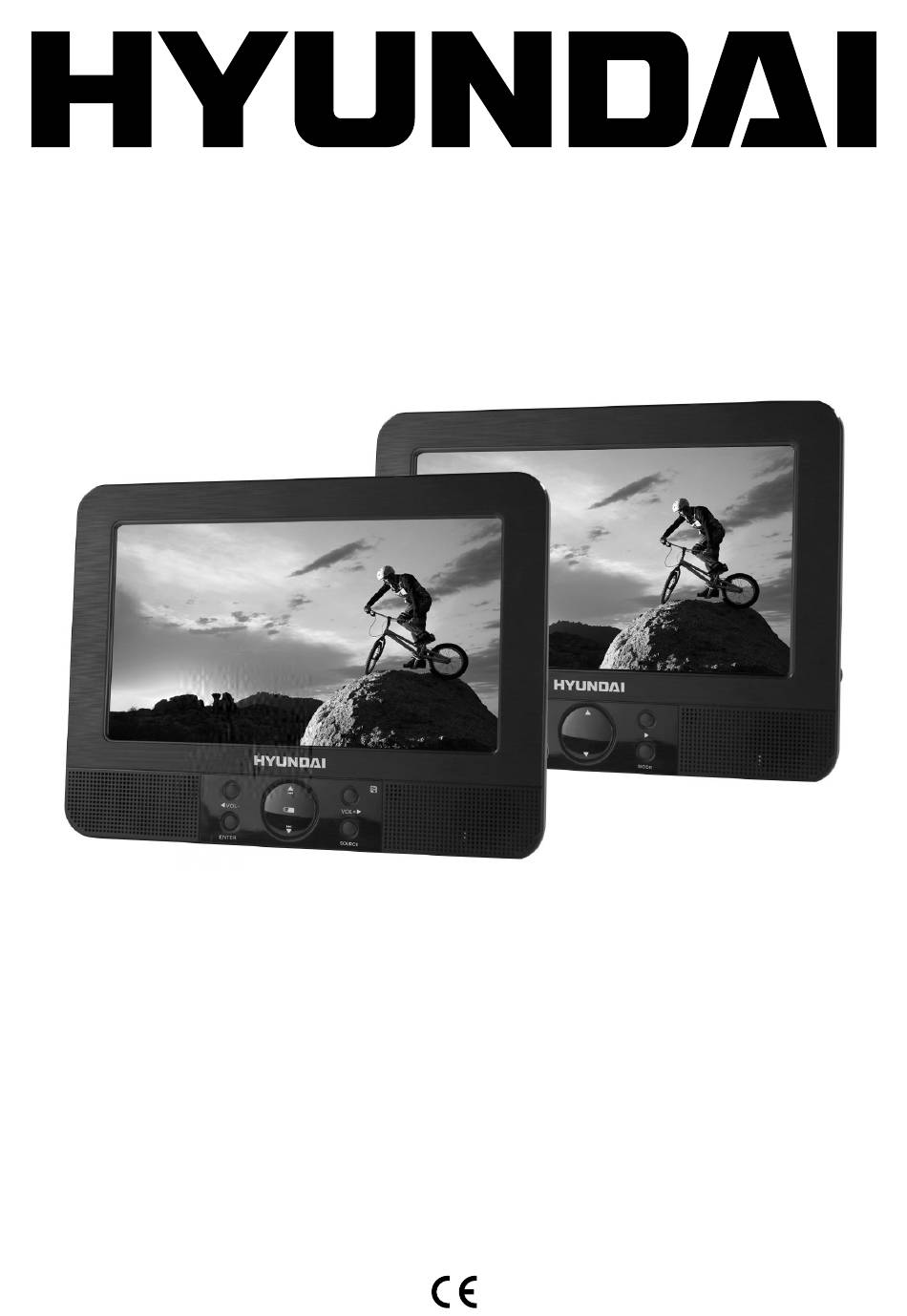

  • Page 1 PDPD 163 SU INSTRUCTION MANUAL PORTAbLe 7” DVD PLAyeR wITh 2 SCReeNS...
  • Page 2: Table Of Contents

    TAbLe Of CONTeNTS Table of Contents ........................ 2 Important Safety Instructions ..................... 2 Safety Precautions ......................3 Identification of Controls ....................4 Remote control unit ....................... 5 SeTUP Menu Setting ......................6 General Page ........................6 Audio Setup Page ........................7 Video Setup Page ........................
  • Page 3: Safety Precautions

    SAfeTy PReCAUTIONS warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. warning: To prevent direct exposure to laser beam,do not open the enclosure. Visible laser radiation when open.
  • Page 4: Identification Of Controls

    IDeNTIfICATION Of CONTROLS MASTeR TfT SCReeN SLAVeR TfT SCReeN 1) SD/MS/MMC 11) SOURCE 2) POWER ON/OFF 12) UP/DOWN 3) HEADPHONE OUT JACKS 13) MODE 4) VIDEO/AUDIO OUT 14) LEFT/RIGHT 5) DIGITAL AUDIO OUT (COAXIAL) 15) BACK LIGHT 6) USB 16) POWER ON/OFF 7) DC OUT 17) HEADPHONE OUT JACKS 8) DC IN 9-12V...
  • Page 5: Remote Control Unit

    IDeNTIfICATION Of CONTROLS Remote control unit 1) SOURCe DVD/CARD/USB. 2) MUTe Disable Audio output. 3) 0-9 NUMbeR bUTTON Selects numbered items in a menu. 4) DISPLAy To display the playtime and status information. 5) 10+ bUTTON In order to select a track 10 or greater, first press 10+, For example;...
  • Page 6: Setup Menu Setting

    20) TITLe Return to DVD title menu 21) eNTeR Confirms menu selection. 22) SeTUP Accesses or removes setup menu. 23) VOL- Adjust volume 24) RePeAT Press REPEAT during playback to select a desired repeat mode. : you can play select repeat chapter/title/off. : you can select repeat single/all/off.
  • Page 7: Audio Setup Page

    • General Setup Page • TV DISPLAy: selects the aspect ratio of the playback picture. 4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen. 4:3 LeTTeRbOX: if you have a normal TV.
  • Page 8: Video Setup Page

    • Digital Output The function is used to select the SPDIF Output:SPDIF Off, SPDIF/RAW, SPDIF/PCM.  SPDIf Off: Turns off the SPDIF output.  SPDIf/RAw: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver.  SPDIf/PCM: Only if your receiver is not capable of decoding multi-channel audio. •...
  • Page 9: Password Setup Page

    PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format. NTSC -Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format.
  • Page 10: Parameters And Specifications

    Note: If the password has been changed, the parentaland disc lock code will also be changed. The default password (1369) is always active even the password has been changed. PARAMeTeRS AND SPeCIfICATIONS bATTeRy PARAMeTeRS Battery Specifications: Output: 7.4 V Storage and work circumstances: 1.
  • Page 11 wARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don’t use it or before a revision. There aren’t any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service.
