Summary of Contents for Hyundai PDP 933SU DVBT

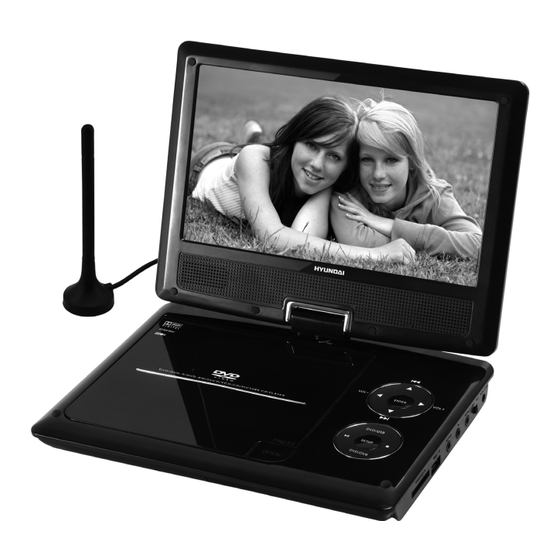

- Page 1 PDP 933SU DVBT INSTRUCTION MANUAL PORTABLE DVD...
-
Page 2: Table Of Contents
TABLE Of CONTENTS Table of Contents......................... 2 Important Safety Instructions ....................2 Safety Precautions ......................3 Identification of Controls ...................... 4 - 6 SETUP Menu Setting ......................7 - 9 SETUP Menu Introduction ....................9 Parameters and specifications .................... 11 Battery Parameters...................... -
Page 3: Safety Precautions
SAfETy PRECAUTIONS Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure. Warning: To prevent direct exposure to laser beam,do not open the enclosure. Visible laser radiation when open. -
Page 4: Identification Of Controls
IDENTIfICATION Of CONTROLS Main Unit 1) ▲/ up/prev ▼/ down/next ◄/ VOL - left/VOL- ►/ VOL+ right/VOL+ short press is up/dowm/left/right long press is prev/next/ VOL-/VOL+ 2) ENTER 3) DVB/USB 4) PLAY/PAUSE STOP 5) SETUP 6) DVD/DVB 7) SD/MMC/MS 8) USB 9) AV OUT... - Page 5 IDENTIfICATION Of CONTROLS Remote control unit 1) PLAy/PAUSE () MUTE SOURCE DVD/DVB Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback. 2) STOP () When this buttom is pressed once, the unit ENTER SLOW records the stopped point,from where playback will resume if ENTER is pressed after wards.
- Page 6 14) VOL + Adjust VOLUME. 15) DISPLAy To display the playtime and status information. 16) AUDIO : Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable. : Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).
-
Page 7: Setup Menu Setting
SETUP MENU SETTING GENERAL SETUP PAGE Press SETUP button to get the setup menu. Use direction buttons to select the preferred item. After finishing settings, press SETUP again to normal display. • TV System Selecting the color system that corresponds to your TV when AV output. This DVD Player is compatible with both NTSC and PAL. - Page 8 LANGUAGE SETUP PAGE LANGUAGE SETUP OSD LANGUAGE ENGLISH GERMAN AUDIO LANGUAGE SPANISH ENGLISH FRENCH SUBTITLE LANGUAGE GERMAN PROTUGUESE SPANISH ENGLISH ITALIAN MENU LANGUAGE FRENCH GERMAN ENGLISH PROTUGUESE SPANISH FONT SETUP GERMAN ITALIAN FRENCH SPANISH PROTUGUESE CENTRAL EU FRENCH ITALIAN CYRILLIC PROTUGUESE WESTERN EU ITALIAN...
-
Page 9: Setup Menu Introduction
SPEAKER SETUP SPEAKER SETUP DOWNMIX LT/RT STEREO • LT/RT: When playing a 5.1ch DVD disc, the LS/RS/Center channel audio will output through both L and R channel. STEREO: When playing a 5.1ch DVD disc, the LS channel audio will output only through L channel, RS channel audio will output only through R channel, Center channel audio will output through both L and R channel. - Page 10 • System Config TV Setting: Selects TV system and TV type. Video Setting: Change the video setting: brightness, contrast, hue, saturation. Audio Setting: Selects coaxial digital out mode: OFF, RAW, PCM. Language: Selects OSD language. Parent Control: Change password and set channel lock.Default password is 0000. Time Setting: Set time zone.
-
Page 11: Parameters And Specifications
EPG (ELECTRONIC PROGRAM GUIDE) The DVB-T player provides you an Electronic Program Guide to take a fast preview of live broadcasts from each TV channel in advance of watching it in full screen. 1) Press EPG. An Electronic Program Guide Menu appears on the screen, with a TV channel menu to the left and corresponding live broadcast of the selected program to the right 2) Press ... - Page 12 Storage and work circumstances: 1. Storage circumstances Temperature Humidity 6 months -20°C ~ +45°C 65 ± 20% 1 week -20°C ~ +65°C 65 ± 20% 2. Work circumstances Temperature Humidity Standard charge 0°C ~ +45°C 65 ± 20% Standard discharge -20°C ~ +65°C 65 ±...
- Page 13 Notes:...
- Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Licensed by Hyundai Corporation, Korea...
