CONGRATULATIONS on your choice of an OnGuard
Products Inc. This booklet contains the information necessary for installing, using, and maintaining your alarm
system. If any questions arise, contact your installation dealer or CrimeStopper Security Products Inc. at the
Tech Support number below.
*IMPORTANT INFORMATION: Primary and Optional Features:
-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the
Siren, L.E.D., +12V Power, Ground, Door pin, Flashing lights Override/Program/Valet Button etc.
-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These
features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door
Locks, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.
This installation book is designed for the installer or individual with an existing understanding of automotive
electrical systems, along with the ability to test and connect wires for proper operation. To ease installation,
we suggest that you READ THIS MANUAL before beginning your installation. This book is provided as a
GENERAL GUIDLINE and the information contained herein may differ from your vehicle.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
(800) 998-6880
REV. B 4. 2006

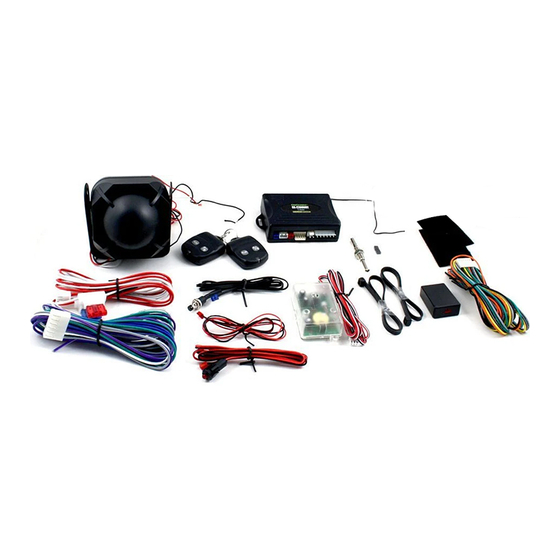

CS-2200WST
WIRELESS SIREN / HOOD / TRUNK SYSTEM
INSTALLATION & OPERATING INSTRUCTIONS
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: 1) This device may not cause interference,
and (2) this device must accept any interference that may be received,
including interference that may cause undesired operation.
manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
INTRODUCTION
TM
Vehicle Security System by CrimeStopper Security
The
Advertisement
Table of Contents
Related Manuals for CrimeStopper OnGuard CS-2200WST
Summary of Contents for CrimeStopper OnGuard CS-2200WST
- Page 1 CONGRATULATIONS on your choice of an OnGuard Products Inc. This booklet contains the information necessary for installing, using, and maintaining your alarm system. If any questions arise, contact your installation dealer or CrimeStopper Security Products Inc. at the Tech Support number below.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Cautions & Warnings…….……………………………….……………………………………………2 Control Module & Component Mounting……………...……………………..……………………….…………..3 Wiring……..……………………………………………………………………………………..……………….…….3-4 Power Door Lock Wiring……………………………………………………….………………………….…..……5-6 Power Door Lock Diagrams…………………………………………………………………………………………7 Operating Instructions………………………..…………………………………….……………………..……….8-10 Car Jack Protection Features…………..……………………………………………...…………………….……..11 Programming, Transmitter Programming…….………………………………………………………………11-12 System Wiring Diagram………………………………………………………………...……………..……………13 INSTALLATION CAUTIONS & WARNINGS BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, ENGINE COMPUTERS, BATTERY etc.). -
Page 3: Control Module & Component Mounting
CONTROL MODULE & COMPONENT MOUNTING DO NOT Mount the control unit in the engine compartment or where the control unit or wiring harness where they can become entangled with moving parts such as brake/gas/clutch pedals, or the steering column! The alarm control module should be mounted in a concealed location. The Placement of the module will affect the distance from which the remote transmitter can control the unit. -
Page 4: Wiring
WIRING BLACK/WHITE WIRE: (-) DOME LIGHT ILLUMINATION OUTPUT (Optional, requires a relay) Connect Black/White wire to terminal 85 of the relay (relay not included). Connect terminal 86 of the relay to +12 Volt constant power. For POSITIVE dome light circuits, connect terminal 87 to fused +12V constant. For NEGATIVE dome light circuits, connect terminal 87 to chassis ground. -
Page 5: Power Door Lock Wiring
RED WIRE: +12V POWER INPUT (15 AMP FUSE) Connect to +12Volt source with supplied fuse & holder. Recommended location for this connection is at the vehicle battery positive terminal. 2 PIN PLUG (BLUE): PROGRAM/OVERRIDE PUSHBUTTON 2 PIN PLUG (RED): LED INDICATOR (RED FLASHING LIGHT) 3 PIN SENSOR PLUG: White wire: Negative trigger, Black wire: sensor ground, Red wire: sensor +12V power 6 PIN DOOR LOCK PLUG 18 GA. - Page 6 POWER DOOR LOCK WIRING REVERSE POLARITY: Many Ford / Lincoln / Mercury / Dodge / Chrysler / Plymouth and early 90s GM Trucks Reverse polarity systems use no relays, but instead the door lock/unlock motors are controlled directly from the lock and unlock switches in the door. The lock and unlock wires rest at Negative Ground when not in use. When the lock or unlock button is pressed, one of the circuits is “lifted”...
-
Page 7: Power Door Lock Diagrams
POWER DOOR LOCK DIAGRAMS NEGATIVE TRIGGER DOORLOCK WIRING GRAY WHITE VIOLET BLUE GREEN VIOLET/WHITE LOCK WIRE UNLOCK WIRE REVERSE POLARITY DOOR LOCK WIRING GRAY WHITE VIOLET BLUE GREEN VIOLET/WHITE +12V FUSED POSITIVE TRIGGER DOORLOCK WIRING GRAY NOT USED WHITE VIOLET BLUE GREEN VIOLET/WHITE... -
Page 8: Operating Instructions
ALARM OPERATION CONDITION QUICK CHART: SIREN PARKING LIGHT FLASH CHIRPS 1 Siren Chirp 1 Parking Light Flash 2 Siren Chirp 2 Parking Light Flash 3 Siren Chirp 3 Parking Light Flash 4 Siren Chirp 4 Parking Light Flash 5 Siren Chirp 5 Parking Light Flash ACTIVE ARMING To arm the alarm and lock the doors, press the #1 Button (Lock/Unlock Symbol) on the transmitter. - Page 9 OPERATING INSTRUCTIONS REMOTE PANIC PROTECTION To sound the alarm upon command (panic), press and hold Button #1 for at least 4 seconds until the siren sounds. Press Button #1 again to reset panic mode. TRUNK/HATCH POP (REMOTE AUX. OUTPUT 1, OPTIONAL) (300mA) To pop the trunk (if optional feature is installed), press Button #2 twice within 2 seconds on the transmitter.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS OPEN ZONE ALERT & BYPASS If the system detects a faulty or open zone (Door left open) when the system is ACTIVELY ARMED, the siren will chirp 3 times along with 3 light flashes. The faulty zone will be automatically bypassed. CAR LOCATING When the system is armed, press and hold Button #2 for 3 seconds, 5 siren chirps, and 5 parking light flashes. -
Page 11: Car Jack Protection Features
ANTI HIJACK When the Ignition is on (running), press button #1 for 3 seconds. Parking lights will flash TWICE to confirm the Carjack countdown sequence. 40 Seconds later, the unit will begin a Carjack Cycle consisting of 20 seconds of warning chirps turning into a full system activation with siren/flashing light pulses for up to 5 min. To reset press button #1 again or turn ignition on. - Page 12 ACTIVE RE-ARM WITH LOCK (ENABLE/DISABLE) 1. The system must in the disarmed state. 2. Ignition key must be in the ON position. 3. Press the valet button 4 times and hold it ON at the 4 After 3 seconds, the parking light will flash 3 times indicating that it is disabled (default) and 4 times indicating that it is enabled.
- Page 14 Phone (800) 998-6880 ONLINE TECHNICAL SUPPORT FAX (805) 581-9500 www.crimestopper.com/techweb03.html © 2006Crimestopper Security Products...
