EX30-IP
2.
Mounting the unit
2.1

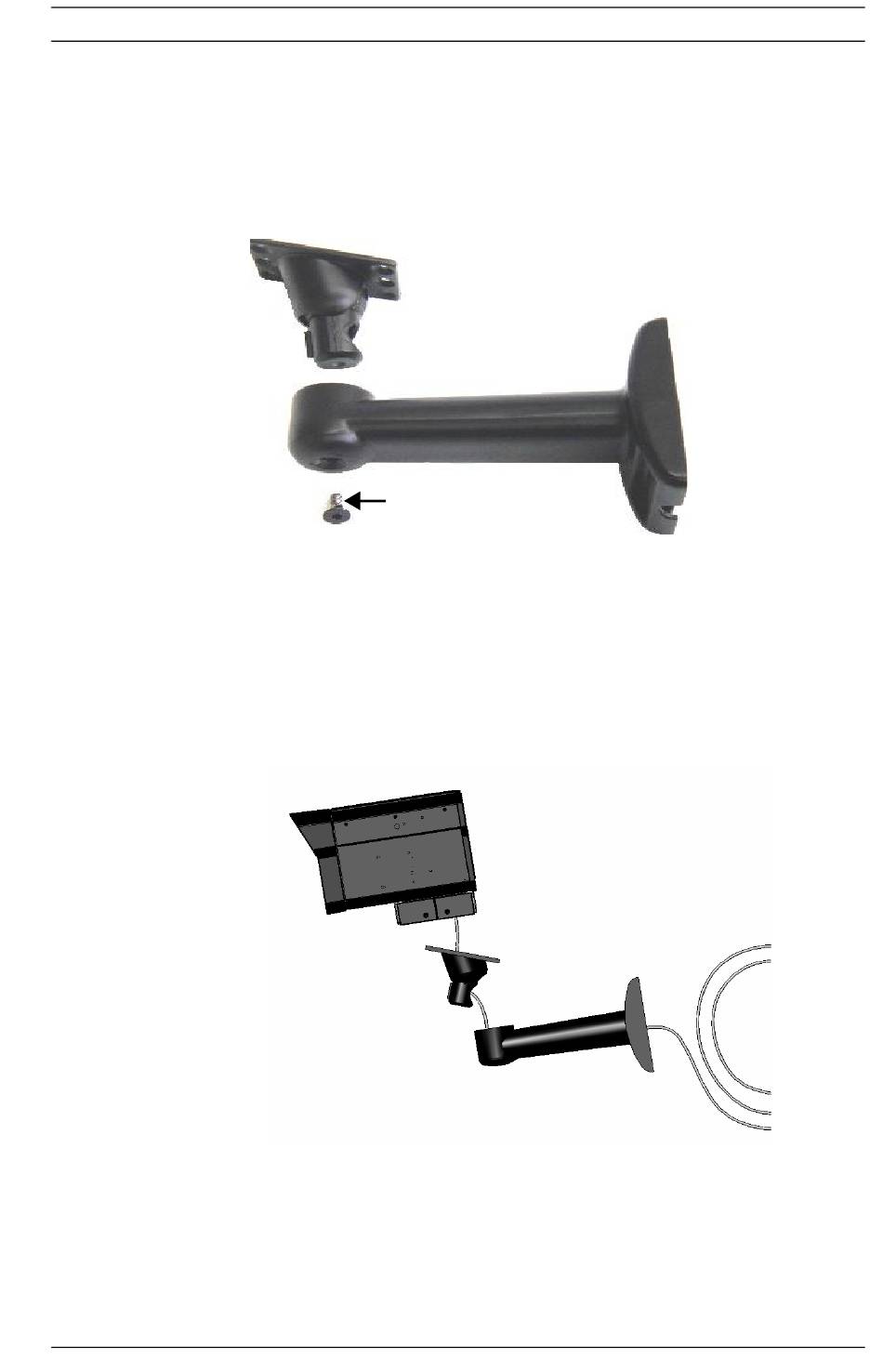

Mounting bracket preparation
1.) Use the supplied Allen Key to remove the setscrew from the
supplied mounting bracket.
Separate the two sections of the mounting bracket.
2.)
2.2
Cable / Bracket insertion
1.) Carefully feed the Power and Ethernet cables through both
sections of the mounting bracket.
2.) Make sure the cables are not kinked, chafed, or split during this
procedure
Bosch Security Systems
SET SCREW
.
Quick Install
| en 5
MAN30IPB Rev.0
