EX30-IP
Camera Setup:
To determine if the camera is receiving a picture:
1.) Make sure the supplied software is installed in your PC/laptop
computer (For Camera Configuration and Software Viewing
Setup, refer to full version Installation Manual available on the
enclosed CD-ROM -Section 4).
2.) Connect the camera to the PC/laptop and power up the camera.
3.) Launch Configuration Manager or web-browser. Refer to
2. 5 Camera lens adjustments and window
selection
For optimum picture quality, the camera lens should be as close as
possible to the inside face of the viewing window, without touching.
For focus adjustment follow the steps below.
1.) Loosen the four bolts from the extrusion
2.) Remove the faceplate, window and the lens foam, set aside.
Make sure the photocell is not dislodged.
3.) Perform the proper lens adjustments as per section 2.6

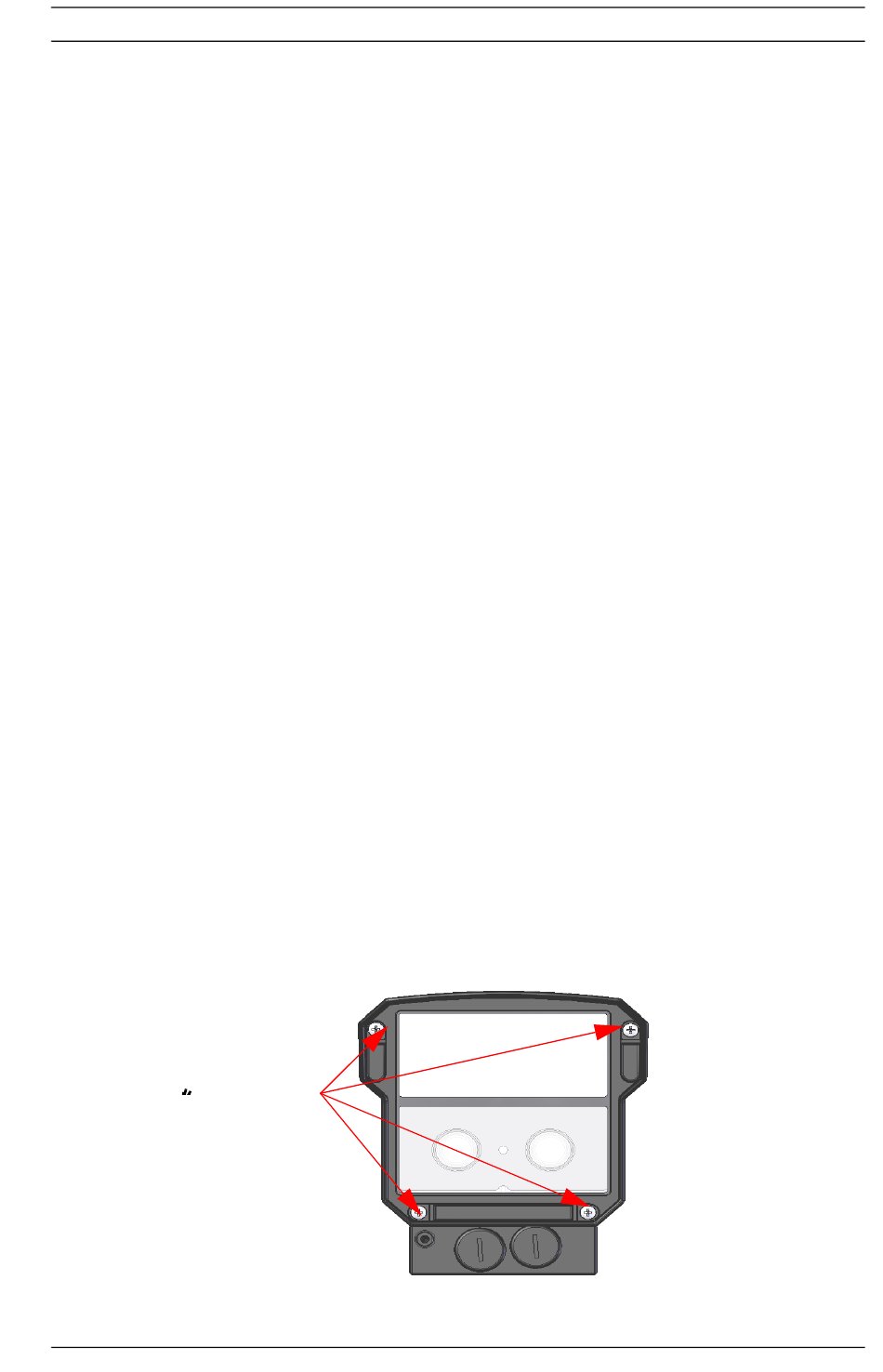

Loosen four bolts
Bosch Security Systems
Follow the prompts. See section 2 of full version Installation
Manual available on the enclosed CD-ROM for more detail.
Configuration Manager User Manual for information. Refer to
section 4 of full version Installation Manual available on the
enclosed CD-ROM for more detail on camera configuration via
web browser.
