2.3

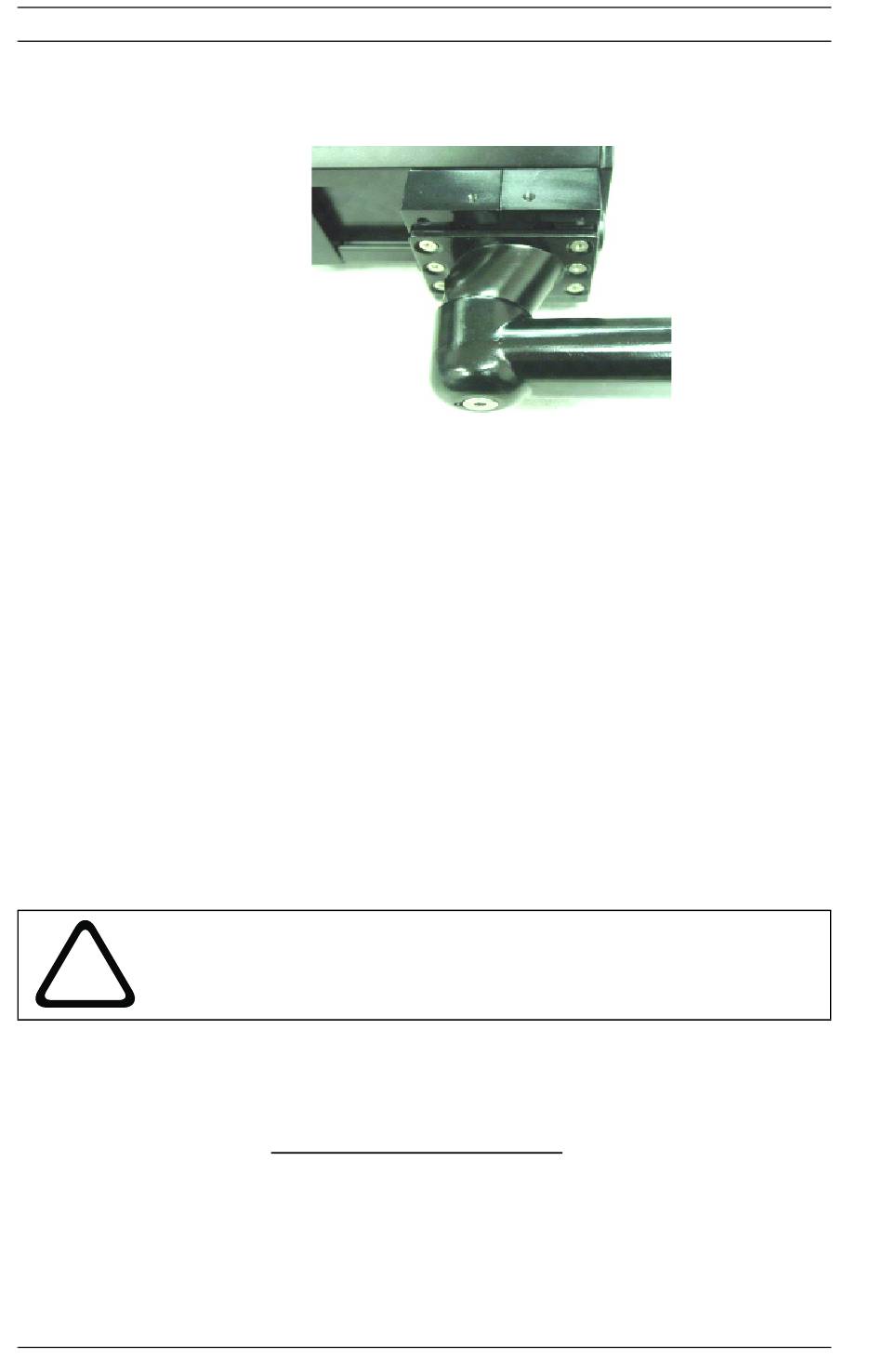

Mounting bracket attachment

1.) Attach the Mounting Bracket to the Camera's Mounting Block
using the six bolts supplied with the bracket
2.) Snug the two halves of the bracket together with the Allen head
3.) Tighten the setscrew enough so that the camera can be adjusted
4.) Note the angled part of the mounting bracket faces to the rear of
2.4 Camera: Mounting and setup:
Select a suitable location that protects the camera from accidental
damage, tampering and environmental conditions exceeding the
specifications of the camera to be mounted.
CAUTION! Ensure the selected location is protected from falling
!
objects, accidental contact with moving objects and unintentional
interference from personnel. Follow all applicable building codes.
These mounting guidelines should be followed:
1.) Locate the bracket such that it cannot be easily interfered with,
either intentionally or accidentally.
2.) Select a smooth, flat mounting surface to ensure proper sealing.
The surface must also be capable of supporting the combined
weight of the camera and mounting hardware under all expected
conditions of vibration and temperature. Camera performs best
mounted 3-6m off the ground.
3.) Secure all cabling.
Bosch Security Systems
set screw
for angle. Do not over-tighten.
the camera
