Vari-focal and "auto iris" control adjustment
Note: Use Infra-Red Pass filter to cover the lens during focusing to
simulate low light conditions on scene for correct 24-hour focusing.
For camera with manual iris lens, the camera should be focused with
i
the lens iris fully opened to simulate the worst possible depth of field.
Using a Infra-Red Pass filter will ensure the iris is fully open for cor-
rect setup and adjustment.
Note that statement above is applicable only for Day/Night or IR
version cameras.
1.) Loosen the lens set screws for focus/zoom adjustments
2.) The setscrew marked N ←→ ∞ is used for image focus
3.) The setscrew marked T←→ W is used for telephoto or
4.) Re-tighten the setscrews after focus adjustments have been
Bosch Security Systems
wide-angle settings.
completed.

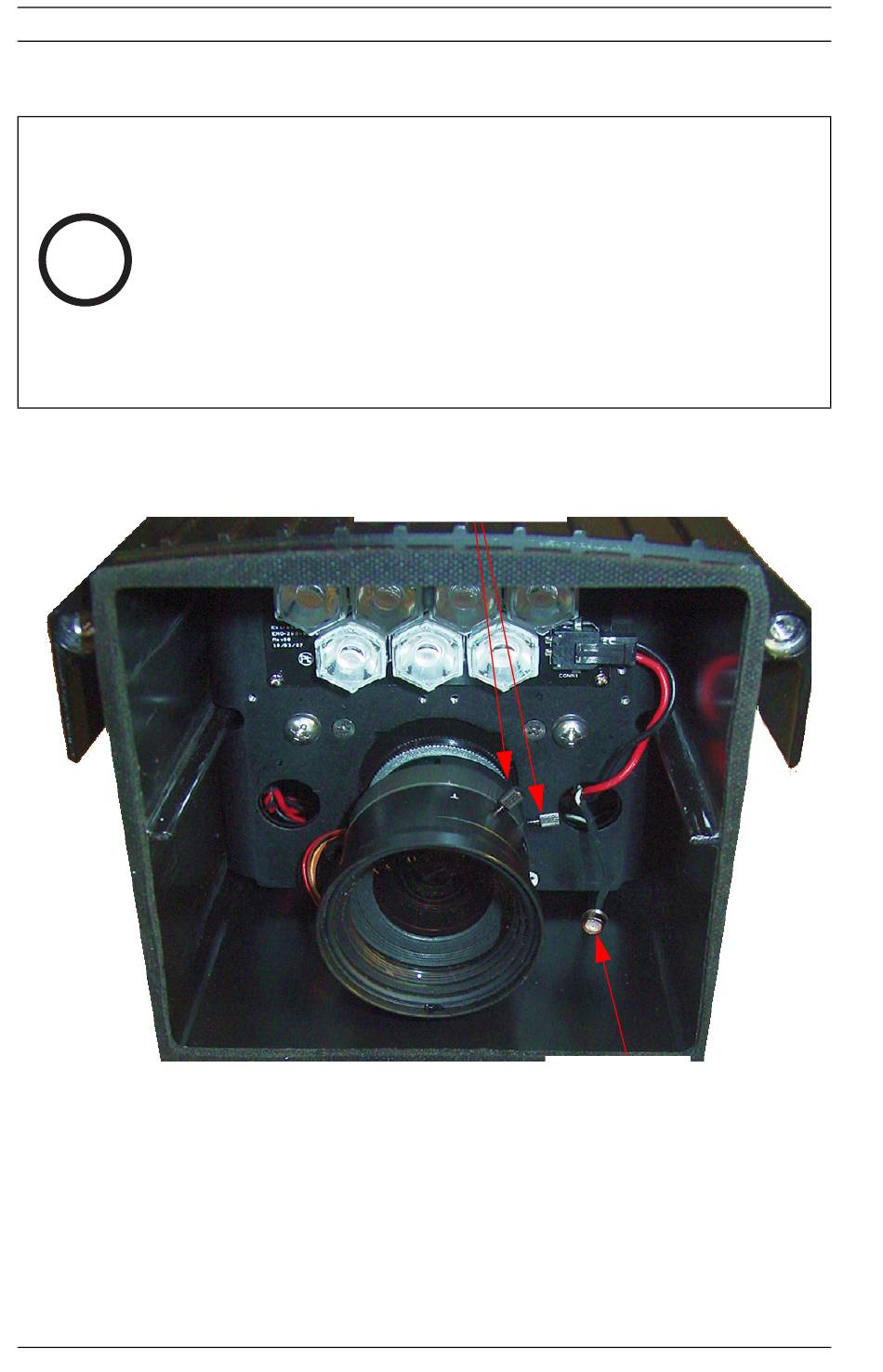

Set screws
Quick Install
photocell
Photocell
MAN30IPB Rev.0
EX30-IP
