Summary of Contents for Chiayo VICTORY 2000

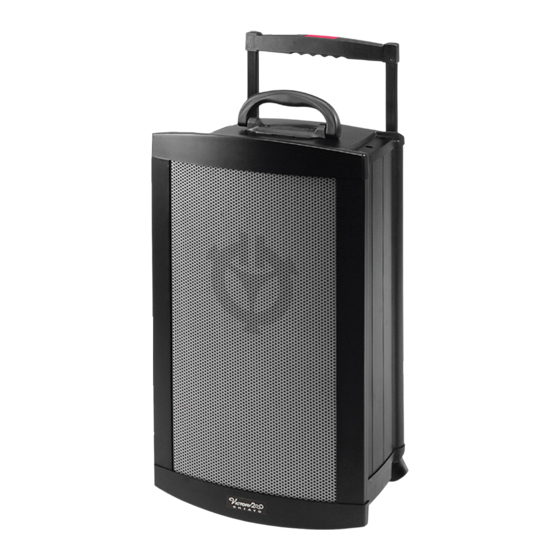

- Page 1 VICTORY 2000 Operation manual Portable Wireless PA System CHIAYO ELECTRONICS CO., LTD.
- Page 2 ⚫ Use only manufacturer authorized or recommended accessories. ⚫ Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful when using a cart to avoid injury from tip-over. ⚫ Unplug the product during an electrical strom or when unused for long periods of time.
- Page 3 Operation manual Warning Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions ⚫ Be sure to read the instructions in this section carefully before use. ⚫...
-
Page 4: Table Of Contents
3-1 Active audio link: VICTORY 2000 to VICTORY 2000 ............14 3-2 Active audio link: VICTORY 2000 to V-SLAVE ..............16 3-3 Wireless audio link: repeat all audio to linked VICTORY 2000 / V-SLAVE ...... 18 3-3-1 Parts and functions of RP-5100M ................18 3-3-2 Changing channels .................... -
Page 5: Instruction
The rear panel of these portable sound systems is divided into 2 sections: 1. Module compartment 2. Control Unit compartment Control unit compartment 1-1 In the box VICTORY 2000 amplifier 0~4 transmitters switching power supply (plug varies from country to country) (handheld/beltpack) operation manual 1-2 Optional related products ▍Modules &... -
Page 6: Parts And Functions Of Victory 2000
VICTORY 2000 Portable Wireless PA System 1-3 Parts and functions of VICTORY 2000 MIC/LINE input MIC/LINE MIC/LINE MIC/LINE input MIC/LINE ① MIC/LINE ② ① ① ② ② (combo) level switch level switch (combo) volume control volume control LINE OUT socket... -
Page 7: Parts And Functions Of Passive Companion Speaker V-Sp
Instruction 1-4 Parts and functions of passive companion speaker V-SP speaker input speaker output 1-5 Parts and functions of active companion powered speaker V-SLAVE audio link input audio link output MASTER volume control Fuse External speaker socket External speaker socket DC input V-SLAVE muted V-SLAVE not muted... -
Page 8: Charging The Battery
VICTORY 2000 Portable Wireless PA System 1-6 Charging the battery This amplifier uses either two lead-acid batteries. If the battery indicator turns solid RED, the battery might not be sustainable for long operation and needs to be charged. Battery low indicator... -
Page 9: Connection With External Audio Sources
Instruction 1-8 Connection with external audio sources WIRED MIC Sound control, e.g., AMPLIFIER DVD PLAYER volume and equalizer, of audio output from VICTORY 2000 is only operated on this external amplifier. ACTIVE SPEAKER PASSIVE SPEAKER ACTIVE SPEAKER... -
Page 10: Settings And Operations
VICTORY 2000 Portable Wireless PA System Settings and Operations 2-1 Using the wired microphone (MIC 1, MIC 2) Plug a wired microphone with a 6.3mm or XLR connector to MIC 1 or MIC 2. The nearby SPEECH/MUSIC switch filters out low frequencies from an audio signal. -
Page 11: Using The Wireless Receiver
Settings and Operations 2-2 Using the wireless receiver 2-2-1 Parts and functions Diversity A/B Transmitter battery RF signal meter Channel antenna power Audio signal meter IR sensor area SYNC Power switch / PWR/VOL volume control SET button IrDA synchronization Frequency DOWN button UP button button 2-2-2 Channel synchronization of the receiver and transmitter 10~30cm... -
Page 12: Channel Scanning
VICTORY 2000 Portable Wireless PA System 2-2-3 Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▼(down) or ▲(up) button to make Hold SET button until this icon... -
Page 13: Music Audio Input-Dvd Player (Line)
Settings and Operations 2-3 Music audio input- DVD player (LINE) Plug the RCA R/L audio cable to the LINE IN jacks. Turn on master POWER and then adjust LINE IN volume control to desired level. BASS / TREBLE equalizer (refer to P.13) can be adjusted individually. EQUALIZER... -
Page 14: Equalizer For Music
VICTORY 2000 Portable Wireless PA System 2-4 EQUALIZER for MUSIC EQUALIZER adjustment is actually used to increase or reduce the high/medium/low frequency component of the speaker's restored sound. It is so-called raising or attenuating TREBLE/BASS via frequency-specific volume knobs to improve human voices or make musical instruments’... -
Page 15: Application
Application 3-1 Active audio link: VICTORY 2000 to VICTORY 2000 VICTORY 2000 operates as the MASTER as well as companion unit in an audio link (wired) configuration. Connect one VICTORY 2000 after the other via the ACTIVE IN and ACTIVE OUT jacks. - Page 16 VICTORY 2000 Portable Wireless PA System Turn on master POWER of VICTORY 2000 and then adjust SLAVE volume control to desired level. The power of slave VICTORY 2000 will be automatically activated as soon as the master VICTORY 2000 is turned ON, regardless of whether its power switch is OFF or ON.
-
Page 17: Active Audio Link: Victory 2000 To V-Slave
Application 3-2 Active audio link: VICTORY 2000 to V-SLAVE VICTORY 2000 operates as the MASTER unit in an audio link (wired) configuration with active companion powered speakers V-SLAVE. Connect the VICTORY 2000 (master unit) and V-SLAVE (active companion powered speakers) via ACTIVE OUT and ACTIVE IN jacks. - Page 18 VICTORY 2000 Portable Wireless PA System BASS / TREBLE equalizer (refer to P.13) can be adjusted individually. EQUALIZER...
-
Page 19: Wireless Audio Link: Repeat All Audio To Linked Victory 2000 / V-Slave
3-3 Wireless audio link: repeat all audio to linked VICTORY 2000 / V-SLAVE VICTORY 2000 operates as the MASTER unit in a wireless audio link with other VICTORY 2000 or active companion powered speakers V-SLAVE. The repeater module RP-5100M of master VICTORY 2000 can transmit all audio signals, including wired/wireless microphone, music, instrument etc., to other units installed with receiver module. -
Page 20: Music Audio Input (Aux In)- Smart Phone / Tablet / Mp3 Player
VICTORY 2000 Portable Wireless PA System 3-3-3 Music audio input (AUX IN)- Smart phone / tablet / MP3 player Connect your device to the 3.5mm jack of AUX IN with a 3.5mm 3-pole stereo audio cable. Use a mini screw driver to adjust the volume of the input audio. - Page 21 IrDA receiver module COMPANION Turn on master POWER of VICTORY 2000 and EACH V-SLAVE and then adjust master volume control to a desired level. Turn on power of EACH V-SLAVE and then adjust the volume control to a desired level.
-
Page 22: More Extension
Portable Wireless PA System 3-4 More extension To reach wider coverage, the companion unit VICTORY 2000 / V-SLAVE can serve as SUB- MASTER to transmit signals to SUB-COMPANION units. Important: Please do not set the SUB-COMPANION as next MASTER in order to guarantee best sound quality. -
Page 23: Connecting Victory 2000 / V-Slave To 1 Or 2 Passive Companion Speakers
Application 3-5 Connecting VICTORY 2000 / V-SLAVE to 1 or 2 passive companion speakers Plug the external speaker’s audio cable with a 6.3mm connector to the speaker input socket of passive companion speaker V-SP or a 4~8Ω load speaker. The V-SP speaker can link to another V-SP. -
Page 24: Installing Or Replacing A Receiver/Repeater/Mp3 Module
VICTORY 2000 Portable Wireless PA System Installing or replacing a receiver/repeater/MP3 module There are four slots above the control panel and two on MB-50 module bracket for installing optional modules which includes receiver, repeater and MP3 recorder modules. Use a Phillips-head screwdriver (not included) to remove the screws of the blank cover panel or current module’s panel. -
Page 25: Faq & Useful Operation Tips
FAQ & useful operation tips How to adjust the best volume? For CHIAYO PA system with a master volume control, turn the master volume to 12 o'clock and then gradually adjust the volume of audio inputs (microphone, CD, MP3, etc.) from minimum to an appropriate level. Then adjust master volume on demand of application. - Page 26 If the battery is fully charged after usage without over-discharging, the battery life can reach about 2 years. Is it possible that VICTORY 2000 can work as amplifier only? Can I use only one or more microphones? How many wireless microphones can be used at most?
-
Page 27: Maintenance-Free Lead-Acid And Lithium Batteries
2. Please use the power supply specified by CHIAYO for charging. 3. The CHIAYO amplifier has a protection circuit to prevent overcharging. However, it’s recommended that the charging time not exceed 12 hours. Please disconnect the power supply when fully charged. - Page 28 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan ｜ Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan ｜ Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
