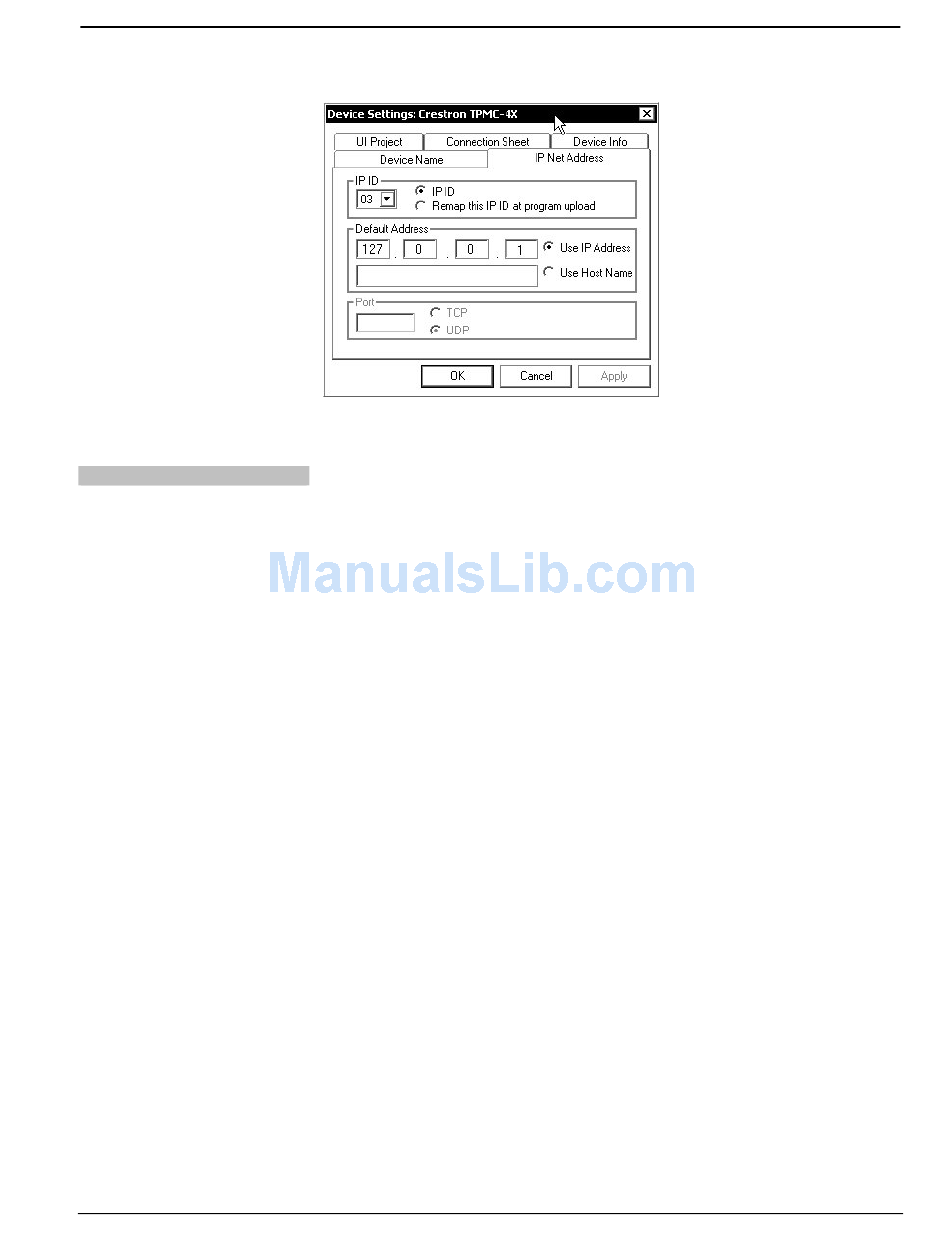

"TPMC-4X Device Settings" Window
•
The ID code specified in the SIMPL Windows program must match the IP
ID of each unit.
Programming Manager is the view where programmers "program" a Crestron control
system by assigning signals to symbols. The symbol can be viewed by double
clicking on the icon or dragging it into Detail View. Each signal in the symbol is
described in the SIMPL Windows help file (F1).

Programming with VisionTools Pro-e

Touchpanel screens should be created in VisionTools Pro-e to allow switching of
source signals to desired outputs as well as selection of the system mode. There are
no special programming requirements to use the functions of the TPMC-4X in a
room-control system.

Embedded Applications

The following third-party or in-house applications are embedded in a VT Pro-e
TPMC-4X project. (Refer to the following illustration.)
•
Calibration
•
Keyboard
•
MJPEG Viewer
The embedded applications have the following features:
•
All embedded applications listed in the VT Pro-e ProjectView
workspace are created by default for a new TPMC-4X project.
•
All applications are created at project-level – one instance per project.
•
The static position and size of each application can be viewed from any
page.
•
Four analog joins can be assigned to each application to dynamically
change position and size.
•
One digital feedback join or one analog join can be assigned to
dynamically show/hide an application.
