Isys i/O Handheld WiFi Touchpanel
16 • Isys i/O
™
Handheld WiFi Touchpanel: TPMC-4X

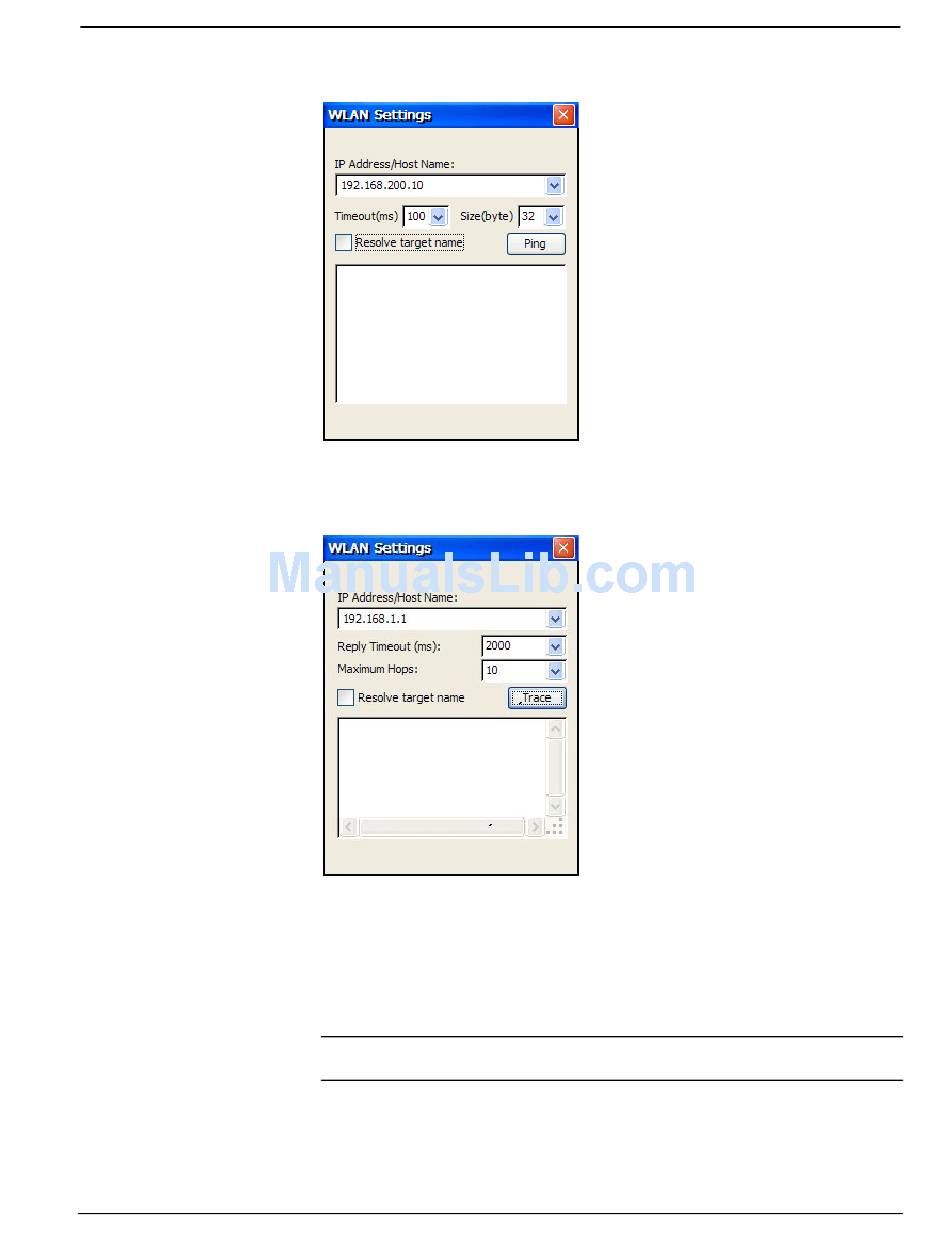

"WLAN Settings" Window - Ping Screen
Enter the IP Address or the host name, and click the Ping button to send a test packet
to verify the connectivity between the TPMC-4X and the control system.
"WLAN Settings" Window - Trace Screen
Press the Trace button to display all the intermediate points the packet goes through
to reach the destination.
Checking the Resolve target name check box will display the host name of the
entered IP address.
Press the Config button on the "IP Info" screen to display the following Config
screen. Use the screen to specify the static IP address for the TPMC-4X.
NOTE: The supported usage model of the TPMC-4X requires the use of a static IP
address.
