Crestron TPMC-4X
Operations Guide – DOC. 6499

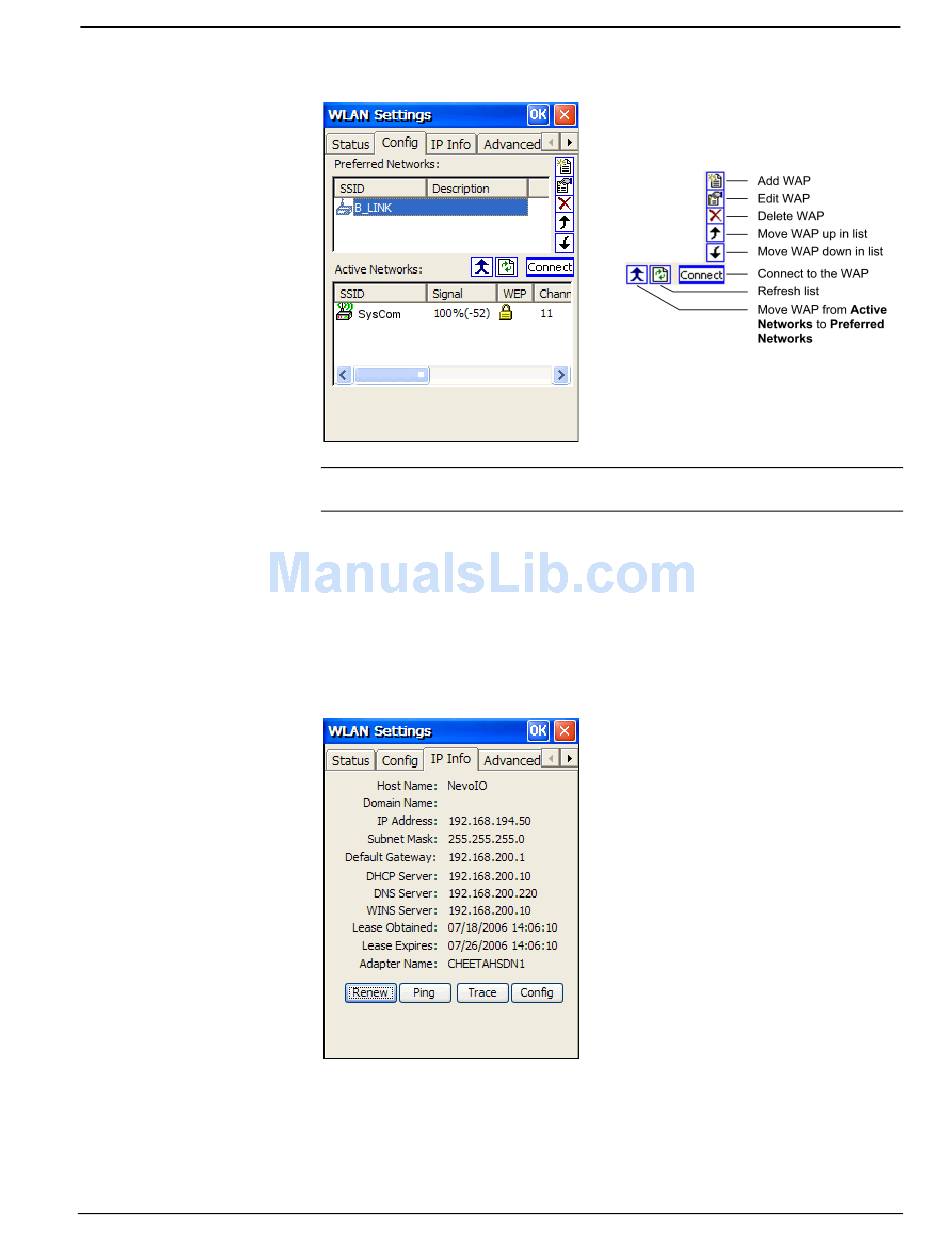

"WLAN Settings" Window – Config Tab
NOTE: There must be only a single dedicated WAP listed in the Preferred Networks
list.
Select the IP Info tab to display IP addresses and other information relating to the
network. (Refer to the following figure.) Use the Renew button at the bottom of the
screen to renew the lease for the IP address if you are connected by DHCP. (Note:
not supported by Crestron.)
The Ping and Trace buttons activate screens that are used to test the connectivity of
the network, and let you see all the intermediate points in the network, respectively.
The screens are shown on the following page.
"WLAN Settings" Window – IP Info Tab
™
Isys i/O
Handheld WiFi Touchpanel
Handheld WiFi Touchpanel: TPMC-4X • 15
™
