CONNECTOR

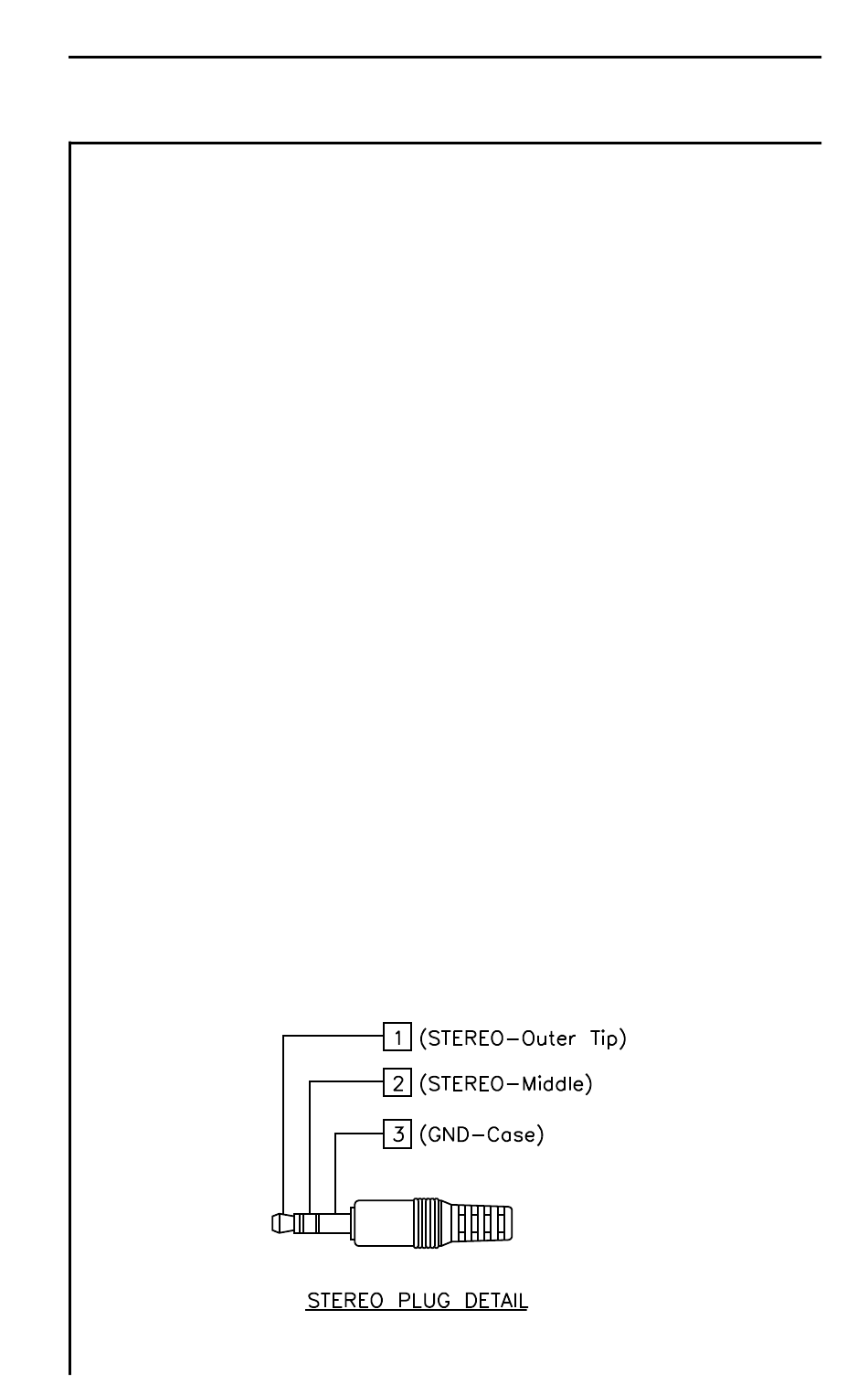

The MS1200 has a serial interface with RS232 drive, using a 3-pin
stereo connector. The serial interface has a driver built in for RS232
serial binary data interchange. The connector is located on the
bottom of the unit behind a waterproof cover.
MODEL MS1200
C
Appendix C:
Interface Port
Pin Assignments for Interface Port
Signal
Pin
TXD
1
RXD
2
GND
3
Description
Transmitted Data
Received Data
Ground
53
