PRIMARY COVER INSTALLATION

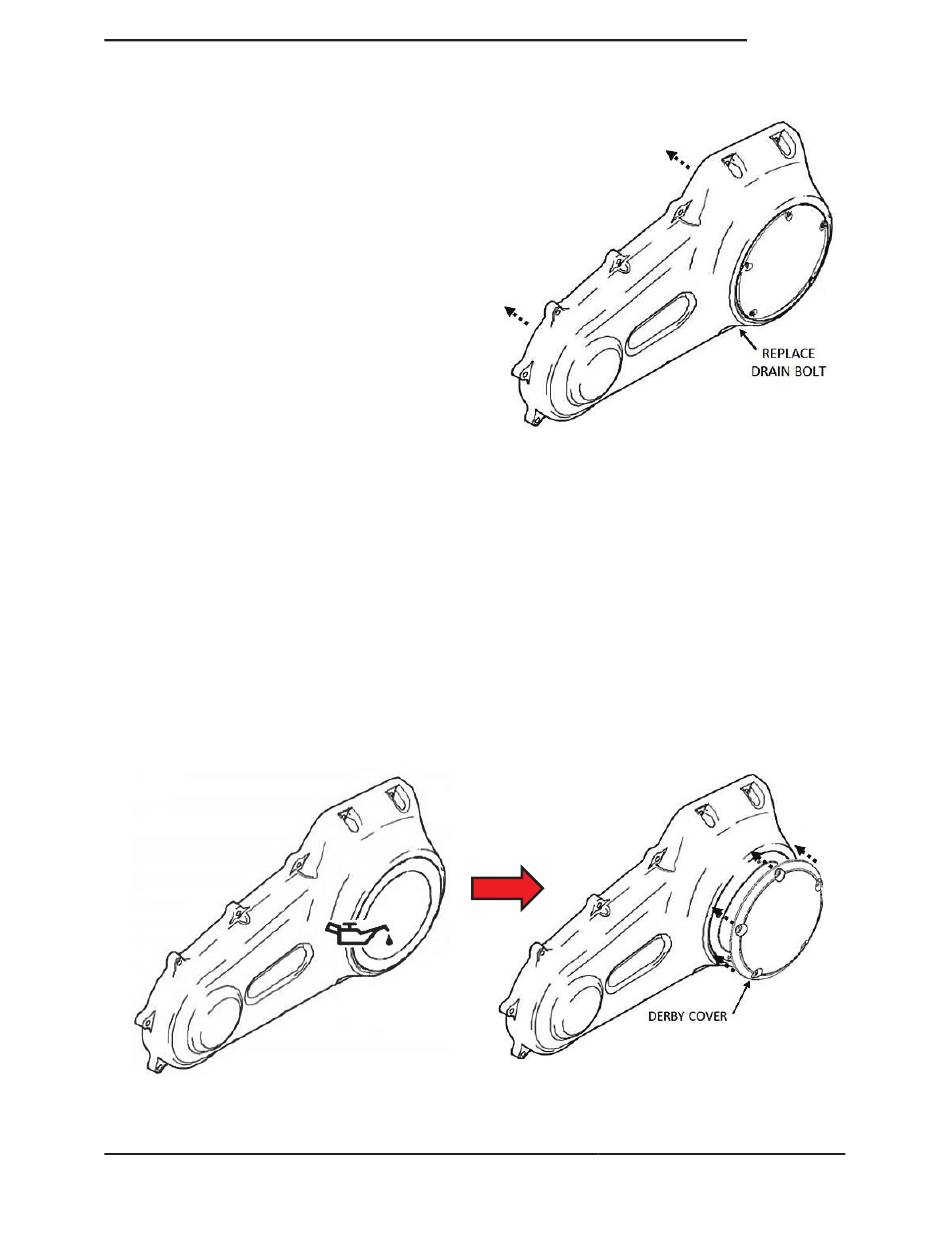

1. Thoroughly clean the mating surfaces of the primary cover
and the engine case.
2. Reinstall the primary gasket
(or new gasket).
3. Reinstall the primary cover,
then torque the cover bolts to
84-108 in-lbs (9.5-12.2 N-
m).
4. Reinstall the drain bolt, then
torque the drain bolt to 36-60
in-lbs (4-6.8 N-m).
5. With the primary cover installed, use a T-27 Torx bit to
remove the derby cover.
6. Using a funnel, add 1.25 quarts of oil to the primary case
through the derby cover cavity. Use the OE recommended oil
or any quality primary oil.
7. Reinstall the derby cover and torque bolts to 84-108 in lbs.
(9.5-12.2 N-m).
Doc ID: 191-6203A
Doc Rev: 100219
Pg. 17
