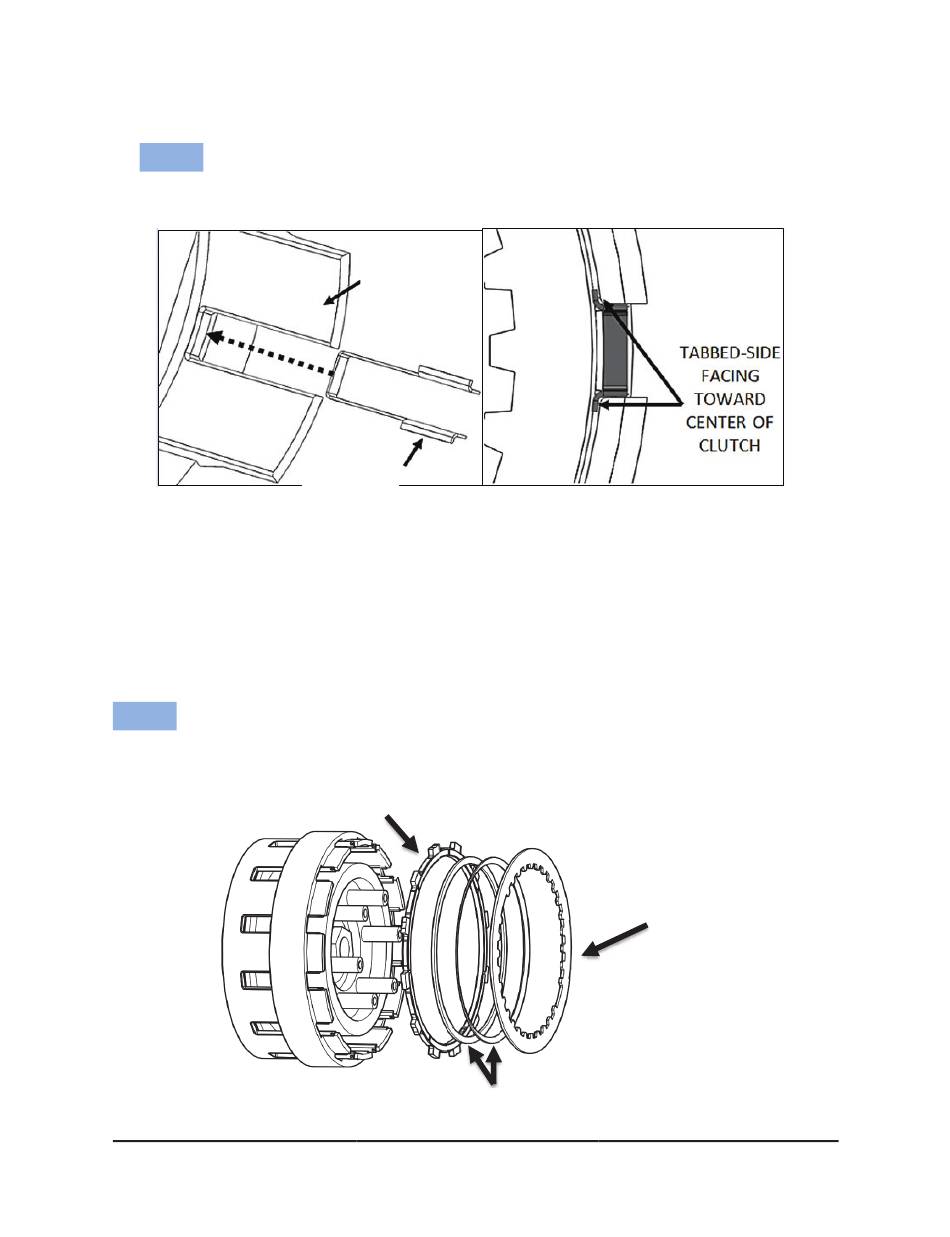

2. Install ALL the Rekluse basket sleeves into the OE basket
slots. Make sure the sleeve tabs sit against the inside of the
basket, then push the sleeves down until they contact the
bottom of the tang slot. See pictures for reference.
Note: In some models, the sleeves will fit deeper into the
basket than others. This is normal.
3. Install the Rekluse damper (judder) spring fiction disk -
(3.81 mm) into the clutch basket.
4. Reinstall the damper (judder) seat and spring into the basket,
then install one Rekluse thick steel drive plate -
Note: Use dental picks can help control the basket sleeves when
installing the clutch pack.
Damper (judder) friction disk
Pg. 10
BASKET
TANG
BASKET
SLEEVE
OE Damper (judder) seat and spring
Doc ID: 191-6203A
Doc Rev: 100219
.150"
.
.065" (1.6 mm)
Thick steel
drive plate
