Summary of Contents for Crestron DA-1550CW
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON...
-
Page 3: Table Of Contents
Crestron DA-1550CW Contents Docking Assembly for STX-1550CW: DA-1550CW Description Functional Description Physical Description Leading Specifications Setup Network Wiring Identity Code Installation Programming with SIMPL Windows Configure DA-1550CW Program BB/DA-1550CW Symbol Example Program Operation Normal Operation Manual Undocking of Touchpanel Problem Solving... -
Page 5: Docking Assembly For Stx-1550Cw: Da-1550Cw

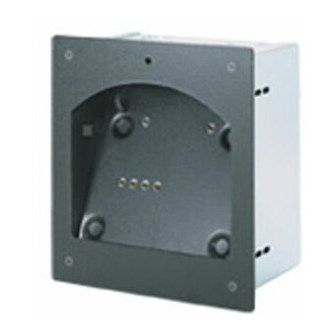

STX-1550CW: DA-1550CW Description Functional Description The DA-1550CW docking assembly is wall-mounted hardware that is used to dock a Crestron SmarTouch STX-1550CW compact color touchpanel. Used with the BB-1550CW back box (sold separately), the DA-1550CW provides operating power, hard-wire communications with a standard Crestron remote control system (herein referred to as the Cresnet system), and recharges the Crestron High Performance Rechargeable Power Pack (ST-BTP) of the docked touchpanel. - Page 6 Docking Assembly for STX-1550CW DA-1550CW Physical Views and Dimensions 5.57 in (14.14 cm) 6.51 in (16.54 cm) Front View Components RECHARGE POWER) Docking Assembly for STX-1550CW: DA-1550CW TOUCHPANEL LATCHING HOOKS ELECTRICAL CONTACTS (CRESNET Y DATA & Z DATA) ELECTRICAL CONTACTS (OPERATING &...
- Page 7 Crestron DA-1550CW Side View (with Partial Cut-Away) Components UNLATCH Rear View Components Operations & Installation Guide - DOC. 5930 Docking Assembly for STX-1550CW MANUAL Docking Assembly for STX-1550CW: DA-1550CW LATCHING LEVER & HOOKS UNLATCH SOLENOID SOLENOID ELECTRICAL CONNECTORS LATCH RETURN...
-
Page 8: Leading Specifications
Docking Assembly for STX-1550CW Leading Specifications The table below provides a summary of leading specifications for the DA-1550CW. Dimensions and weight are rounded to the nearest hundredth unit. Leading Specifications of the DA-1550CW Power Requirements Default Network ID SIMPL™ Windows®... -
Page 9: Identity Code
(NET ID). These codes are recognized by a two-digit hexadecimal number from 03 to FE. The NET ID of the DA-1550CW must match an ID code specified in the SIMPL Windows program. The NET ID of the DA-1550CW is factory set to 51. -
Page 10: Installation
“Unlatch” and the output labeled “Unlatched”. The latest version can be obtained from the Downloads page (SIMPLWIN Library) of Crestron’s website (www.crestron.com). New users are required to register in order to obtain access to the FTP site. The method for changing the unit’s NET ID is identical regardless of the software chosen. - Page 11 Install Front Panel Operations & Installation Guide - DOC. 5930 Docking Assembly for STX-1550CW As shown below, position the front panel to the DA-1550CW. Install four hex screws (supplied) to finger-tight then, using a 5/64-inch hex wrench, tighten an additional 1/8-turn.
-
Page 12: Programming With Simpl Windows
SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use programming language that is completely integrated and compatible with all Crestron system hardware. The objects that are used in SIMPL are called symbols. SIMPL Windows offers drag and drop functionality in a familiar Windows®... -
Page 13: Configure Da-1550Cw Program
Crestron DA-1550CW Configure DA-1550CW Program To create a program with a DA-1550CW, refer to the table below for initial configuration information. NOTE: Multiple DA-1550CWs may be used with a single control system. To use multiple DA-1550CWs , refer to “Identity Code” that begins on page 5. -
Page 14: Example Program
Docking the STX-1550CW Docking of the STX-1550CW is performed by hand by inserting the bottom edge of the touchpanel into the DA-1550CW and snapping it into place. To dock the touchpanel, refer to the procedure on the next page. NOTE: Do not dock the STX-1550CW into the DA-1550CW without the ST-BTP being installed in the touchpanel. - Page 15 Docking Assembly for STX-1550CW Refer to the diagram below. Insert the bottom edge of touchpanel docking plate (located on the rear of the touchpanel) into DA-1550CW directly behind the front panel. Refer to the diagram below. Make sure that the STX-1550CW is squarely seated in DA-1550CW and press upper edge of touchpanel inward to dock the touchpanel.
-
Page 16: Manual Undocking Of Touchpanel
Remove STX-1550CW Manual Undocking of Touchpanel If the DA-1550CW does not unlatch the STX-1550CW electrically, provisions have been incorporated to allow the touchpanel to be undocked manually. The only tool required is a long-reach (minimum 4-1/2 inches from tip to handle base) #1 flat or Phillips screwdriver. - Page 17 As shown below, insert a long-reach screwdriver into the access hole at a downward angle (approximately 10 contacts the manual unlatch tab. Docking Assembly for STX-1550CW: DA-1550CW ) until the tip of the screwdriver...
- Page 18 Docking Assembly for STX-1550CW Lower Screwdriver Handle Remove STX-1550CW Docking Assembly for STX-1550CW: DA-1550CW As shown below, lower the handle of the screwdriver until the touchpanel unlatches (handle of screwdriver will be approximately level and touchpanel will snap outward slightly).
-
Page 19: Problem Solving
Re-Install Access Hole Plug Problem Solving Troubleshooting The table below and continued on the next page provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. DA-1550CW Troubleshooting DA-1550CW does not unlatch touchpanel. - Page 20 For further information, refer to the latest revision of the ST-BTP Installation Guide (Doc. 5746). The latest version can be obtained from the Downloads page (MANUAL Library) of Crestron’s website (www.crestron.com). New users are required to register in order to obtain access to the FTP site.
-
Page 21: Further Inquiries
Crestron DA-1550CW Further Inquiries If after reviewing this Operations & Installation Guide for the DA-1550CW, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team by calling: For local support from exclusive Crestron factory-trained personnel call:... -
Page 22: Return And Warranty Policies
(3) years from the date of shipment to purchaser. Disk drives and any other moving or rotating mechanical parts are covered for a period of one (1) year. CRESTRON warrants all its other products for a period of one year from the defects mentioned above, excluding touchscreen display components which are covered for 90 days. - Page 23 Crestron DA-1550CW Docking Assembly for STX-1550CW This page intentionally left blank. Operations & Installation Guide - DOC. 5930 Docking Assembly for STX-1550CW: DA-1550CW...
- Page 24 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 5930 15 Volvo Drive Rockleigh, NJ 07647 01.01 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
