4-Wire to RJ-11 Converter: CNRJ11

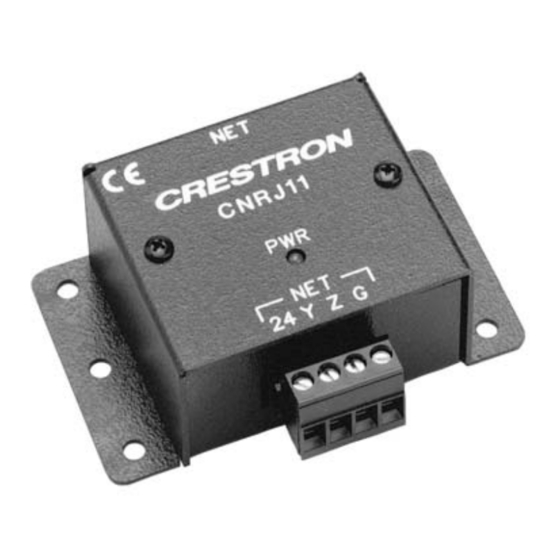

Creston's CNRJ11 is a network one-to-one converter that interfaces 4-wire Cresnet
connectors. The converter is housed in a black enclosure with silk-screened top panel. A 4-pin network
connector is located on one side of the unit. A 6-position RJ-11 modular jack is located on the opposite side.
At the shorter sides of the CNRJ11, the enclosure has mounting flanges with screw holes for mounting it to a
flat surface. A 4-position terminal block connector is included.

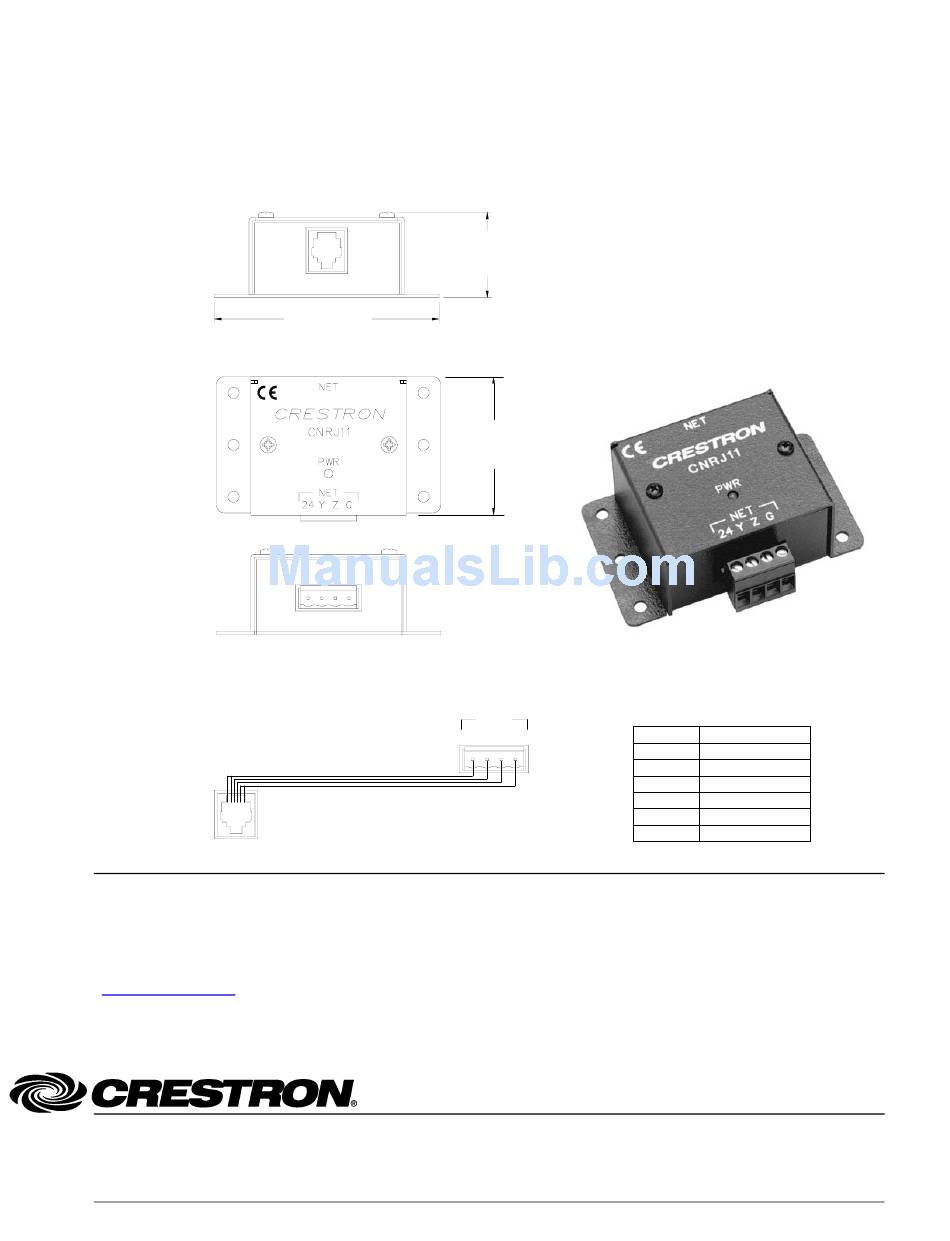

Simplified Wiring Diagram
1
6

Further Inquiries

If you cannot locate specific information or have questions after reviewing this sheet, please take advantage
of Crestron's award winning customer service team by calling the Crestron corporate headquarters at
1-888-CRESTRON [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website
(www.crestron.com) for a listing of Crestron worldwide offices.
You can also log onto the online help section of the Crestron website to ask questions about Crestron
products. First-time users will need to establish a user account to fully benefit from all available features.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
1.24 in
(3.15 cm)
3.25 in
(8.26 cm)
2.00 in
(5.08 cm)
24 Y Z G
NET
RJ-11 PIN
4-Wire to RJ-11 Converter: CNRJ11
Specifications subject to change without notice.
®
with 6-pin RJ-11 Cresnet
CRESNET 4-WIRE
1
24
2
24
3
Y
4
Z
5
GND
6
GND
DOC. 8117A
(2002150)
07.06
