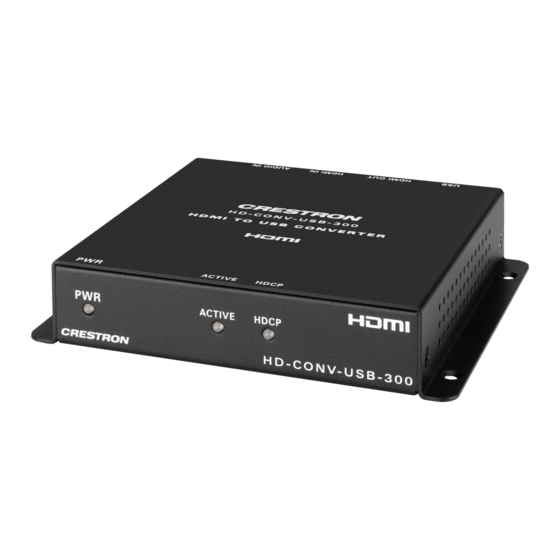

HD-CONV-USB-300
USB Converter with HDMI® and Analog Audio Input
The Crestron
HD-CONV-USB-300
analog audio input signals to USB 3.0. The device automatically
downscales 4K sources to 1080p. An HDMI output port is also provided
for local viewing or loop-through functionality. The device is compliant
with USB Audio Class (UAC) and USB Video Class (UVC) standards.
In the Box
1
HD-CONV-USB-300 USB Converter with HDMI® and
Analog Audio Input
Additional Item
1
Cable, USB 3.0 A - B, 1 ft (0.30 m) (2058403)
Install the Device
The HD-CONV-USB-300 can be mounted onto a flat surface or onto a
rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or the underside of a table. Be sure to use the
mounting hardware that is appropriate for the surface to which the
device is being mounted. The screw diameter should not exceed 0.24 in.
(6 mm). It is recommended that 3-24 x 3/4 in. Phillips flat head screws
be used.
converts 4K60 4:4:4 HDMI® and
Wall Mounting
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron HD-CONV-USB-300
Summary of Contents for Crestron HD-CONV-USB-300
- Page 1 Additional Item Cable, USB 3.0 A - B, 1 ft (0.30 m) (2058403) Install the Device The HD-CONV-USB-300 can be mounted onto a flat surface or onto a rack rail. Mounting onto a Flat Surface Using four mounting screws (not included), mount the device onto a flat surface such as a wall or the underside of a table.
-
Page 2: Connect The Device
Quick Start HD-CONV-USB-300 USB Converter with HDMI® and Analog Audio Input Mounting onto a Rack Rail Using two rack mounting screws (not included), mount the left or right Connect the Device mounting flange of the device onto the front or rear rail of a rack. -
Page 3: Configure The Device
Update Successful message appears. Configure the Device c. Click OK. To configure the device, use the HD-CONV-USB-300 configuration tool by performing the following steps: 1. Using the included USB 3.0 cable, connect the USB 3.0 Type-A port on your computer to the USB 3.0 Type-B port on the... - Page 4 HDCP encryption even when it is not required by the current video content. When HDCP is disabled on the HD-CONV-USB-300, the connected device should automatically switch to non-HDCP mode as long as the playing content allows it.
- Page 5 Quick Start HD-CONV-USB-300 USB Converter with HDMI® and Analog Audio Input Observe the LED Indicators Visit the Product Page Observe the LED indicators on the front panel of the HD-CONV-USB- Scan the QR code to visit the product page. 300. HD-CONV-USB-300 Front Panel LED Indicators www.crestron.com/model/6512272...
-
Page 6: Important Instructions
Quick Start HD-CONV-USB-300 USB Converter with HDMI® and Analog Audio Input Important Instructions Instructions Importantes Important Safety Instructions Instructions de sécurité importantes WARNING: When using this product, basic precautions should always be Les avertissements: concernant l'utilisation de ce produit doivent followed, including the following: toujours être fondés sur les précautions fondamentales, notamment:... - Page 7 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
