1.5 Presentation of the product

1.5.1.

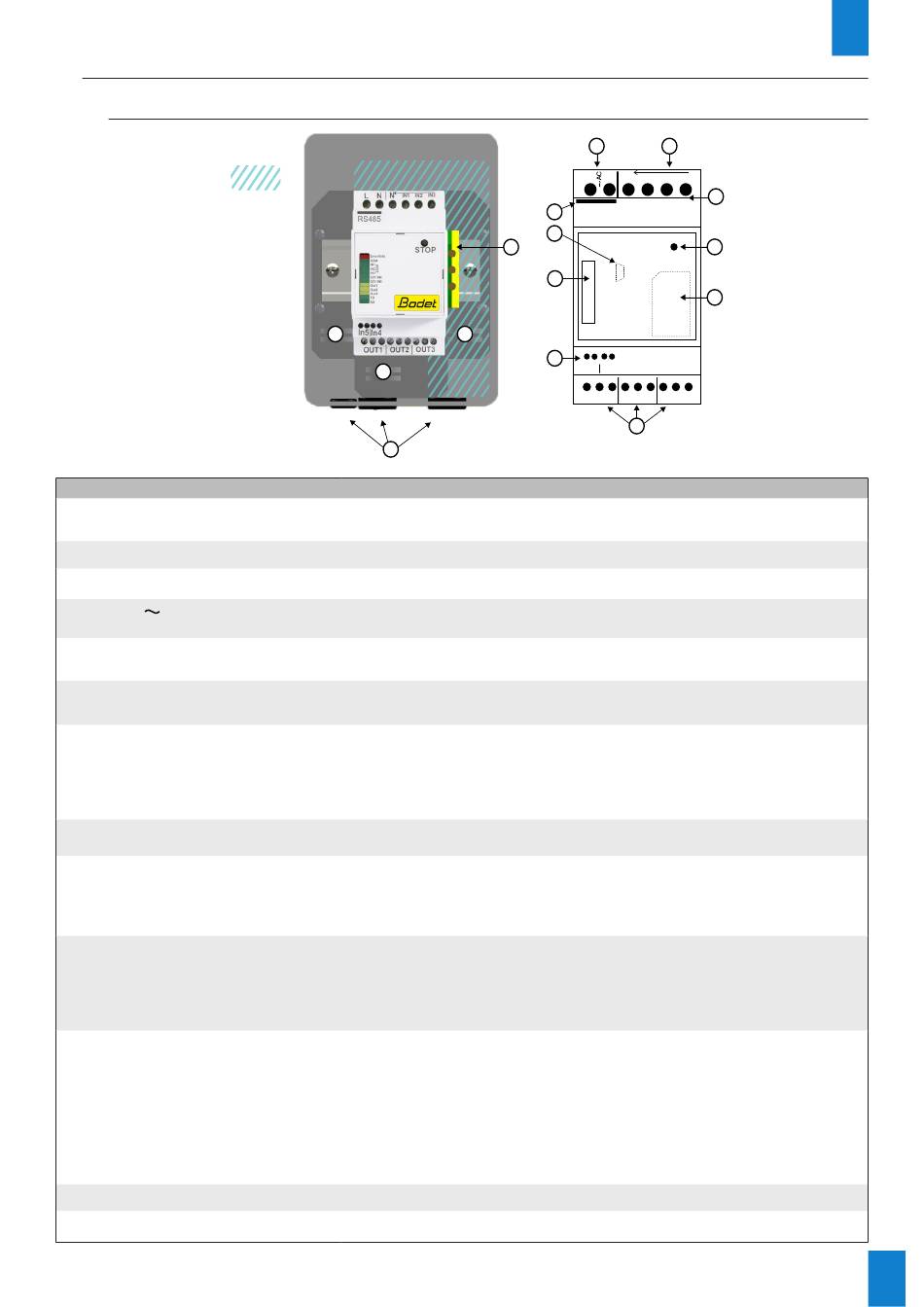

Description of the GSM control

Reserved area
for the passage
of the power cables
Id. Description
1 Grommets
2 Grounding terminal block
3 Cable sockets
230V power supply
4
terminal block
Inputs from
5
230V switching (IN1/IN2/IN3)
Connection of
6
the GSM antenna
7 Stop / Reset button
8 SIM card slot
Relays
9
(OUT1/OUT2/OUT3)
32V alarm inputs
10 switching
(IN4/IN5)
11 Status LEDs
12 Mini-USB port
13 RS485 interface
3 3
3
A B C
1
Status / Comments
A: passage GSM cable + 2-pair cable
C: mains power cable passage
Attachment of cables with cable ties.
Mains connection.
Not used.
MMCX male connector.
Activation / deactivation of product functions.
Reset the product.
Reset and return to factory configuration (loss of configuration).
See section 1.5.1.1 Using the Stop/Reset Button for more
information on how to use this button.
Compatibility with the mini-SIM format (25x15 mm / 2FF) only.
Control of the SIGMA master clock.
OUT1: Triggering of an A-alert by incoming call,
OUT2: Triggering of a B alert by incoming call,
OUT3: Triggering of a C alert by incoming call.
IN4: use of the alarm input to send a warning SMS
alerting of the triggering of an alert, depending on the configuration of the
SIGMA.
IN5: use of the alarm input to send a warning SMS alerting of another
event, depending on the configuration of the SIGMA.
Error/Info LED (red)
GSM LED (green)
LEDs IN1/2/3 230V (green): not used.
LEDs IN4/5 32V (green)
LEDs OUT1/2/3 (orange)
RX/TX LEDs (green): not used.
For more information on the meaning of the LED status,
see section 1.5.1.2 Behaviour of the LEDs.
Not used.
Not used.
4 5
L N N
IN 1 IN 2 IN 3
RS485 GSM
13
12
2
STOP
Error
GSM
IN1
11
IN2
IN3
IN4
IN5
OUT1
OUT2
OUT3
RX
TX
10
IN 5 IN 4
OUT1 OUT2 OUT3
9
B: 3-pair cable
