3. Remove the control panel overlay from the unit
(it lifts off – is held in place by small tabs) to
reveal the upper mounting screw holes.

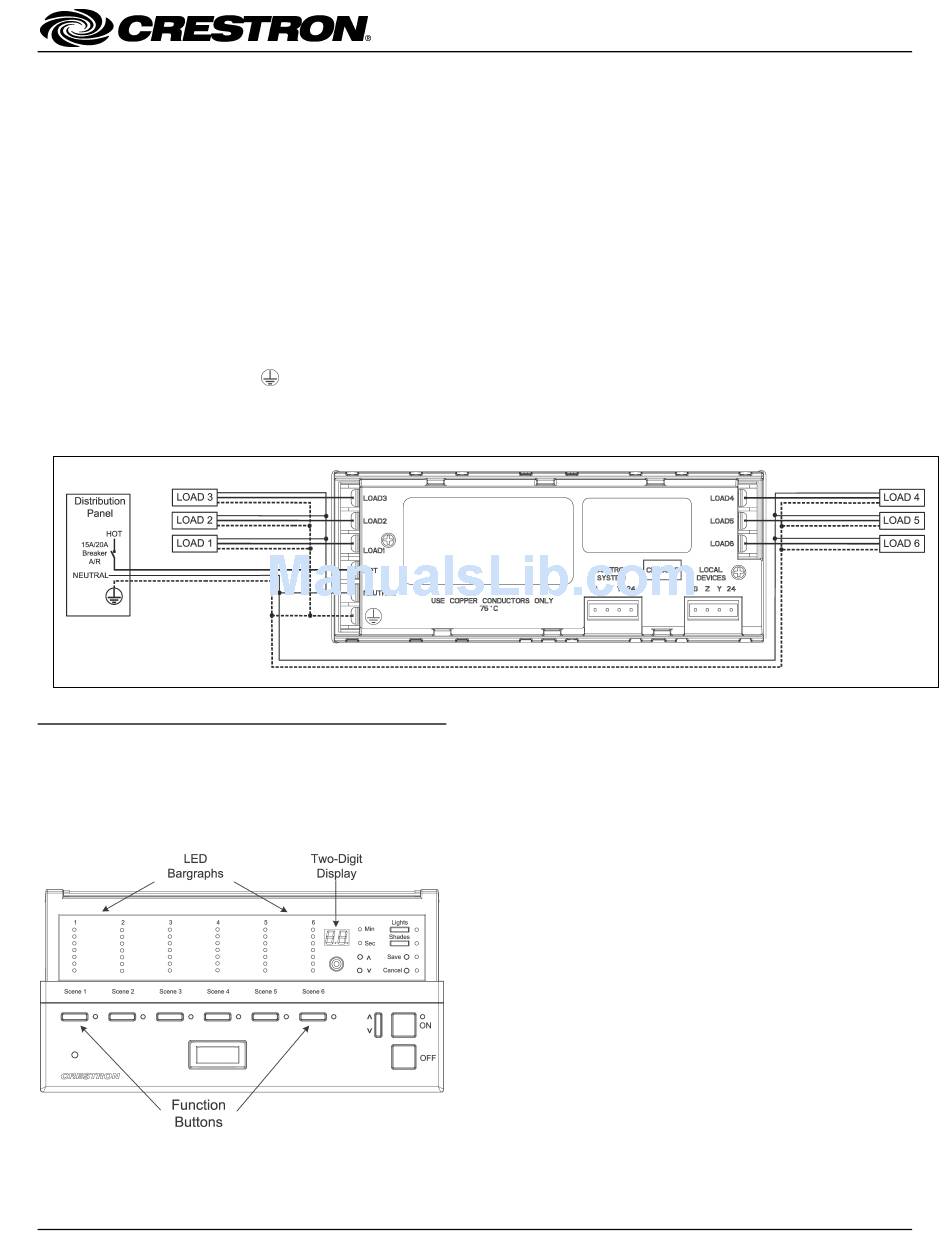

4. Refer to the following diagram for connection of
the AC wiring. All wires to be inserted in the
screw terminals should be stripped 7/16-inch,
and screws should be tightened to between 8 and
10 in.-lbs. (0.90 Newton meters to 1.13 Newton
meters). The maximum wire size is 12 AWG.
5. Connect each load wire to the corresponding
LOAD terminals on the unit, connect the power
line hot wire from the circuit breaker to the HOT
terminal on the unit, connect all neutral wires to
the NEUTRAL terminal on the unit, and connect
all ground wires to the
the unit.
Power up and Testing
The following illustration shows the front panel of the
unit and the controls used during installation.
Front Panel Controls and Indicators
Installation Guide – DOC. 6394
(ground) terminal on
™
iLux Lighting Systems
6. If Cresnet cabling is part of the installation,
attach the supplied terminal block connector(s)
to the Cresnet cable(s) and plug into the
appropriate port(s) on the unit. Make certain that
there is a minimum 1/4-inch separation between
the Class 2 Cresnet wiring and the Class 1 AC
wiring.
7. Carefully tuck all wires into the wallbox and
fasten the unit to the wallbox using the four
7/8-inch Phillips screws supplied.
8. Reattach the control panel overlay to the front
panel by inserting the four tabs into the slots
provided, and install the hinged front cover
assembly by lining it up at the top and pressing
the bottom edge until it snaps into position.
Verify the basic installation and wiring connections as
follows:
1. Press the Lights button to enable manual light
control, and press the right side and the left side
of each of the function buttons to increase and
decrease the lighting level of those loads. Verify
that the intended loads and corresponding LED
bargraphs respond appropriately.
2. Press the OFF button to turn off all loads. The
loads will ramp down to off while the two-digit
display counts down to off (blank). Two seconds
after all lights have turned off, the unit's master
air-gap relay opens making it safe to service the
lighting installations.
