Crestron iLux CLS-C6MRF Specifications

Introduction

Features and Functions

™
The iLux units, CLS-C6RF and CLS-C6MRF, are wall-
mounted complete integrated lighting systems that can
function as standalone devices and/or be part of a Crestron
solution total control system network (Cresnet
are functionally identical except that the CLS-C6MRF
includes a built-in motion sensor.

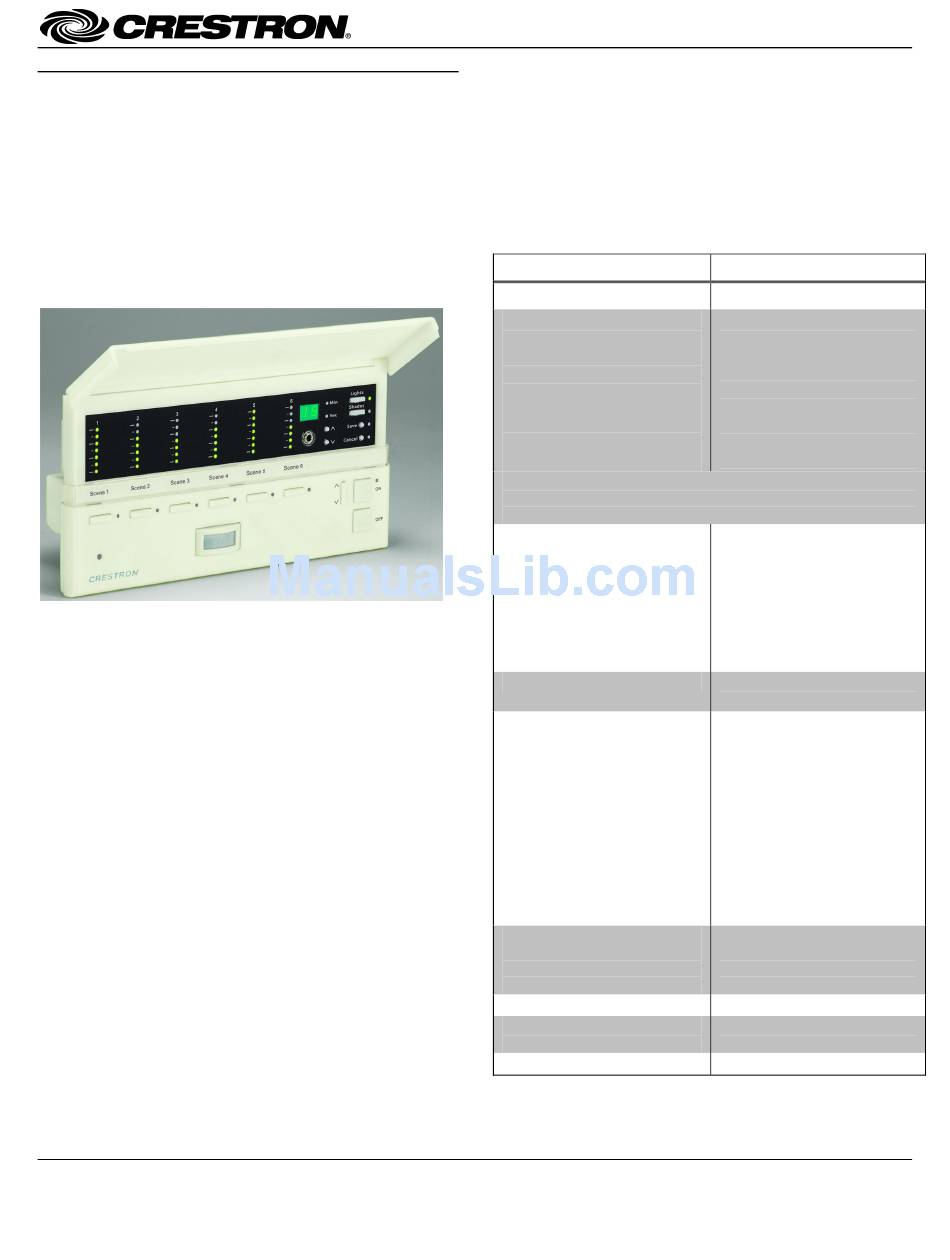

CLS-C6MRF with Cover Open, Shown in Almond
Each unit provides automated control of up to six channels
of lighting loads, including incandescent, magnetic low-
voltage, neon/cold cathode, and two-wire dimmable
fluorescent. Each unit also provides automated control of up
to six groups of shade and drape controllers for motorized
window treatments, screens, and lifts.
Front panel operation provides manual control of lighting
loads and shade groups as well as access to up to sixteen
scenes (lighting level/shade position combinations).
A built-in IR receiver allows for wireless operation using an
optional infrared remote generating standard RC5
commands; a built-in motion detector (CLS-C6MRF only)
enables automated control based on room occupancy.
Up to 16 Crestron keypads (sold separately) can be used
with each unit for control of rooms that have several
entrances or work areas. Each unit also supports up to eight
additional CLS-C6RF units, enabling systems of up to 54
lighting channels and 54 shade groups.
The CLS-C6RF employs Crestron's infiNET technology to
enable a wireless link to a 2-Series control system. A single
C2N-MNETGW gateway connected to the control system
enables 2-way wireless communications between the iLux
system and the central control system, allowing iLux's
functions to be controlled from touchpanels, RF wireless
remotes, and even computers.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
™
iLux Integrated Lighting Systems w/infiNET
Each unit is available in three colors: almond, black, or
white. The letter at the end of the product name, 'A', 'B', or
'W', denotes the color (e.g., a CLS-C6MRFA is an almond
unit).

Specifications

®
Following are specifications for the iLux units.
®
). The units
CLS-C6RF & CLS-C6MRF Specifications
Power Requirements
Load Ratings
Max load per channel
Min load per channel
Max load per unit
Note that if the unit is fed from an arc fault circuit interrupter
(required if controlling loads in a bedroom), the maximum total
load is 1000 W/VA
Load Types
IR Receiver
RF Wireless
RF Transceiver
Range (typical)
Gateway
Motion Detector
(CLS-C6MRF only)
Type
Range
Default MNET ID
Control System Update Files
2-Series Control System
Firmware
(Continued on following page)
SPECIFICATION
Line Power, 120 VAC, 60Hz
1
800 W/VA
(6.6 Amps @ 120 VAC),
Expandable via Expansion
Modules (sold separately)
15 W/VA
(0.125 Amps @ 120 VAC)
1920 W/VA
(16 Amps @ 120 VAC)
1
Incandescent, magnetic low
voltage, neon/cold cathode,
dimmable 2-wire fluorescent,
and non-dim lighting
(also: electronic low voltage,
3-wire and 4-wire fluorescent,
High-Inrush Switching, and
277V via expansion modules;
sold separately)
For use with Crestron IR
remote (sold separately).
2-way RF, 2.4 GHz ISM
Channels 11-26 (2400 to
2483.6 MHz), IEEE 802.15.4
compliant
150 feet indoor, 250 feet
outdoor; subject to site-specific
conditions; range is increased
by adding additional devices or
C2N-MNETRPT repeater;
Requires a C2N-MNETGW RF
gateway
Infrared
20 to 30 feet at 4-foot elevation
1F
2, 3
Version 2.004.CUZ or later
CLS-C6.v1.0.upg or later
Installation Guide – DOC. 6416A
™
DETAILS
(2013966)
06.08
Specifications subject to
change without notice.
