Crestron iLux CLS-C6 User Manual

Introduction

Features and Functions

™
The iLux units, CLS-C6 and CLS-C6M, are wall-
mounted complete integrated lighting systems that can
function as standalone devices and/or be part of a
®
Crestron solution total control system network
®
(Cresnet ). The units are functionally identical except that
the CLS-C6M includes a built-in motion sensor.

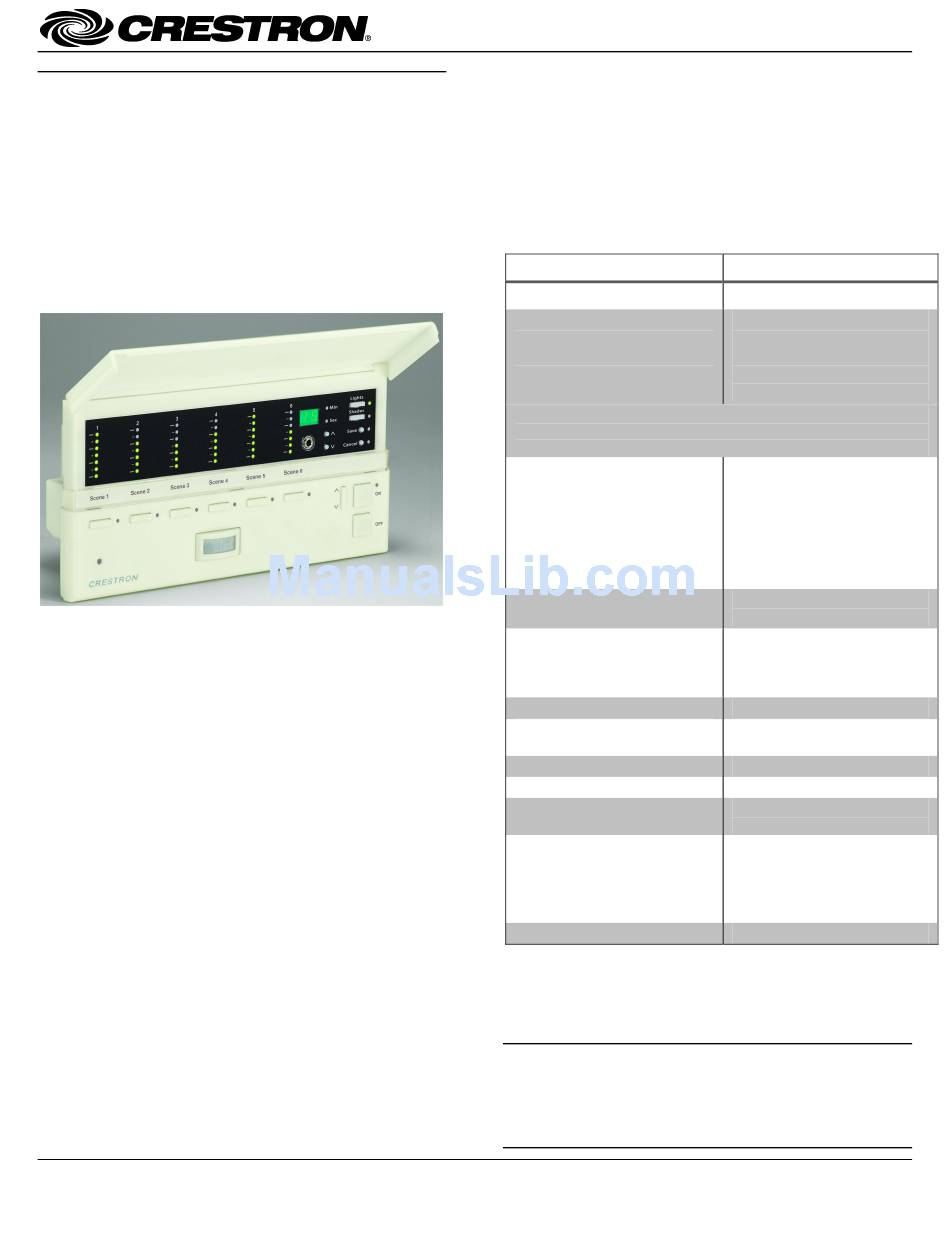

CLS-C6M with Cover Open, Shown in Almond
Each unit provides automated control of up to six
channels of lighting loads, including incandescent,
magnetic low-voltage, neon/cold cathode, and two-wire
dimmable fluorescent (e.g., Advance Mark X)*. Each unit
also provides automated control of up to six groups of
shade and drape controllers for motorized window
treatments, screens, and lifts.
Front panel operation provides manual control of lighting
loads and shade groups as well as access to up to sixteen
scenes (lighting level/shade position combinations).
A built-in IR receiver allows for wireless operation using
an optional infrared remote generating standard RC5
commands; a built-in motion detector (CLS-C6M only)
enables automated control based on room occupancy.
Up to 16 Crestron keypads (sold separately) can be used
with each unit for control of rooms that have several
entrances or work areas. Each unit also supports up to
eight additional CLS-C6 units, enabling systems of up to
54 lighting channels and 54 shade groups.
Each unit provides control system integration through two
separate Cresnet control networks; one for local devices
and one for connection to a 2-Series control system.
*Other load types can be controlled via optional interface modules.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
™
iLux Lighting Systems
Each unit is available in three colors: almond, black, or
white. The letter at the end of the product name, 'A', 'B',
or 'W', denotes the color (e.g., a CLS-C6MA is an
almond unit).

Specifications

Following are specifications for the iLux units.
CLS-C6 & CLS-C6M Specifications
SPECIFICATION
Power Requirements
Load Ratings
Max load per channel:
Max load per unit:
Note that if the unit is fed from an arc fault circuit interrupter
(required if controlling loads in a bedroom), the maximum total
load is 1000 W/VA
Load Types
IR Receiver
Motion Detector
(CLS-C6M only)
Type
Range
Default Net ID
Control System Update Files
2-Series Control System
Firmware
Environmental Temperature
Humidity
Overall Dimensions:
Height
Width
Depth
Weight
1. The latest versions can be obtained from the Crestron website. Refer
to NOTE after last footnote.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult
the latest Crestron Product Catalog for a complete list of 2-Series
control systems.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Installation Guide – DOC. 6394
DETAILS
Line Power, 120 VAC, 60Hz
800 W/VA
(6.6 Amps @ 120 VAC)
1920 W/VA
(16 Amps @ 120 VAC)
Incandescent, magnetic low
voltage, neon/cold cathode,
dimmable 2-wire fluorescent,
and non-dim lighting
(also: electronic low voltage,
3-wire and 4-wire fluorescent,
and 277V via expansion
modules; sold separately)
For use with Crestron IR
remote (sold separately).
Infrared
20 to 30 feet at 4-foot elevation
1F
1, 2
Version 2.004.CUZ or later
CLS-C6.v1.0.upg or later
32° to 104°F (0° to 40°C)
10% to 90% RH
(non-condensing)
4.48 in (11.38 cm)
8.89 in (22.58 cm)
2.47 in (6.25 cm) for CLS-C6
2.60 in (6.61 cm) for CLS-C6M
22.8 oz (646.37 g)
(2013406)
09.05
Specifications subject to
change without notice.
