Physical Description

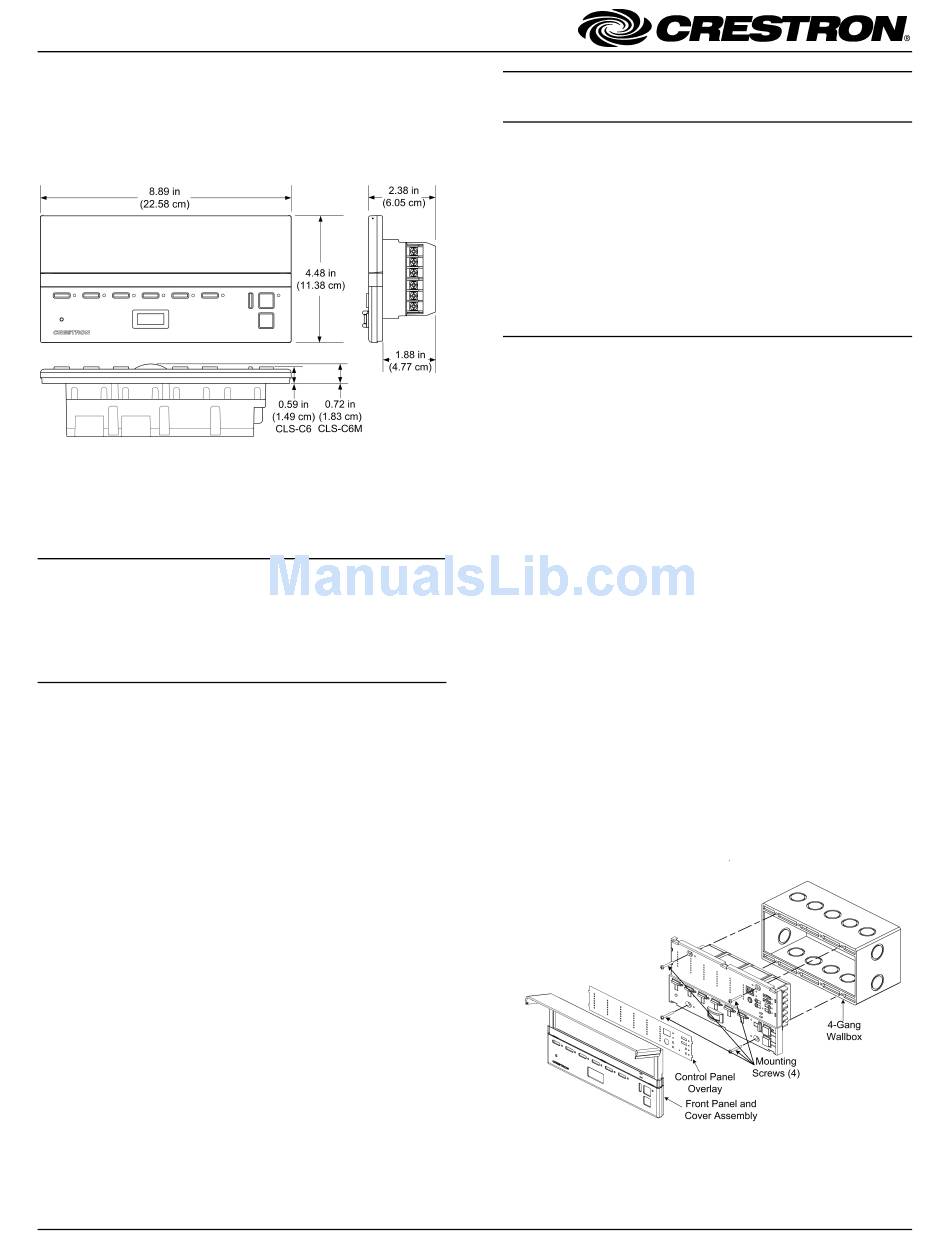

The following illustration shows the overall dimensions
for the CLS-C6 and CLS-C6M.
CLS-C6M Overall Dimensions

Industry Compliance

These units have been manufactured to comply with UL's
Standards for Safety in the United States and Canada.
Formal approval is pending.
NOTE: This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Important Notes
Read before installation.
•
Codes: Install in accordance with all local and
national electrical codes.
•
Wiring: Use copper wire only. For supply
connections, use wires rated for at least 75°C.
•
Lighting Load Types: incandescent, magnetic
low voltage, neon/cold cathode, dimmable
2-wire fluorescent, and non-dim lighting
(also: electronic low voltage, 3-wire and 4-wire
fluorescent, and 277V via expansion modules;
sold separately).
•
Temperature: The iLux units are designed for
use where temperatures are between 32° to
104°F (0° to 40°C).
•
Wallboxes: The iLux units mount in standard
4-gang wallboxes; 3.5 inches deep, minimum.
•
Make certain that power is turned off, and
ensure that there is at least 4.5 inches of open
space above and below the electrical box
location to permit heat dissipation.
2 • iLux
™
Lighting Systems: CLS-C6 & CLS-C6M
Installation
WARNING: Turn off power at the distribution panel
circuit breaker. Installing with power on can result in
serious personal injury and damage to the device.
CAUTION: To reduce the risk of overheating and
possible damage to other equipment, do not install to
control a receptacle or a motor-operated appliance.
NOTE: The CLS-C6 units require a neutral wire for
operation. If no neutral is present, contact a licensed
electrician for installation.
The following tools/hardware are required for installation.
•
A 4-gang electrical box (not supplied), 3.5 inches
deep, minimum.
•
Phillips torque screwdriver (not supplied)
•
Four 7/8-inch pan head Phillips screws
(supplied)
If the planned configuration includes connection to shade
controllers, keypads, and/or a Crestron 2-Series control
system, the following items are also required. Refer to the
latest version of the Crestron CLS-C6 & CLS-C6M iLux
Lighting System Operations Guide, Doc. 6347, for
detailed configuration options.
•
Cresnet network cable(s) (not supplied)
•
Terminal block connector(s) (two supplied)
Check that any required Cresnet wiring has been installed
and verified. Then, use the following procedure to install
the iLux unit (CLS-C6M is shown in the illustrations).
1. Feed the wires (power line from the distribution
panel, load wires, plus any required Cresnet
cables) through the holes in the wallbox. Then
install the box in the wall.
2. Hold the rear of the CLS-C6M unit and remove
the front panel and cover assembly by carefully
pulling out and up from the bottom edge.
Installation Guide – DOC. 6394
