Introduction
CRESTRON GREEN LIGHT architectural dimming cabinets come pre-configured with GLX architectural dimming
and switching modules already installed. In addition, branch circuit breakers come preinstalled and prewired to the
modules. The cabinets only require installation and wiring of feed and load circuits.
Industry Compliance
The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Application

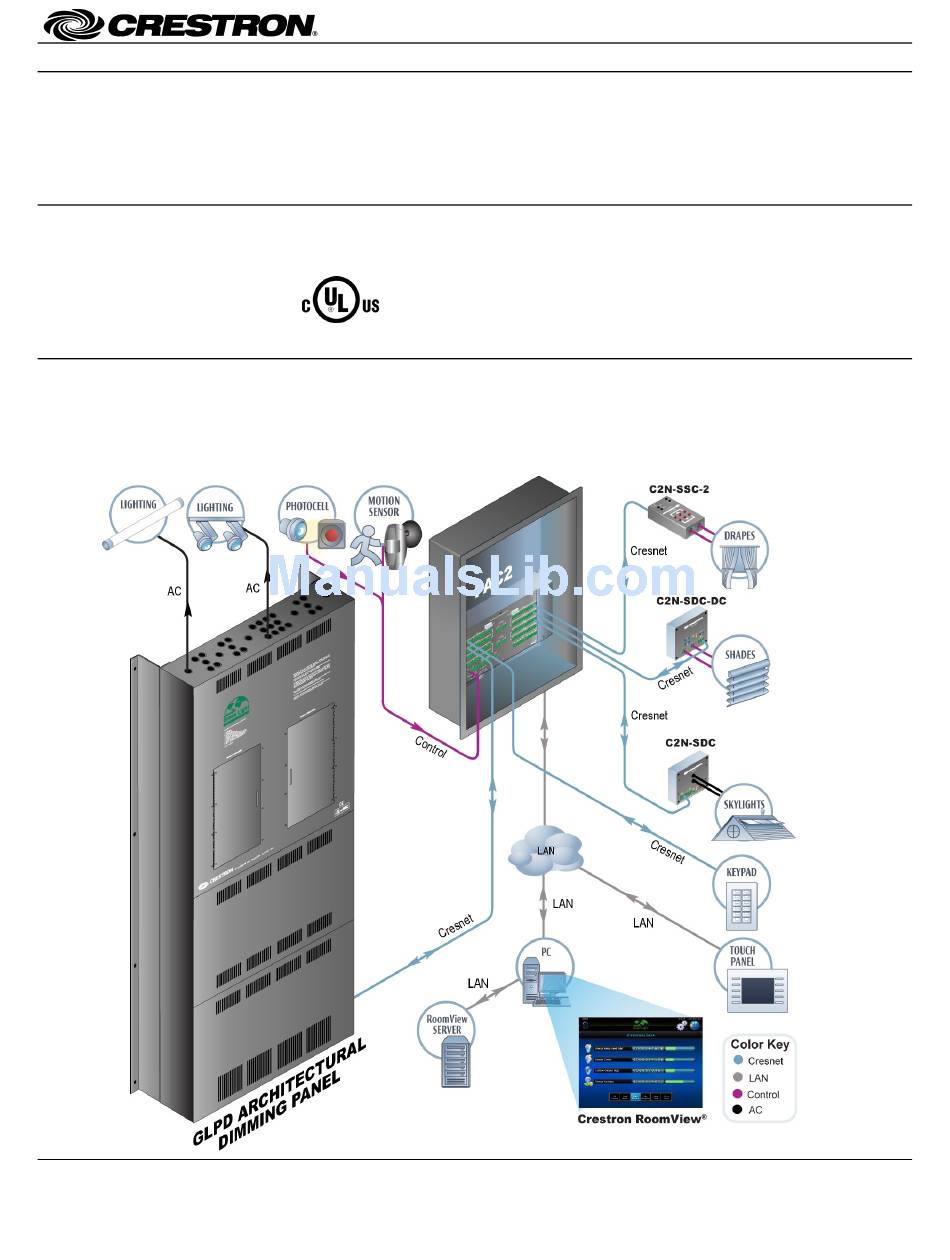

The following diagram shows CRESTRON GREEN LIGHT architectural dimming cabinets in a lighting application
that is controlled by an IPAC system.
CRESTRON GREEN LIGHT Architectural Dimming Cabinets in a Typical Lighting Application
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
CRESTRON GREEN LIGHT™ Architectural Dimming
(E227280 (cabinet) and E103692 (modules))
Installation Guide – DOC. 6688A
(2020963)
Specifications subject to
change without notice.
02.09
Advertisement
Table of Contents
Related Manuals for Crestron Green Light 277 Volt
Summary of Contents for Crestron Green Light 277 Volt
-
Page 1: Industry Compliance
Introduction CRESTRON GREEN LIGHT architectural dimming cabinets come pre-configured with GLX architectural dimming and switching modules already installed. In addition, branch circuit breakers come preinstalled and prewired to the modules. The cabinets only require installation and wiring of feed and load circuits. Industry Compliance The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. -
Page 2: Physical Description
Architectural Dimming Physical Description This section shows the exterior and interior dimensions of the CRESTRON GREEN LIGHT Architectural Dimming cabinet. External Dimensions of CRESTRON GREEN LIGHT Architectural Dimming Cabinets CONCENTRIC TECHNICAL KNOCKOUTS, 31 TOTAL (FOR " (19 mm) & TYPICAL TOP AND BOTTOM "... - Page 3 CRESTRON GREEN LIGHT™ Interior Dimensions of CRESTRON GREEN LIGHT Architectural Dimming Cabinets (GLE-XXX-Xx2, left; GLE-XXX-Xx4, right) GROUND LUG GROUND BARS SERVICE SCREWDRIVER Interior Dimensions of CRESTRON GREEN LIGHT Architectural Dimming Cabinets DIMENSION 14 7/8” 18 1/4” (378 mm) (464 mm) 8 3/16”...
-
Page 4: Installation
Architectural Dimming Installation Observe the following when installing the cabinet: • The cabinet must be mounted by a licensed electrician in accordance with all national and local codes. Refer to the diagram below for specific requirements. • Allow adequate clearance in front of the cover for servicing. •... - Page 5 CRESTRON GREEN LIGHT™ Wiring NOTE: All wiring must be installed in accordance with all local and national electrical codes. NOTE: Refer to the torque settings specified on pages 6, 7 and 8. CRESTRON GREEN LIGHT cabinets are shipped with GLX modules installed and prewired to the branch circuit breakers.
- Page 6 Architectural Dimming Feed Wiring (Section A) Feed Wiring for MLO and MCB Applications MLO BREAKER DETAIL GROUND LUG GROUND BARS Refer to the following table for information on wiring the feed to the panel. Feed Wire Information 120 Volt Models TERMINAL CONNECTOR MAX WIRE RANGE...
- Page 7 CRESTRON GREEN LIGHT™ Load Wiring (Section B) CAUTION: Bypass jumpers are provided on each output to allow testing and to protect the module during installation. The jumper shorts the L, SW and DM terminals so that the load circuit is energized when the branch breaker is on.
- Page 8 Architectural Dimming The GLX-DIMFLV8 also requires wiring the terminals for 0-10 VDC control wire. Refer to the following diagram when connecting the dimmable ballast. Each control wire terminal accepts one 12 – 28 AWG wire. 0-10 VDC Control Wiring for GLX-DIMFLV8 Only TO "+"...
- Page 9 CRESTRON GREEN LIGHT™ Connector Wiring POWER: 24 VDC JUMPERED FROM NET PORT or EXTERNAL SUPPLY. PROVIDES CRESNET POWER TO THE MODULES NET: TO CONTROL SYSTEM AND OTHER CRESNET DEVICES OVERRIDE: FROM OTHER CABINET; FROM ALARM, ETC. (OPTIONAL); TO OTHER CABINET(S) IF NECESSARY NET Port Wiring When wiring the supplied NET connectors for connection to a Crestron control system or other device on the Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P.
- Page 10 Architectural Dimming To power the modules externally from a Cresnet 24 VDC power supply, connect the external power supply to the EXT and G pins on the POWER supplied connector as shown in the following diagram. Providing Cresnet Power Externally When properly connected and receiving 24 VDC power externally, the green LED next to the MODULES port will light.
- Page 11 CRESTRON GREEN LIGHT™ Testing Manual Control A lighting module can be manually controlled from its front panel. Switch Function The GLX-HSW8 is a power switching module that can be used to turn loads on and off. The GLX-DIM6 and the GLX-DIMFLV8 are dimming modules whose outputs can be set to operate as dimmable or non-dimmable outputs.
- Page 12 Architectural Dimming Save Override Settings The state of each output can be saved as an override setting, which can be automatically recalled when the Override mode is enabled. NOTE: The control system program has a setting that can prevent locally saving the override state. If this setting is enabled, the display shows “Er”...
-
Page 13: Problem Solving
CRESTRON GREEN LIGHT™ Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. Troubleshooting TROUBLE Module(s) does not function. Module’s PWR LED is flashing. Unit cannot be taken out of Override mode Load does not dim. -
Page 14: Appendix A: Setting Module Net Ids
Architectural Dimming Appendix A: Setting Module Net IDs The following procedure will normally be performed by an authorized Crestron representative as part of the System Commissioning phase. For system wiring and basic testing as described on pages 5 and 11, it is not necessary to perform this step. -
Page 15: Appendix B: Module Specifications
CRESTRON GREEN LIGHT™ Appendix B: Module Specifications Specifications for the GLXP modules are listed in the following table. GLXP Module Specifications SPECIFICATION GLX-DIM6 Description 6 Channel Dimming/Switching Number of Outputs Cresnet Power Usage* Input Voltage 100 – 277 VAC 50/60 Hz Supported Load Incandescent, magnetic low Types... -
Page 16: Return And Warranty Policies
Architectural Dimming Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number.
