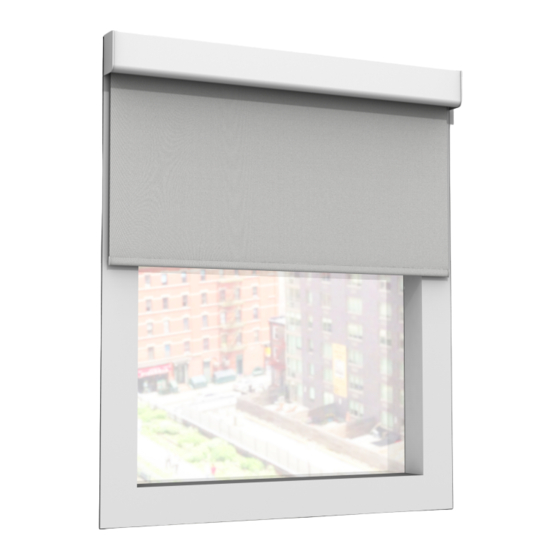

Battery powered shades
Hide thumbs Also See for CS-SHADE-ROLLER-BATT:
Table of Contents

Advertisement

Quick Links

Download this manual
CS-SHADE-ROLLER-BATT
Crestron® Battery Powered Shades
Product Manual
Crestron Electronics, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Crestron CS-SHADE-ROLLER-BATT

Summary of Contents for Crestron CS-SHADE-ROLLER-BATT

  • Page 1 CS-SHADE-ROLLER-BATT Crestron® Battery Powered Shades Product Manual Crestron Electronics, Inc.
  • Page 2 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

  • Page 3: Table Of Contents

    Long-life Battery Operation QMT®3 Series Architectural or Décor Mounting Hardware Natural and Artificial Daylight Control Security and Privacy Quiet Shade Motors Brushless Motor Technology Easy Installation Crestron Design Tool Shades (CDTS) Software Physical Description Specifications CS-SHADE-ROLLER-BATT CSM(I)-QMTDC-163-1-SG Installation Mount the Shade Brackets...
  • Page 4 Join a Wireless Network Leave a Wireless Network Verifying Communications Status Operation Controls and Indicators LEDs Troubleshooting System Diagnostics Error State Resources Crestron Support and Training Programmer and Developer Resources Product Certificates Related Documentation iv • Contents Product Manual — Doc. 9206B...
  • Page 5 v • Contents Product Manual — Doc. 9206B...

  • Page 6: Overview

    Overview Crestron® battery-powered shades (CS-SHADE-ROLLER-BATT) add beauty, convenience, and comfort to any interior space. Install battery-powered shades in locations where power and control wires cannot be run. A battery pack powers the shade motor while the SG radio provides control and status of the shade.

  • Page 7: Features

    DECOR3) mounting hardware. QMT3 series mounting hardware is a compact mounting system that allows a Crestron shade to be mounted on a wall, ceiling, or window jamb. The CSA-ARCH3 fascia for battery-operated shades includes an integrated battery holder that neatly stores the battery compartment.

  • Page 8: Natural And Artificial Daylight Control

    Crestron shades can also be set to automatically close, preventing glare on a TV and ensuring the ideal viewing scenario.

  • Page 9: Physical Description

    Physical Description Controls and Indicators UP, SET, DN (3) Pushbuttons for setup and testing Status (1) Multicolor LED for motor status indication and diagnostics 9 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 10: Specifications

    Specifications This section provides the following information: •   CS-SHADE-ROLLER-BATT •   CSM(I)-QMTDC-163-1-SG Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 10...

  • Page 11: Cs-Shade-Roller-Batt

    CS-SHADE-ROLLER-BATT Specifications for the CS-SHADE-ROLLER-BATT are below. Shade Motor CSM-QMTDC-163-1-SG For details, refer to the CSM-QMTDC-163-1-SG product page. CSMI-QMTDC-163-1-SG For details, refer to the CSMI-QMTDC-163-1-SG product page. Shade Brackets CSS-ARCH3 For details, refer to the CSS-ARCH3 product page. CSS-DECOR3 For details, refer to the CSS-DECOR3 product page.

  • Page 12: Csm(I)-Qmtdc-163-1-Sg

    International: 868 MHz; IEEE 802.15.4 compliant Range (Typical) 230 ft (70 m) indoor, to SG wireless gateway; Subject to site-specific conditions and individual device capabilities Gateway Requires a Universal Wireless Gateway (CEN-GW1 or CENI-GW1, sold separately) Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 12...
  • Page 13 1. Battery-powered shade motors cannot be used with roman shades, horizontal sheers, dual-roll brackets, couplers, and pockets. 2. Estimated battery life is based on two open/close cycles per day. High environmental temperatures and shades taller than 60 in. (1524 mm) can reduce the battery life. 13 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 14: Installation

    Mount the Shade Brackets •   Mount the Shade Assembly •   Mount Battery Pack and Insert Batteries •   Level and Center the Shade Assembly •   Motor Wiring •   Replace a Motor •   Mount Fascia Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 14...

  • Page 15: Mount The Shade Brackets

    3. If applicable, attach the end caps to the mounting brackets. Attach the end cap marked LEFT to the motor bracket (stamped with an L) and the end cap marked RIGHT to the idler bracket (stamped with an R). The end caps snap into place. 15 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 16 These screws should not be used for hollow drywall or masonry installations. It is the responsibility of the installer to ensure that the mounting method used is secure. Outside Mount (CSA-ARCH3-BRKT) Inside Mount (CSA-ARCH3-BRKT) Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 16...

  • Page 17: Csa-Decor3 Brackets

    3. If applicable, attach the end caps to the mounting brackets. Attach the end cap marked LEFT to the motor bracket (stamped with an L) and the end cap marked RIGHT to the idler bracket (stamped with an R). The end caps snap into place. 17 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 18 These screws should not be used for hollow drywall or masonry installations. It is the responsibility of the installer to ensure that the mounting method used is secure. Outside Mount Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 18...
  • Page 19 2. Reassemble the idler mount and the bracket so that the keyhole is parallel to the wall when the bracket is mounted. The screw head on the vertical adjustment screw must face down. 19 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 20 3. Secure the idler mount with the screws removed in step 1. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 20...

  • Page 21: Mount The Shade Assembly

    2. Raise the motor end of the roller shade assembly to the motor bracket. 3. Push the roller shade assembly toward the idler bracket to compress the spring on the idler pin. Align the Motor with the Motor Bracket (CSA-ARCH3-BRKT) 21 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 22: Csa-Decor3 Brackets

    2. Raise the motor end of the roller shade assembly to the motor bracket. 3. Push the roller shade assembly toward the idler bracket to compress the spring on the idler pin. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 22...
  • Page 23 Make sure that the shade is properly mounted before letting go. Secure the Motor to the Motor Bracket 23 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 24: Mount Battery Pack And Insert Batteries

    Mount Battery Pack and Insert Batteries The CS-SHADE-ROLLER-BATT is compatible with CSA-ARCH3 and CSA-DECOR3 mounting brackets. CAUTION: Removing the batteries or disconnecting the battery-pack cable from the motor during motor operation may result in lost shade limits. To reset the shade limits, refer to...
  • Page 25 CAUTION: Removing the batteries or disconnecting the battery-pack cable from the motor during motor operation may result in lost shade limits. To reset the shade limits, refer to Test and Adjust Shade Limits on page 25 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 26 5. Insert 8 D-cell batteries into the battery pack. Follow the markings on the battery pack to ensure proper orientation. NOTE: Make sure that the batteries are inserted in the proper orientation. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 26...
  • Page 27 6. Slide the battery door into the CLOSE position. The battery door will click into the closed position. 7. Rotate the battery pack into the fascia until the battery pack clicks into the fully closed position. 8. Connect the motor cable to the battery-pack cable on the connector bracket. 27 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 28: Csa-Decor3 Brackets

    NOTE: Make sure that the batteries are inserted in the proper orientation. 5. Replace the positive end of the battery pack. To replace, twist the cap clockwise. 6. Connect the battery-pack cable to the motor. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 28...
  • Page 29 To mount the battery pack: 1. Secure the mounting bracket to the wall or window jamb using appropriate mounting hardware (not supplied). The motor side of the bracket must be mounted closest to the motor. 29 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 30 To remove the decorative cover, squeeze the decorative cover near the end where the motor exits and then pull the cover away from the mounting bracket. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 30...

  • Page 31: Level And Center The Shade Assembly

    Fabric telescoping is when the shade fabric shifts to the left or right during operation. Telescoping typically occurs when the shade assembly is not level. Situations that may cause telescoping: The shade is not perfectly level. The shade bumps into objects while traveling up or down. 31 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...
  • Page 32 Fabric is telescoping to the left: Place the tape on the right side of the tube. Fabric is telescoping to the right: Place the tape on the left side of the tube. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 32...

  • Page 33: Motor Wiring

    Use cable ties to secure the cables to the loop on the bracket. Ensure that the cables and connectors do not make contact with the shade fabric. Making the Connections Wire the SG Wireless QMT® Shade Motor 33 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 34: Replace A Motor

    Replace a Motor The Crestron® CSM(I)-QMTDC-163-SG series QMT® shade motors can be removed and replaced. These replacement motors are available: CSM-QMTDC-163-1-SG-RPR/RPL CSMI-QMTDC-163-1-SG-RPR/RPL CAUTION: Roll up the shade fabric to prevent damage during this procedure. NOTES: A soft and clean work surface is required to perform this procedure.

  • Page 35: Replace The Motor

    2. Install the roller shade assembly and connect the motor wire. For details, refer to Installation on page 3. Test the motor direction, set the shade limits, and, if applicable, connect to the wireless network. For details, refer to Configuration on page 35 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 36: Mount Fascia

    NOTE: The fascia for battery-operated shades contains an extra battery pack mounting bracket on the end of the fascia opposite the motor. This bracket is used to help facilitate the removal of the fascia. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 36...

  • Page 37: Configuration

    Program the QMT® shade motor using the buttons on the motor. NOTE: The procedures described in this document can also be performed remotely using a control system. This section provides the following information: •   Test and Adjust Shade Limits •   Wireless Communications 37 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 38: Test And Adjust Shade Limits

    To adjust the lower limit: 1. Press and hold SET for 4 seconds to enter Limit Setup mode. The LED alternates between amber and green. 2. To begin lower limit setup, press DN. The green LED flashes. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 38...
  • Page 39 5. If the lower limit is not set, the motor automatically enters Limit Setup mode for the lower limit. To set the lower limit, refer to step 3 in the procedure above. 39 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 40: Wireless Communications

    To join a wireless network: NOTE: A device can be acquired by only one gateway. 1. Put the gateway into Acquire mode from the unit itself, the Web UI, Crestron Home® Setup app, or from Crestron Toolbox. NOTE: In an environment where multiple gateways are installed, only one gateway should be in Acquire mode at any time.
  • Page 41 Ensure the gateway is in Acquire mode and within range before attempting the acquire process again. 3. Once all devices have been acquired, take the gateway out of Acquire mode. Refer to the gateway’s manual for details. 41 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 42: Leave A Wireless Network

    The device is communicating with the gateway but the gateway is not communicating with times the control system. Flashes twice The device was previously joined to the network but is not communicating with the gateway. Flashes once The device is not joined to the network. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 42...

  • Page 43: Operation

    Operation This section provides the following information: •   Controls and Indicators •   LEDs 43 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 44: Controls And Indicators

    Controls and Indicators The Crestron QMT® shade motors have UP, SET, and DN (down) push buttons that are used to program the shade. The shade motors have a multicolor LED that lights red, amber, green, blue, or white to provide confirmation, operating mode, and error state feedback. The UP button is located closest to the LED, the SET button is the second button from the LED, and the DN button is the third button from the...

  • Page 45: Leds

    The motor is in Identify mode. off) Slow flash (1/2-second on, 1/2-second Green The motor is moving from a local button press. off) Solid Green The motor is communicating with the control system program. 45 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206B...

  • Page 46: Troubleshooting

    Use the following sections to view corrective actions for possible issues and error states. System Diagnostics The following table provides corrective action for possible issues. If further assistance is required, please contact Crestron Support. Crestron QMT Shade Motor Troubleshooting Trouble Possible Cause(s) Action The motor cannot be There is no power provided to...

  • Page 47: Error State

    Error State Crestron QMT shade motors display error codes using the red LED on the interface. The LED flashes a pattern to indicate the error. NOTE: The error code does not flash while the motor is in a sleep state. If the error state is still active when the motor wakes up, the LED will continue to flash the code.

  • Page 48: Resources

    Resources The following resources are provided for the CS-SHADE-ROLLER-BATT. NOTE: You may need to provide your Crestron.com web account credentials when prompted to access some of the following resources. Crestron Support and Training Crestron True Blue Support Crestron Resource Library Crestron Online Help (OLH) Crestron Training Institute (CTI) Portal...
  • Page 49 This page is intentionally left blank. Product Manual — Doc. 9206B CS-SHADE-ROLLER-BATT • 49...
  • Page 50 Crestron Electronics, Inc. Product Manual — Doc. 9206B 15 Volvo Drive, Rockleigh, NJ 07647 06/14/23 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
