Water Sensor 7 Pro user guide (ZWA019)
Modified on: Thu, 3 Sep, 2020 at 12:18 AM

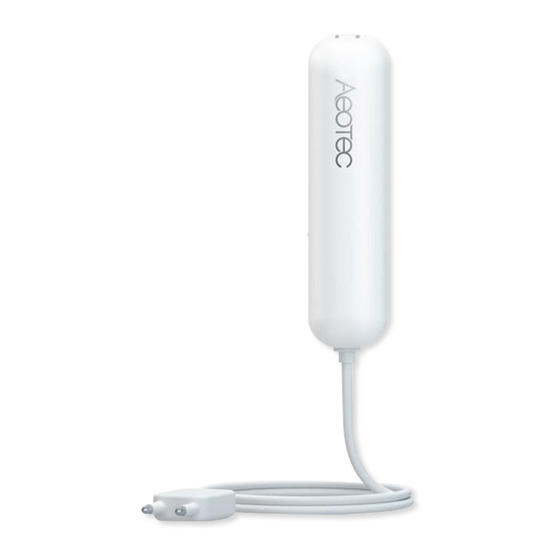

Aeotec Water Sensor 7 Pro.
Aeotec Water Sensor 7 has been crafted as a safety sensor to help detect and prevent floods and water leaks using
Z-Wave Plus. It is powered by Aeotec's
and S2 framework. You can find out more about
following that link.
To see whether Water Sensor 7 is known to be compatible with your Z-Wave system or not, please reference our
gateway comparison
(http://aeotec.com/z-wave-gateways)
(https://aeotec.freshdesk.com/a/solutions/articles/6000218908-door-window-sensor-7-technical-specifications-)
viewed at that link.
Familiarize yourself with your Water Sensor 7.
Package contents:
1.
Sensor Unit.
2.
Cover.
3.
Double-Sided Tape large (×2).
4.
Screws (×4).
5.
Dowels( x4).
Gen7
(https://aeotec.com/z-wave-home-automation/z-wave-gen7.html)
Water Sensor 7
listing. The
(https://aeotec.com/z-wave-door-window-sensor)
technical specifications of Water Sensor 7
technology
by
Z-Wave
can be
Advertisement
Related Manuals for Aeotec 7 Pro
Summary of Contents for Aeotec 7 Pro
- Page 1 Modified on: Thu, 3 Sep, 2020 at 12:18 AM Aeotec Water Sensor 7 Pro. Aeotec Water Sensor 7 has been crafted as a safety sensor to help detect and prevent floods and water leaks using Z-Wave Plus. It is powered by Aeotec’s...
- Page 2 Important safety information. Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.
-
Page 3: Quick Start
Quick Start Installation of Water Sensor 7 Pro. Open the cover by pressing the clip on the side and pulling the cover upwards. Insert a fresh 1 * 1/2 AA battery, but pay attention to the polarity Install your Water Sensor 7 Pro. - Page 4 Functions of Water Sensor 7 Pro. Water leak Once installed, this sensor will report wet or dry via Notification Command Class when this devices is wet or removed from water. Notification Report Type: Unknown (0x05) Value: Wet (0x02) or Dry (0x00) Tamper Tamper alarm will be sent if the cover is removed.
-
Page 5: Advanced Functions
If either Tamper Switch 1 or 2 is activated the device blinks red one time with ½ second duty cycle if within range of Controller. Tampering The device blinks red three times with ½ second duty cycle if out of range of Controller When operation button is Short Pressed the LED illuminates red Water protection... -
Page 6: Association Groups
Remove your Water Sensor 7 from Z-Wave network. Your sensor can be removed from your Z-Wave network at any time. You'll need to use your Z-Wave network's main controller/gateway. To do this, please refer to the part of your gateways respective manual that tells you how to remove devices from your network. - Page 7 Parameter: 3 Size: 1 Byte Default Value: 7 Description: This parameter defines when the red LED will indicate events. Disabling all indications may extend battery life. (values 1 + 2 + 4 summarized) 0 - No indications 1 - Water Leakage Status Change 2 - Wake Up (1 x click) 4 - Device tampering 4.
- Page 8 Size: 1 Byte Default Value: 0 Description: This is the BASIC command value sent in case of Off event. 0 - 99 - Value 255 - On 9. Time Delay of On command frame Parameter: 9 Size: 2 Byte Default Value: 0 Description: On command is sent after a delay defined in this parameter.
- Page 9 Parameter: 17 Size: 1 Byte Default Value: 5 Description: This value defines the minimum change of humidity to cause an unsolicited report of humidity to the central controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the humidity changes.
