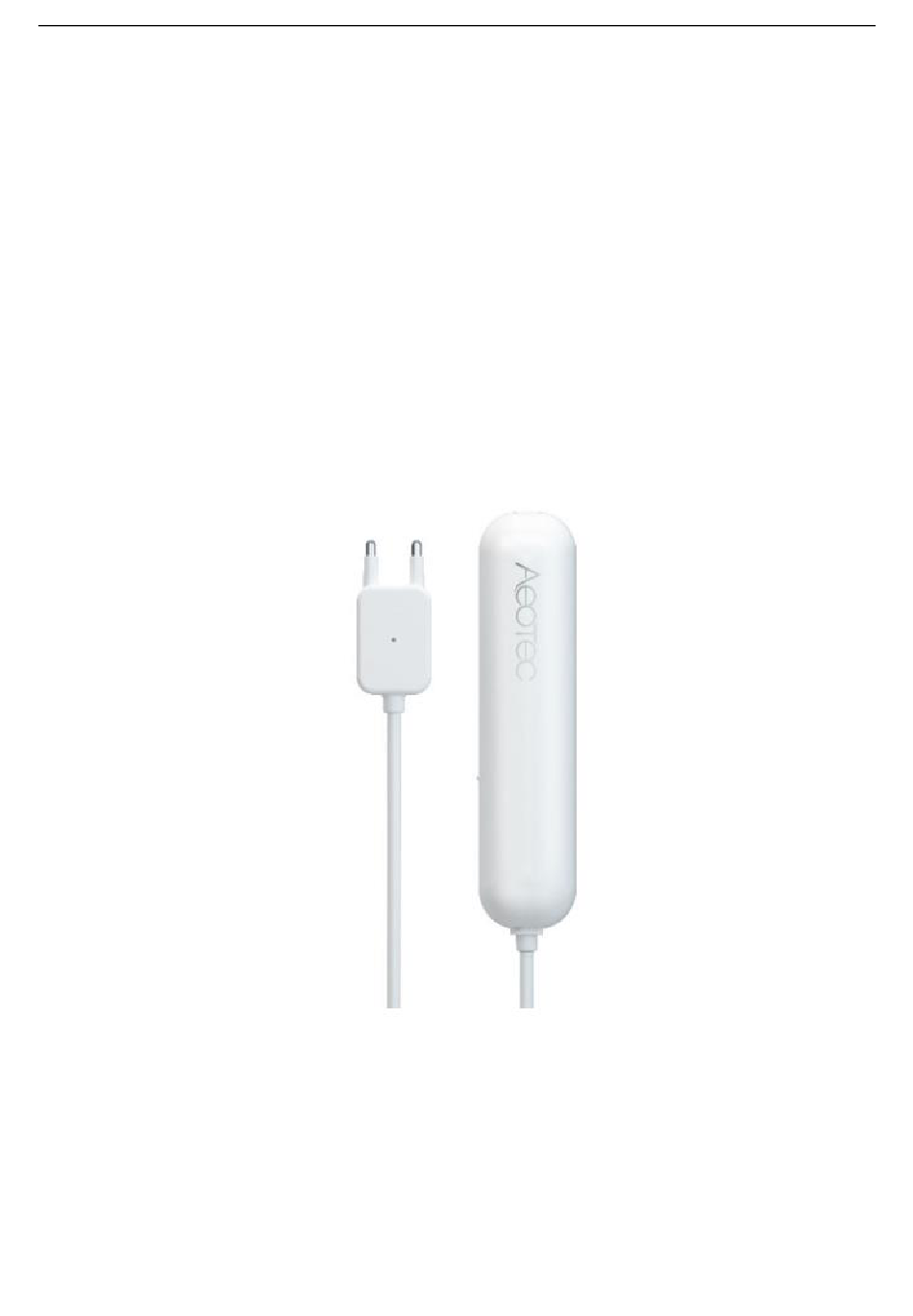

- Page 1 AEOTEC User Manual User Manual Water Sensor 7 Pro...
- Page 2 AEOTEC User Manual REVISION RECORD Version Date Brief description of changes 2021.10.08 First revision.
-
Page 3: Table Of Contents
AEOTEC User Manual Table of Content OVERVIEW ..................................1 SPECIFICATIONS ................................2 Structural ..................................2 Hardware ..................................2 Software ..................................2 QUICK START .................................. 4 Important safety information ............................4 Optimally placing the product ............................4 How to install the product ............................. 4 How to add the product .............................. -
Page 4: Overview
The sensor is easily retrofittable. Thanks to its slim design the AEOTEC Water Sensor 7 Pro can be installed in any bathroom, behind a kitchen sink or in any other tight space. The sensor just has to be installed on the wall and the sensor probe must be put on the floor. -
Page 5: Specifications
AEOTEC User Manual 2 SPECIFICATIONS Structural Parameter Value Product Identifier ZWA019 Dimensions 28x95x35mm Weight Main Part: 20g Water Probe: 3g Color White Usage For indoor use. Operating Temperature 32~104°F (0~40°C) Relative Humidity 8%~80% Hardware Parameter Value Z-Wave Module ZGM130S Z-Wave TX Power... - Page 6 AEOTEC User Manual Association Support. Refer to Section 4.7 Association Group Info. Factory Reset Support. Refer to Section 3.7 How to factory reset. Power-down Memory Support. All command settings will stay unchanged even power down. Sensor State Report Support. Send out notification via Group 1 when Water Leakage Start or Stop.
-
Page 7: Quick Start
AEOTEC User Manual 3 QUICK START Important safety information Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. -
Page 8: How To Factory Reset
AEOTEC User Manual How to factory reset This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable. Once Cover is removed and the tamper switch is tripped, push the tamper for 5 seconds until the RED LED blinks once. -
Page 9: Software Function Definition
AEOTEC User Manual 4 SOFTWARE FUNCTION DEFINITION User Behavior Interaction User behavior Out of the Z-Wave network In the Z-Wave network Power OFF Cut the power. Cut the power. Power ON Send Inclusion Requests for SmartStart Send Wake Up Notification. -
Page 10: Supported Command Classes
AEOTEC User Manual reset to its factory default state. And it will perform the reset operation regardless of whether or not the delivery of the Device Reset Locally Notification is successful. Supported Command Classes Securely 2 added Command Class Version... -
Page 11: Version
AEOTEC User Manual Version Parameter Value Z-Wave Protocol Library Type 0x03 Z-Wave Protocol Version 0x07 Z-Wave Protocol Sub Version 0x0E Firmware 0 Version 0x02 [Z-Wave Chip Firmware Version] Firmware 0 Sub Version 0x00 [Z-Wave Chip Firmware Sub Version] Hardware Version... -
Page 12: Binary Sensor
AEOTEC User Manual Binary Sensor Sensor Type Sensor Value Description Water 0x06 0xFF Water leakage Detected Water 0x06 0x00 Water leakage does not detect 4.10 Multilevel Sensor Sensor Type Support Scale Measure Range Temperature 0x01 Celcius (°C) -10 to 65°C (+- 1°C) Fahrenheit (°F)
