Movement EDGE SHOULDER Assembling Manual page 71

ASSEMBLE

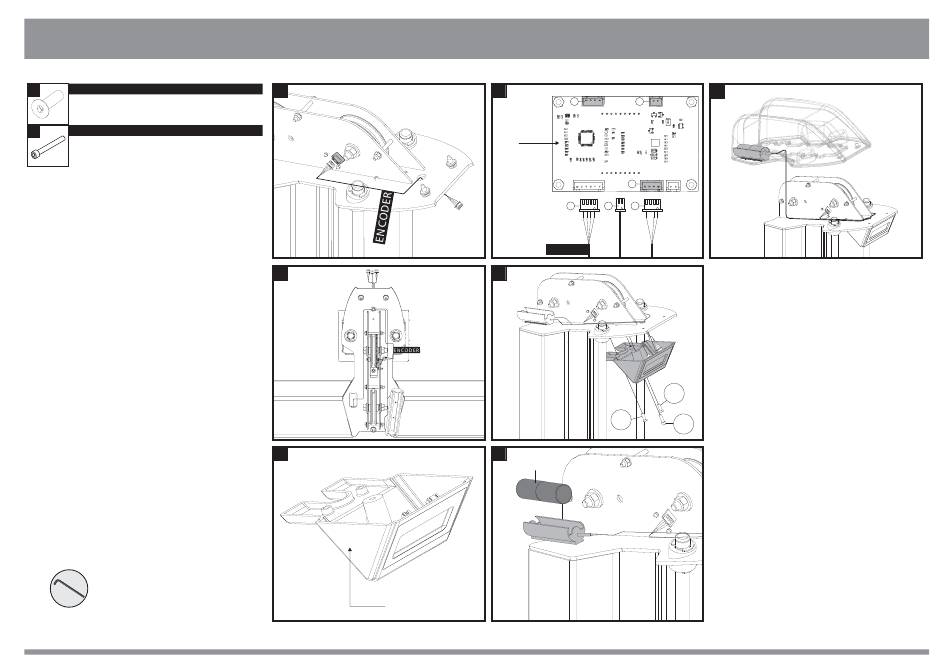

STEP 17 - ASSEMBLE THE COUNTER (OPTIONAL)
45 NAME
Internal flat head hex screw
M6X16
46 NAME
Internal Hex Cyl. Head. screw
M6X20
Allen n°8
Allen n°5
QTY
1
2x
QTY
1x
2
3
Display
4
1 2
Rear view of
the display
3
1 2 3
ENCODER
5
45
6
Batteries
34
7
OBS: Place the baterry dor inside the with
the velcro before mount the shroud in the
tower
45
46
