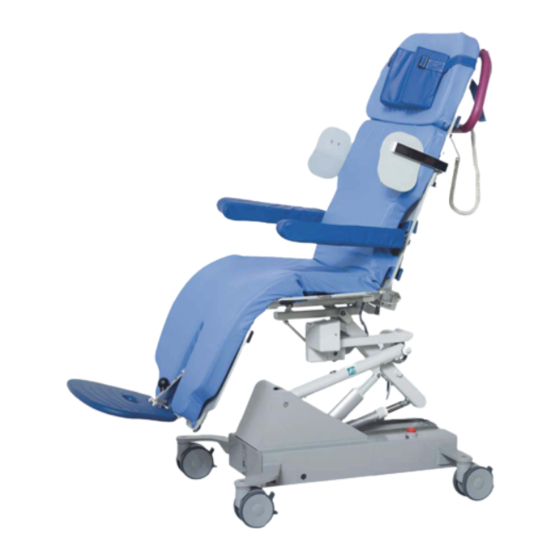

Arjohuntleigh Sara Combilizer Quick Reference Manual

QUICK REFERENCE GUIDE - EMERGENCY FUNCTIONS
Sara Combilizer
Pinch protection bar
Press down the Pinch protection bar to
automatically stop any downward movement.
Emergency function box
1
Located on the lower frame
(right hand side).
Tilt table release function
1
Quick lowering of patient from standing to horizontal position.
Two caregivers may be required.
Emergency stop buttons
1
Press Emergency stop button(s) to cut
all power to all electrical components.
2
Open cover.
A
08.KC.04EN_4 • 05/2020 • Page 1/2
3
A
Press Main power switch (A) together with one of the
other buttons at the same time.
• Up: Raise the Sara Combilizer (B)
• Down: Lower the Sara Combilizer (C)
• Stretcher: Change from chair to stretcher position (D).
2
A
Tilt table release button (A)
Lowering procedure label (B)
2
Activate:
Push down.
Deactivate:
Turn clockwise
until it pops
back up.
B C D
B
B
