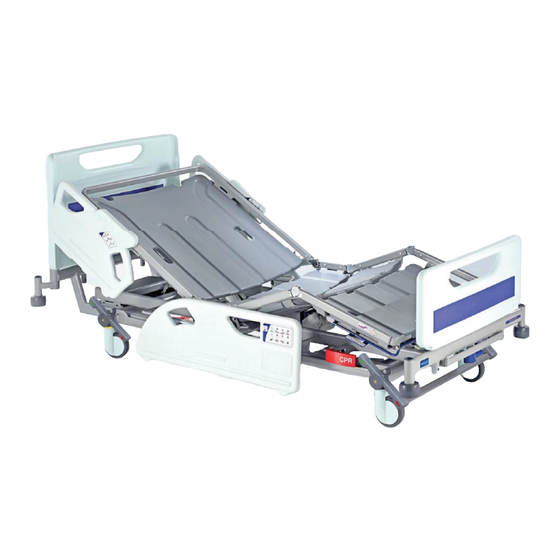

Arjohuntleigh Enterprise 8000X Quick Reference Manual

QUICK REFERENCE GUIDE
Enterprise 8000X (E8X)
This Quick Reference Guide (QRG) is intended to assist the user in understanding the basic functions of this medical bed.
The QRG does not replace the safety warnings, cautions and other important information provided in the Instructions for Use
(IFU) supplied with the equipment; copies of the IFU are available on request from Arjo.
understood the IFU before using this medical bed.
product safely.
Place the mattress platform in the low height position when the patient is unattended.
Product overview
Head board
Head end split side rail
Caregiver controls
Backrest section
Patient controls
Attendant Control Panel (ACP)
Seat section
Thigh section
Technical Data
Safe Working Load (SWL):
Maximum patient weight:
Recommended patient height:
Product weight (without mattress):
Operating temperature:
Standard mattress size:
Liquid ingress protection:
Calf section
Foot board
Accessory socket
Roller buffer
Bed extension locking handle
Bed stripper (linen shelf)
Brake bar
Calf extension sheet
815-514EN_04 · 06/2019 · Page 1/4
Mattress extension catch bar
CPR release handle
Foot end split side rail
Head end brake pedal (optional)
Lifting pole socket
250kg (550lbs)
185kg (407 lbs)
146 to 190cm (57 to 74 ins.)
150kg (330 lbs)
5°C to 40°C (41°F to 104°F)
202 x 88 x 18 cm (79.5 x 34.6 x 7 ins)
IPX4
