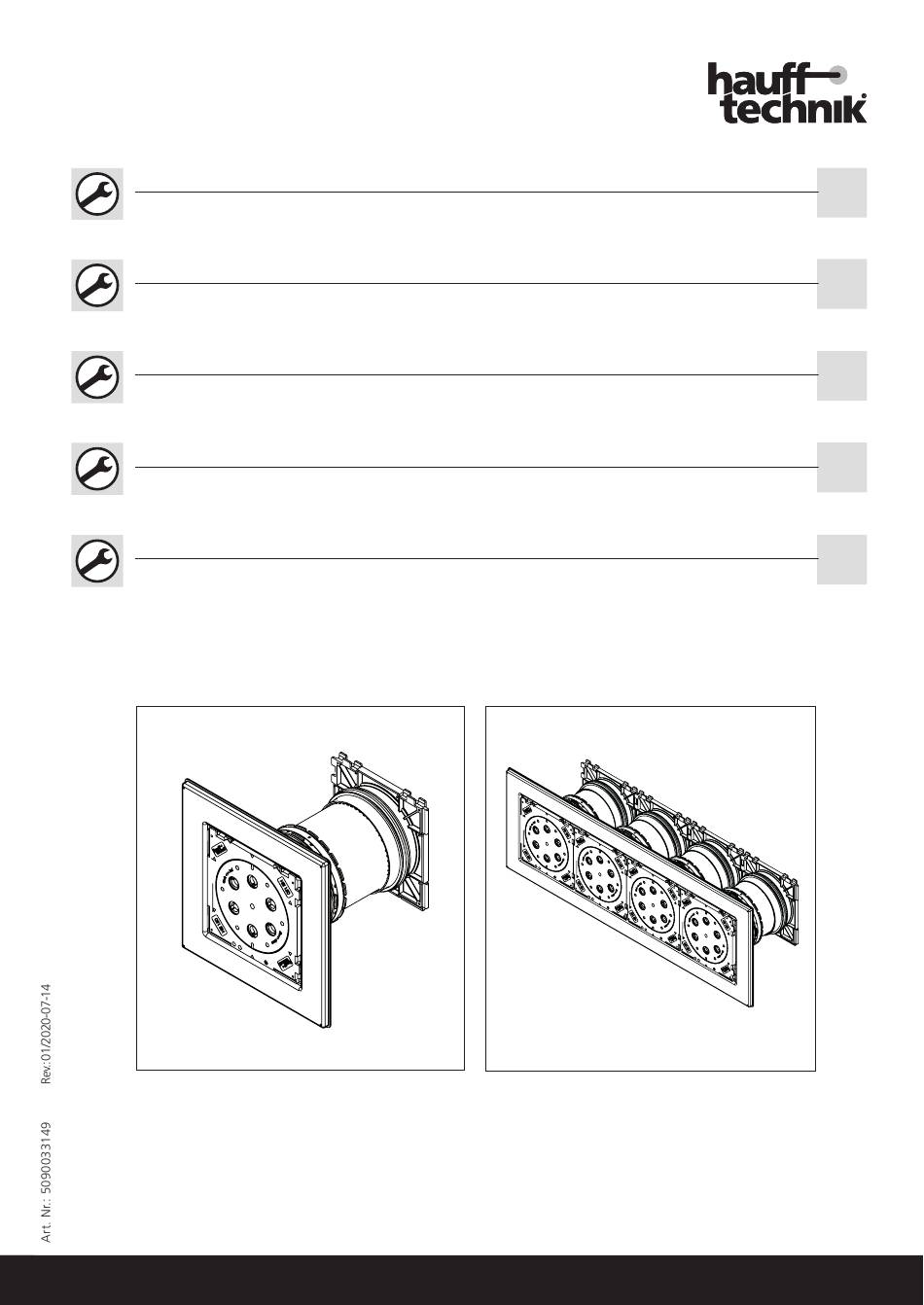

Montageanleitung - Kabeldurchführungen mit Anspachtelfl ansch -
HSI 150-K(2)-AF/X / HSI 150-1x4-K(2)-AF/X
- PMBC (Flüssigabdichtung)
Assembly instructions - Cable entries with integrated patch fl ange -
HSI 150-K(2)-AF/X / HSI 150-1x4-K(2)-AF/X
- PMBC (liquid seal)
Instruction de montage - passe-câbles avec bride pour talochage -
HSI 150-K(2)-AF/X / HSI 150-1x4-K(2)-AF/X
- PMBC (étanchéité liquide)
Montagehandleiding - kabeldoorvoeren met pleisterfl ens -
HSI 150-K(2)-AF/X en HSI 150-1x4-K(2)-AF/X
- PMBC (vloeistofafdichting)
Instrukcja montażu - przepusty kablowe z kołnierzem do łączenia -
HSI 150-K(2)-AF/X / HSI 150-1x4-K(2)-AF/X
- PMBC (uszczelnienie płynne)
Przed rozpoczęciem montażu przeczytaj instrukcję obsługi i przechowuj ją w odpowiednim miejscu!
z.B.: HSI150-K(2)-AF/X
Vor Beginn der Montage Anweisung lesen und gut aufbewahren!
Read the instructions prior to installation and keep them in a safe place!
Lire les instructions avant le montage et bien les conserver!
Voor het begin van de montage de handleiding lezen en goed bewaren!
z.B.: HSI150-1x4-K(2)-AF/X
www.hauff-technik.de
DE
EN
FR
NL
PL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HSI 150-K-AF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

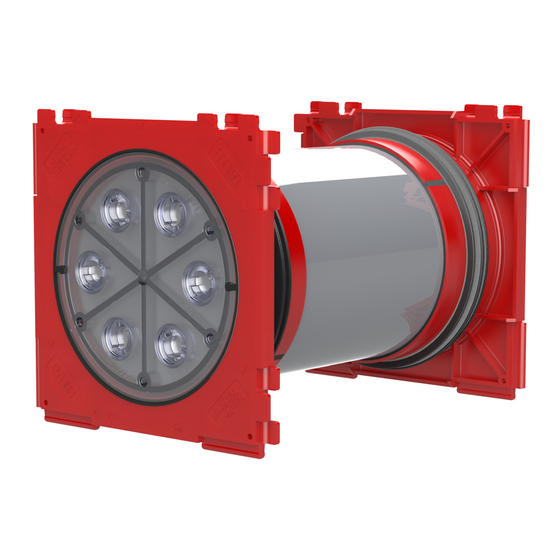

Summary of Contents for Hauff-Technik HSI 150-K-AF Series
