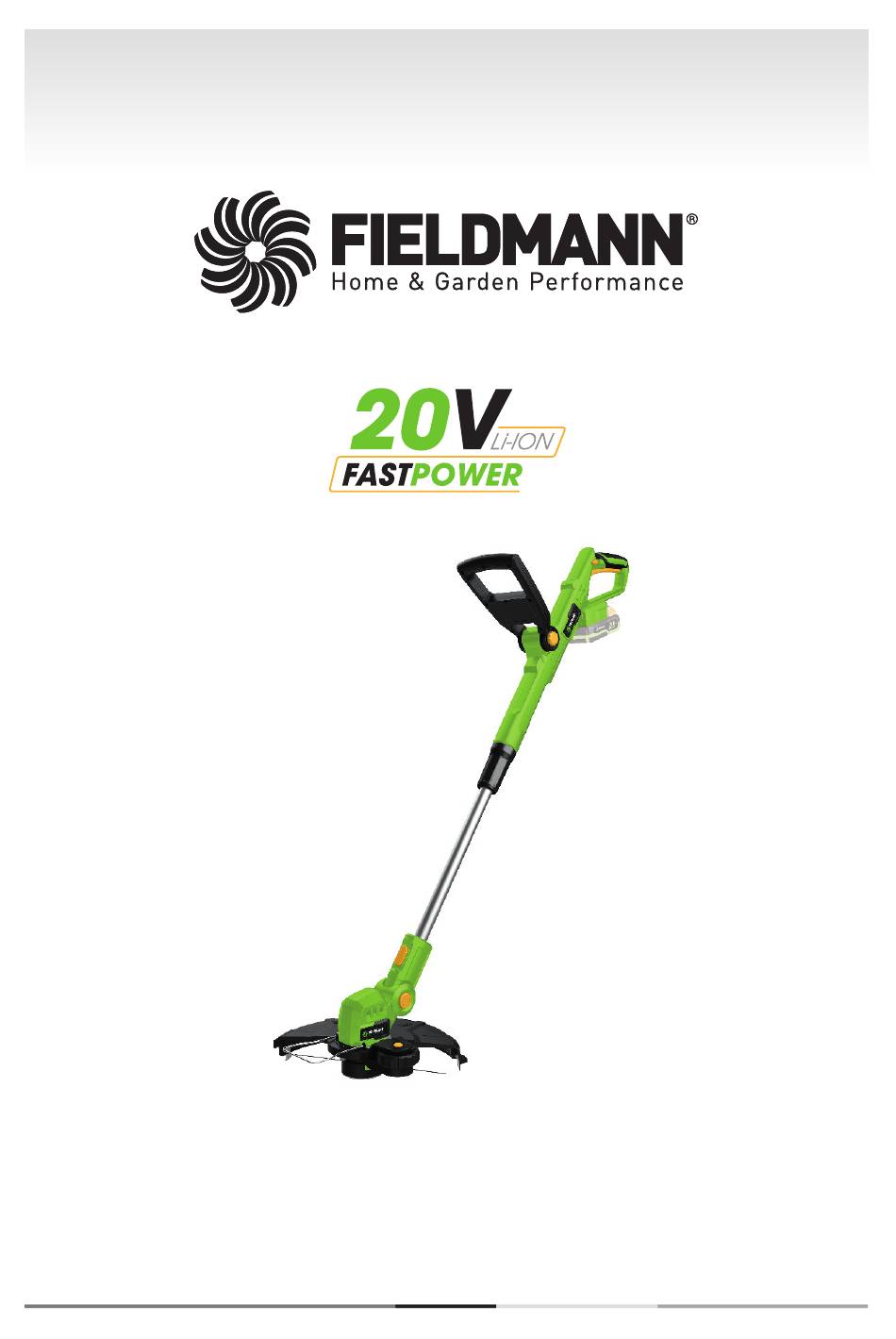

- Page 1 FZS 70105-0...
- Page 2 English ....................................7–20 Čeština ..................................... 21–36 Slovenčina ..................................37–52 Magyarul ..................................53–68 Polski ....................................69–84 FZS 70105-0...

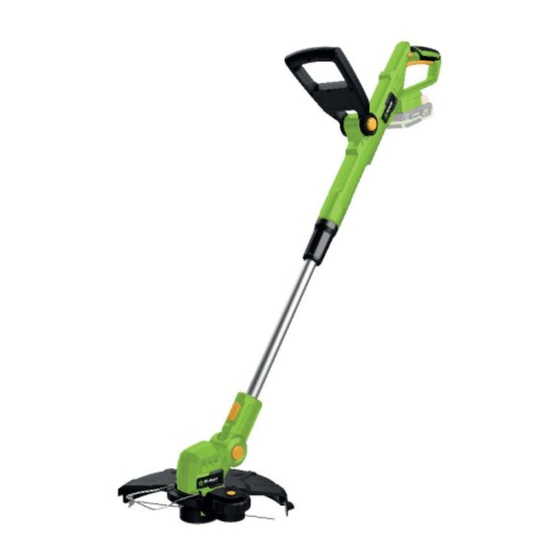

- Page 3 (not included) (not included) CORDLESS GRASS TRIMMER USER’S MANUAL...
- Page 4 FZS 70105-0...
-
Page 5: Table Of Contents
Contents Cordless grass trimmer USER'S MANUAL Thank you for purchasing this garden cordless grass trimmer. Before you start using it, please read this user manual carefully and save it for future use. CONTENTS 1. GENERAL SAFETY REGULATIONS ........................... 6 2. SYMBOLS ................................... 7 3. -
Page 6: General Safety Regulations
Following the instructions in the included user’s manual is a prerequisite for the proper use of the trimmer. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZS 70105-0... -
Page 7: Symbols
Symbols 2. SYMBOLS Risk of injury when instructions are not followed. Danger of injury! Beware of hurled-away objects. Keep bystanders away. Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m). This is particularly valid for children and animals. -
Page 8: Description Of The Machine
Turn the grass trimmer upside down. Mount the protective hood on the motor head Then fi x the safety guard with 2 screws (20). Fitting the Flower Guard (See Fig. 3) Attach the fl ower guard (8) to the motor housing. Fig. 2 Fig. 3 FZS 70105-0... - Page 9 Assembly and operation Fitting the Auxiliary handle (See Fig. 4) Fig. 4 Push the button (14), and mount the auxiliary handle into the operating handle. Rotate the auxiliary handle to the required angle. Release the button and ensure the handle clicks into a locked position.
- Page 10 Setting the length of the unit (See Fig. 7) Fig. 7 Slacken the Shaft Adjustment Collar (5) Pull the telescopic pole to the desired length. Retighten the Shaft Adjustment Collar (5) again. FZS 70105-0...
- Page 11 Assembly and operation Setting the angle of the cutting head (See Fig. 8) Fig. 8 Press in and hold the locking button (11). Tilt the cutting head (10) to the required position. Release the locking button (11) and ensure the head clicks into a locked position.
- Page 12 Pay special attention when performing the work close to trees and bushes. The cutting head could damage sensitive bark, and damage fence posts. Use the fl ower protector to avoid cutting device contact with hand objects such as walls and stones. FZS 70105-0...
- Page 13 Assembly and operation Replacing the Nylon Line Spool (See Fig. 12 & 13) WARNING! Before performing any assembly. Always ensure that the battery pack has been removed. If the nylon cutting line is broken and the nylon spool needs replacing: Press together the both locking devices at the spool cover and remove the spool cover, remove the old spool.
-
Page 14: Safety Instructions
Do not trim against solid objects. This could lead to injury or damage to the grass trimmer. ATTENTION! Mowing parts rotate even after the trimmer is turned off. Do not attempt to stop the string (nylon) with your hand! Let the string run out on its own. FZS 70105-0... - Page 15 Safety instructions Do not use the trimmer to cut grass that doesn’t contact the ground such as grass growing on stones, walls etc. Keep off pavement, gravel paths etc. while is string is still rotating. Safety instructions for the battery and charger Battery Never open the battery.
-
Page 16: Technical Data
Technical data 6. TECHNICAL DATA MODEL NO FZS 70105-0 No-load speed 7500 rpm Battery voltage 1 × 20 V Telescopic handle Cutting width 30 cm Cutting line dia. 1.6 mm Accessories Item number Accessory FDUZ 79020 Battery pack 2 Ah... -
Page 17: Maintenance And Storage
Maintenance and storage | Troubleshooting 7. MAINTENANCE AND STORAGE Maintenance When fi nished, remove the battery from the string trimmer. Only use spare parts and accessories approved by the manufacturer. To keep the trimmer in a perfect condition, please store its parts - coils - in a closeable bag. Disconnect the battery before cleaning. -
Page 18: Disposal
This product fulfi ls all basic requirements of the EU directives that apply to it. Text, design and technical specifi cations can change without prior notice and we reserve the right for their change. User manual in the original language. FZS 70105-0... -
Page 19: Declaration Of Conformity
Declaration of conformity 10. DECLARATION OF CONFORMITY CORDLESS GRASS TRIMMER USER’S MANUAL... - Page 20 FZS 70105-0...
