    Table of Contents Electric string trimmer USER'S MANUAL Thank you for purchasing this electric string trimmer. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ......................... 4 2.
  • Page 3: General Safety Regulations

    User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZS 2306-E...
  • Page 4: Explanation Of The Instruction Labels On The Machine

    Explanation of instruction labels on the machine 2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE Warning! Read the user's manual before using. Keep other persons at a suffi cient distance! Do not use in rain or in wet conditions. Always wear eye protection.
  • Page 5 In case of damage to the power cord, disconnect the tools from the mains immediately. Be careful about items thrown off by the appliance. Keep the nearby standing persons at a safe distance Be careful not to be hit by defl ect objects. FZS 2306-E...
  • Page 6: Safety Instructions

    Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! Adhere to safety rules when using this power tool. For your safety and the safety of other person, please read these instructions before using this appliance. Please keep these instructions for possible future use. Wear safety glasses while working with this appliance.
  • Page 7: Description Of The Power Tool

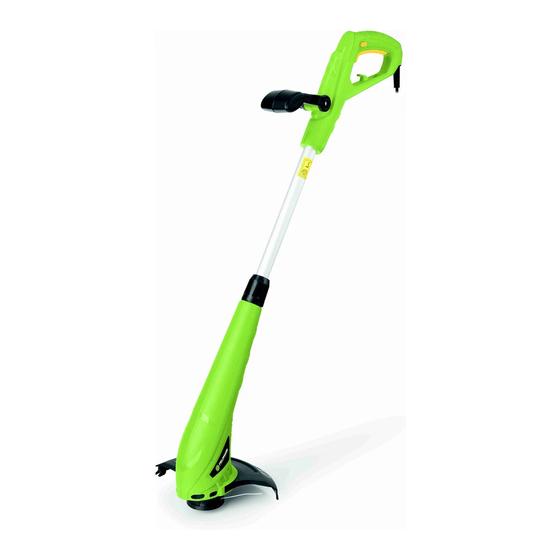

    Description of the power tool 4. DESCRIPTION OF THE POWER TOOL 1. Start/stop trigger 2. Telescopic handle lock 3. String trimmer head guard 4. Handle Fig. 1 FZS 2306-E...
  • Page 8: Assembly

    Assembly 5. ASSEMBLY Insert the string head plastic cover on the motor bottom section and secure with the attached screw, see Fig.2. Fig. 2 TELESCOPIC HANDLE ADJUSTMENT Release the lock nut. Fig. 3, point 1. Pull out or retract the handle’s bar as needed Tighten the lock nut Fig.
  • Page 9 WARNING Use only good quality nylon string trimmer line with a diameter of 1.4 mm. Never use wire or wire- reinforced string trimmer line instead of the nylon string trimmer line. Only use the original string trimmer head. FZS 2306-E...
  • Page 10: Starting The Trimmer

    Starting the trimmer 6. STARTING THE TRIMMER POINTS TO BE CHECKED BEFORE STARTING THE WORK 1. Check whether any screws, nuts and installation elements are loose. Tighten any loose screws. 2. Make sure that the plastic head guard is securely fastened in place. 3.
  • Page 11: Cutting

    MUST USE APPROPRIATE EYE, HEARING, FACE, FOOT, LEG AND BODY PROTECTION. PERSONS LOCATED IN THE DANGER ZONE OR IN THE RISK ZONE AFTER THE DANGER ZONE MUST USE EYE PROTECTION AGAINST DEFLECTED OBJECTS. THE RISK IS REDUCED WITH INCREASING DISTANCE FROM THE DANGER ZONE. FZS 2306-E...
  • Page 12 Cutting CUTTING WITH THE NYLON STRING TRIMMER HEAD The string head is rotating CLOCKWISE. The string feeding is semi-automatic. While trimming, simply gently tap the head on the ground, which will push down the button on the underside of the head and the string trimmer line will slide out. The string trimmer line is then shortened to the maximum permitted length on the blade integrated in the plastic guard.
  • Page 13: Maintenance

    This appliance meets all the basic requirements of the EU directives. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. User manual in the original language. FZS 2306-E...
  • Page 14: Declaration Of Conformity

    Declaration of conformity ELECTRIC STRING TRIMMER USER’S MANUAL...
  • Page 15: Technical Specifications

    Cutting coverage ....................................25 cm Type of string trimmer head ............................Semi-automatic Idling speed....................................12,000 rpm Trimmer line diameter ..................................1.4 mm Weight ........................................1.7 kg Sound pressure level LpA: 74,65 dB(A), K=3 dB(A) Guaranteed sound power emission level ........................LwA: 96dB(A) Vibrations................................4.783m/s² K=1.5m/s² FZS 2306-E...
