Fieldmann FZS 2505 E User Manual

Electric string trimmer
Hide thumbs Also See for FZS 2505 E:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
FZS 2505 E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZS 2505 E and is the answer not in the manual?

Questions and answers

Related Manuals for Fieldmann FZS 2505 E

Summary of Contents for Fieldmann FZS 2505 E

  • Page 1 FZS 2505 E...

  • Page 2: Table Of Contents

    Table of Contents Electric string trimmer USER'S MANUAL Thank you for purchasing this electric string trimmer. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .......................... 4 2.

  • Page 3: General Safety Instructions

    The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZS 2505 E...

  • Page 4: Explanation Of Instruction Labels On The Power Tool

    Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Warning! Read the user's manual before using. Keep other persons at a sufficient distance away! Do not use in rain or in wet conditions. Always wear eye protection. ELECTRIC STRING TRIMMER USER'S MANUAL...
  • Page 5 In the event that the power cord is damaged, immediately disconnect it from the power supply. DANGER! Do not use the power tool if there are children, other persons or animals in your vicinity. Be careful not to be hit by deflect objects. FZS 2505 E...

  • Page 6: Safety Instructions

    Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! Adhere to safety rules when using this power tool. For your safety and the safety of other people, please carefully read these instructions before using this power tool. Please store these instructions for possible future reference.

  • Page 7: Description Of The Power Tool

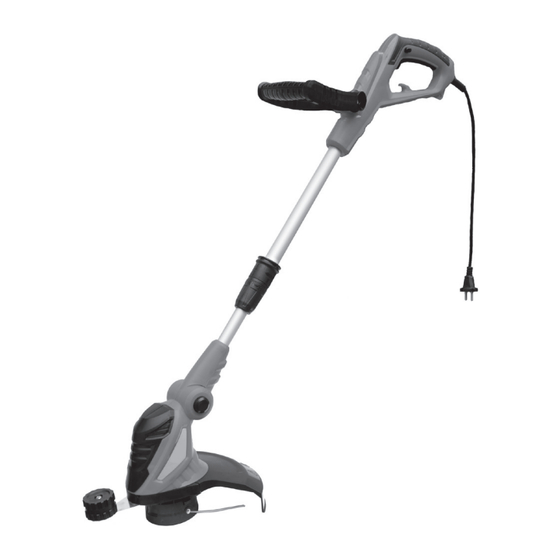

    4. DESCRIPTION OF THE MACHINE 1. Adjustable handle 2. Start/stop trigger 3. Trigger safety lock 4. Power cord 5. Telescopic handle lock 6. Cutter angle adjustment lock 7. String trimmer head cover 8. String trimmer head 9. Protective guide Fig. 1 FZS 2505 E...

  • Page 8: Assembly

    Assembly 5. ASSEMBLY Unscrew the plastic cover of the string trimmer, connect the protective guide against unwanted cutting of flowers to it and connect the whole cover to the string mower engine, see Fig 2. Fig. 2 Connect the adjustable handle, see Fig. 3. First remove the screw from the handle, place the handle on the mower and fasten with the screw.
  • Page 9 Use only good quality nylon string trimmer line with a diameter of 1.4 mm. Never use wire or wire- reinforced string trimmer line instead of the nylon string trimmer line. Only use the original string trimmer head. FZS 2505 E...

  • Page 10: Starting The Trimmer

    Starting the trimmer | Cutting 6. STARTING THE TRIMMER POINTS TO CHECK BEFORE STARTING WORK 1. Check whether any screws, nuts and installation elements are loose. Tighten any loose screws. 2. Make sure that the plastic head guard is securely fastened in place. 3.
  • Page 11 The protective guard on this tool cannot stop objects that ricochet off hard surfaces. WARNING Do not trim in places where there are wires and wire mesh. Use protective aids. Do not trim in locations where you cannot see what the trimmer is trimming. FZS 2505 E...

  • Page 12: Maintenance

    Maintenance | Disposal 8. MAINTENANCE The string trimmer line may dry out over time. To maintain it in excellent condition, store spare pre-wound spools or loose trimmer line in a plastic bag with a spoon of water. For cleaning the power tool, use only gentle soap and a damp cloth. Do not submerge the power tool in water or spray it with a hose.

  • Page 13: Declaration Of Conformity

    Declaration of Conformity EU DECLARATION OF CONFORMITY 10. DECLARATION OF CONFORMITY Product / brand: Electric Lawn Trimmer / FIELDMANN EU DECLARATION OF CONFORMITY Type / model: FZS 2505-E as factory model DT2140 AC 230-240V; 50 Hz; 550W; Class II; IPX0...

  • Page 14: Technical Specifications

    Technical specifications 11. TECHNICAL SPECIFICATIONS Model ......................................FZS 2505 E Voltage/Frequency ..............................230-240V~/50Hz Electric motor power input ................................550 W Cutting coverage ....................................30 cm Type of string trimmer head ............................Semi-automatic Idling speed....................................10,000 rpm Trimmer line diameter ..................................1.4 mm Weight without fuel and cutting tools ............................2.3 kg Sound pressure level..........................
  • Page 15 Notes FZS 2505 E...
  • Page 17 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá­ Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon­ ruku trvání 24 měsíců od převzetí výrobku kupu­ 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
  • Page 18 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 19 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
  • Page 20 Garantijos taisyklés Warunki gwarancji Šiam gaminiui suteikiama 24 ménesi4 nuo isigi­ Produkt obj�ty jest 24 - miesi�cznij gwarancjij, po­ jimo datos garantija. Garantija apsiriboja žemiau czqwszy od daty zakupu przez klienta. Gwarancja jest pateikiamomis Sijlygomis. Garantija skirta tik ga­ ograniczona tylko do przedstawionych dalej warun­ miniams, skirtiems buitiniam naudojimui.
