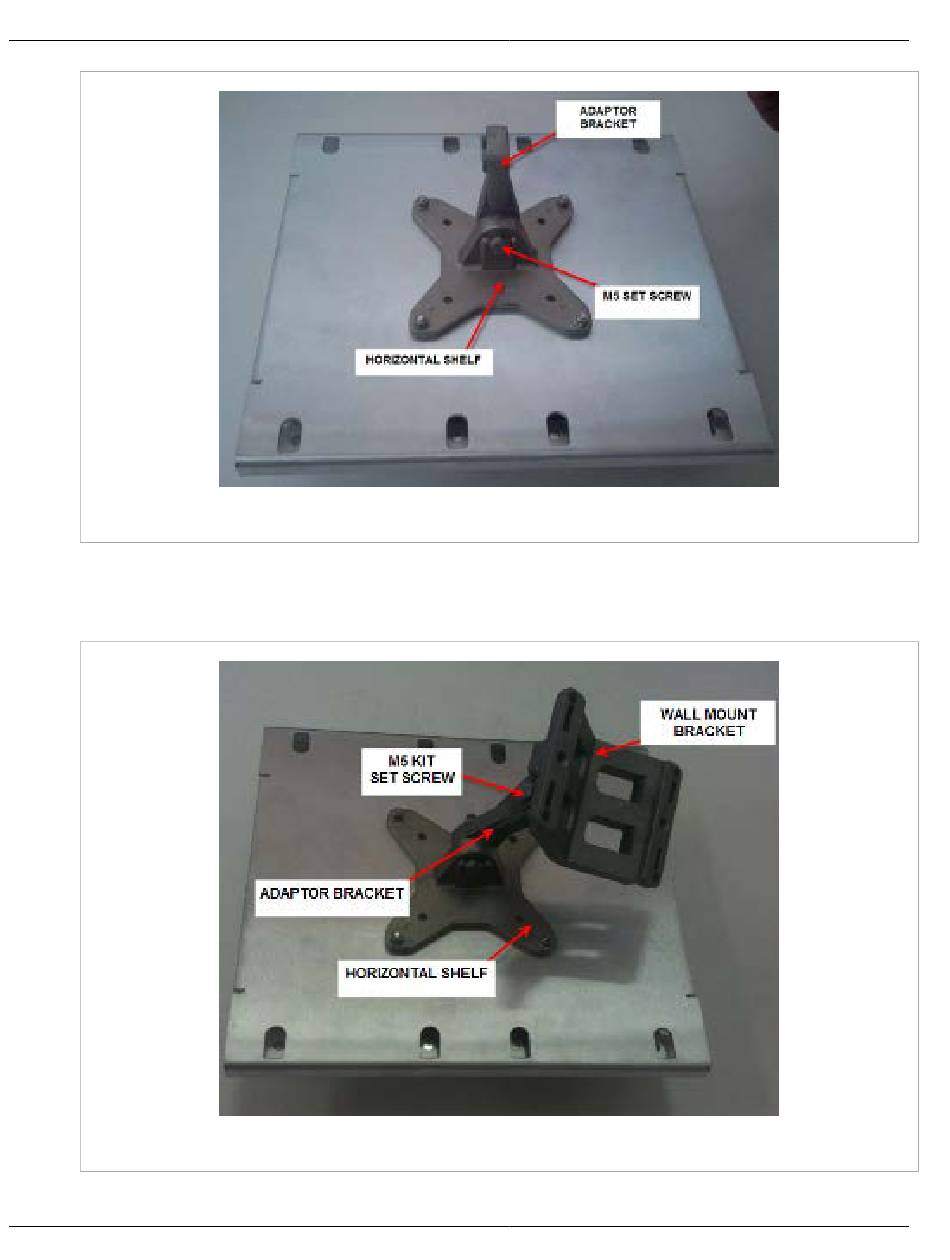

Figure 23: Adaptor Bracket Mounted to Adaptor Plate
7.
Attach the wall mount bracket to the adaptor bracket.
8.
Secure the wall mount bracket with Flat Washer (M5), Spring Washer (M5), and Set Screw (M5) as shown in
Figure
24.
Figure 24: Wall Mount Bracket Assembly
2.3GHz Band Cavity Filters Installation
Chapter 3
Installation Procedures
27
