Chapter 3
Installation Procedures

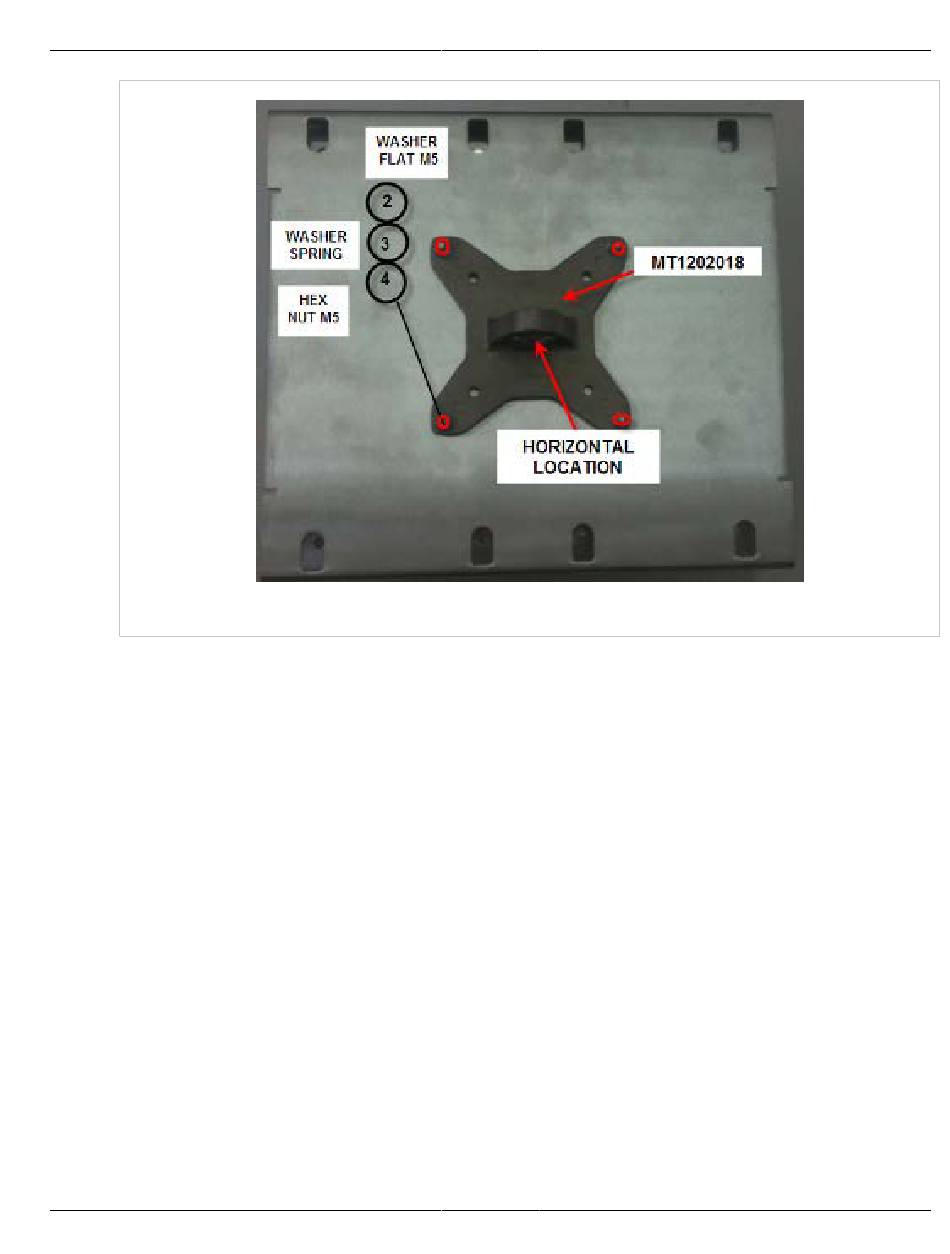

Figure 22: Adaptor Plate Mounted on Baseplate
5.
Insert the adaptor bracket into the adaptor plate.
6.
Secure the adaptor bracket with Set Screw (M5) as shown in
26
Figure
23.
2.3GHz Band Cavity Filters Installation
RUGGEDCOM WIN7000
Installation Guide
