RUGGEDCOM WIN7000
Installation Guide
Procedure: Installing the WIN7000 on a Pole
1.
Select a mounting location on the pole.
2.
Assemble the fastening brackets to the mounting bracket using the 5/16" × 6" hex cap screws (Item 4), NF
16 hex nuts (Item 5), 5/16" flat washers (Item 6), and 5/16" spring washers (Item 7).
3.
Lift the base station by the eye bolts and secure it to the mounting bracket. At the top of the unit and
mounting bracket, use NC 1/4" × 1/2" hex screws (Item 8) and NC 1/4" flat washers (Item 9). At the bottom of
the unit and mounting bracket, use 5/16" flat washers (Item 6), 5/16" spring washers (Item 7), and NC 5/16" ×
1/2" screws (Item 13).
4.
Complete the wiring connections.
NOTE
Seal all connectors with self-fusing electrical tape or insulating putty suitable for use in the unit's
installation environment
Section 3.4.4
Wall Mounting

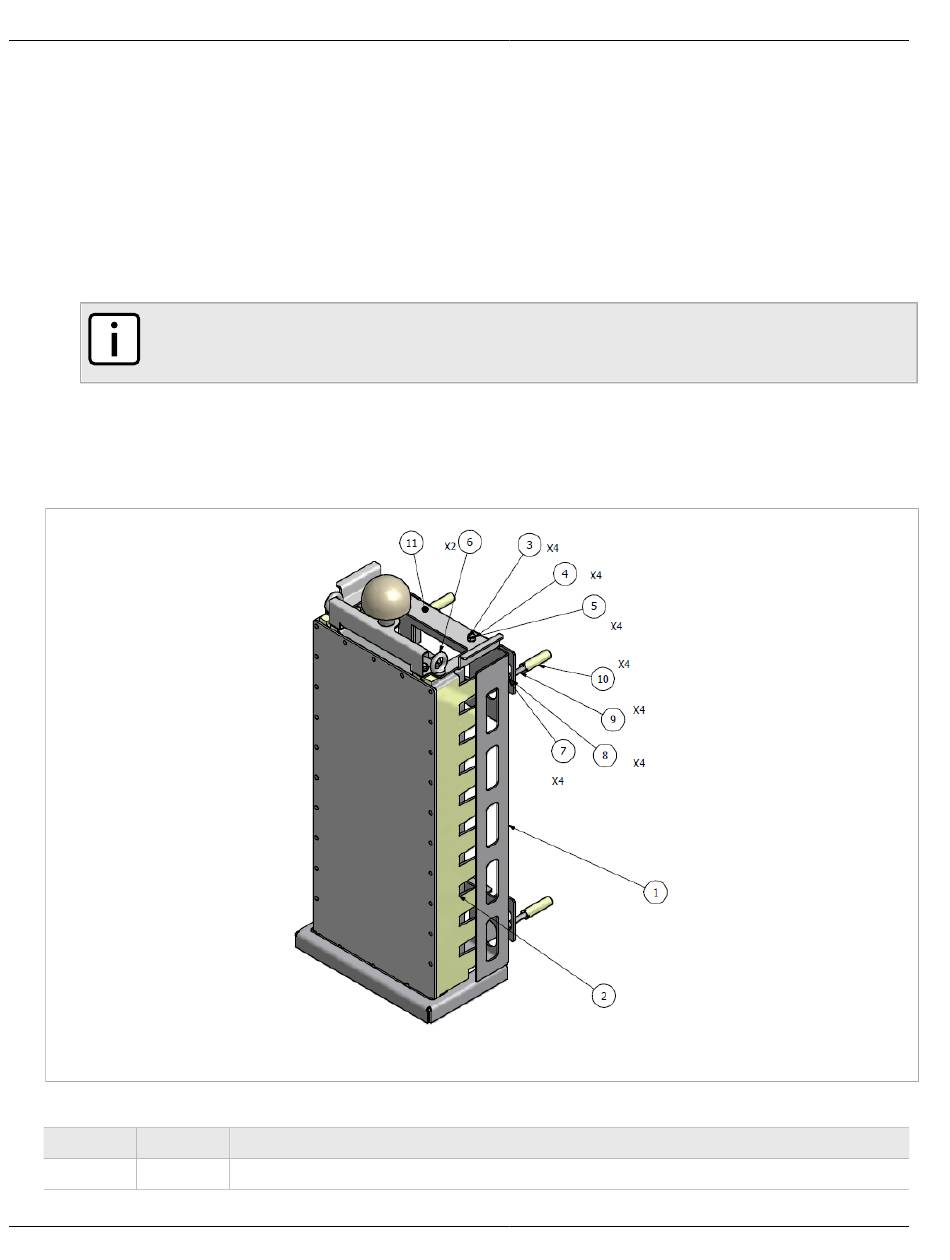

Figure 7: WIN7000 Wall Mounting Diagram
Table: WIN7000 Wall Mount Parts List
Item
Quantity
1
1
Wall Mounting
Description
Mounting brackets
Chapter 3
Installation Procedures
13
