2.
Connect the other end (open end) of the supplied cable to the operator's power system (according to the
labelling on the cable and the following tables). For more information, see
show +48V and -48V configurations.

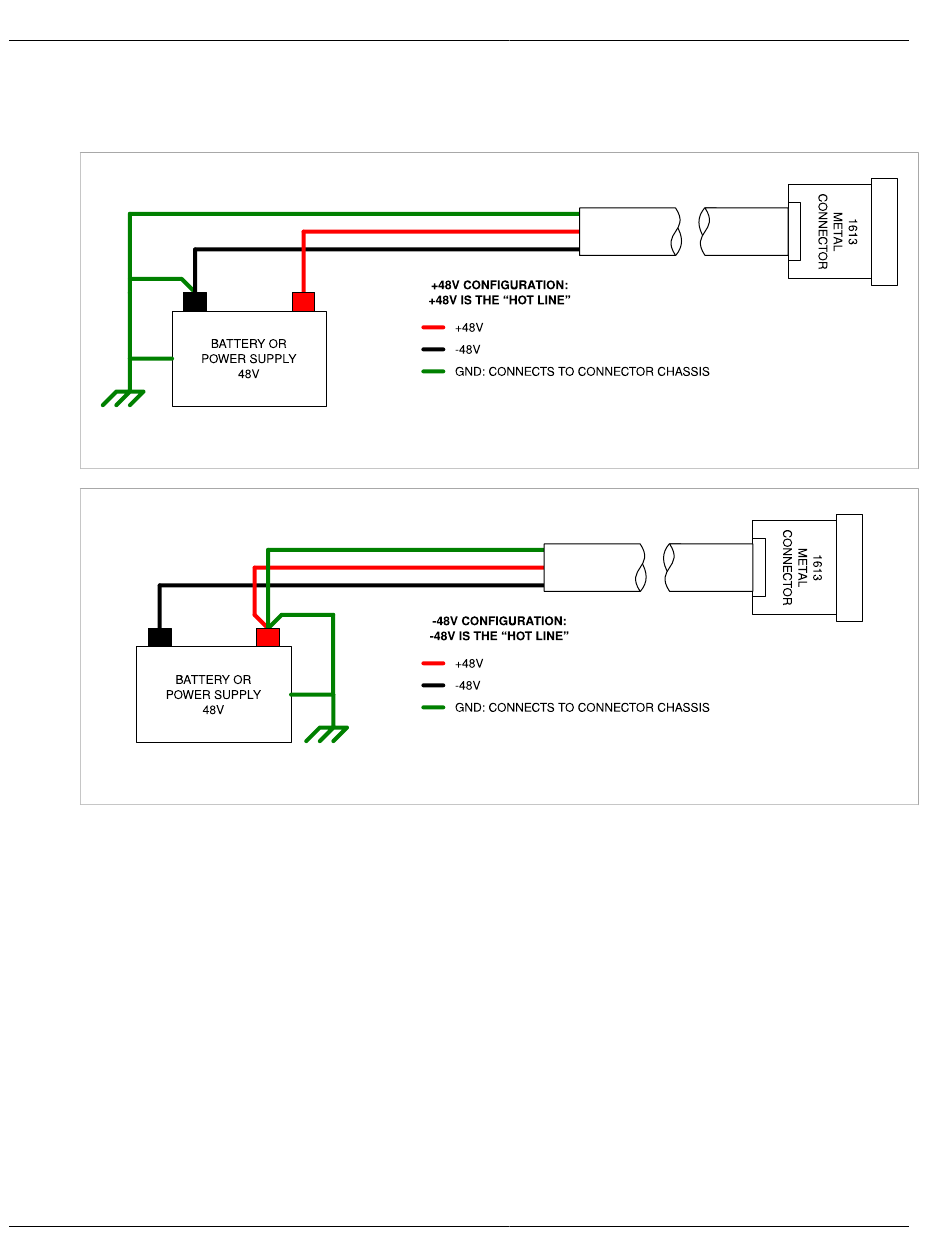

Figure 12: Positive 48V Configuration
Figure 13: Negative 48V Configuration
3.
Connect the optical cable to the F/O connector on the WIN7000 (for more information, see
SFD Type Base Station
Installation Procedures
Figure 12
and
Figure
13, which
Figure
Chapter 3
14).
