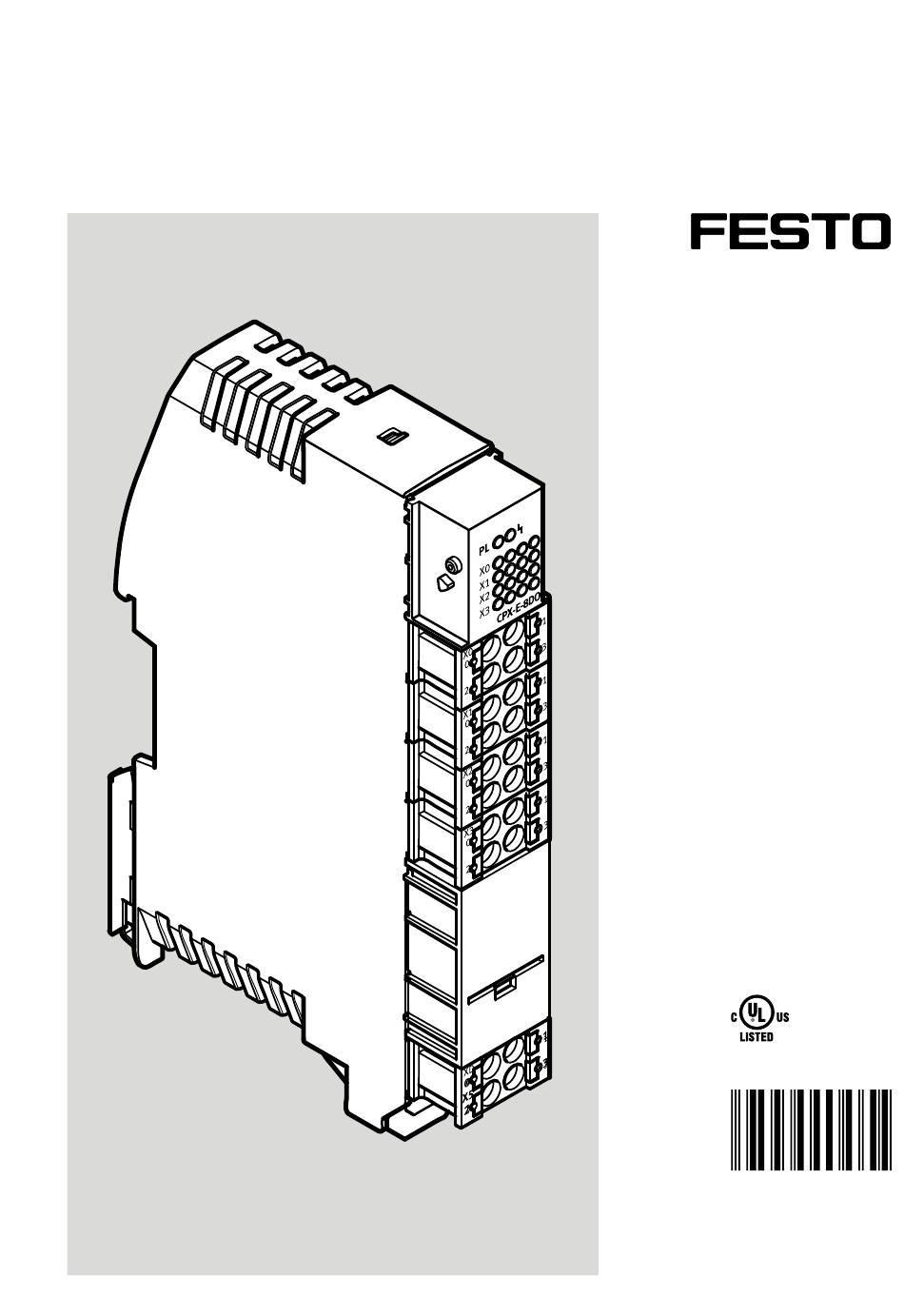

- Page 1 CPX-E-...DO-... Digital output module Description | Function, Parameterisation 8126685 8126685 2020-01a [8126687]...
- Page 2 Translation of the original instructions Festo — CPX-E-...DO-... — 2020-01a...
-
Page 3: Table Of Contents
Diagnostics........................8 Parameterisation......................10 Overview of parameters....................10 Module parameters...................... 10 3.2.1 Diagnostics of short circuit at output..............10 3.2.2 Diagnostics of undervoltage in load supply............11 3.2.3 Behaviour after SCO....................11 Technical Data......................12 Festo — CPX-E-...DO-... — 2020-01a... -
Page 4: About This Document
This document describes the function and parameterisation of the product stated in the title. Safe use of the product is described in a separate document è 1.1 Further applicable documents. Further applicable documents All available documents for the product è www.festo.com/pk. Documentation Contents... -
Page 5: Product Labelling
About this Document Appropriate software for determining the product version can be found in the Festo Support Portal è www.festo.com/sp. Information on using the software can be found in the integrated Help function. There may be an updated version of this document for these or later product versions è www.festo.com/sp. -
Page 6: Function
The electronic fuse of the module is slow-blowing. Electrical consumers with a temporarily higher cur- rent requirement can therefore also be connected. Festo — CPX-E-...DO-... — 2020-01a... -
Page 7: Product Design
Connecting components Connection [X0] … [X3] Signal +24 V DC output 0, 2, 4, … +24 V DC output 1, 3, 5, … 0 V DC output 0, 2, 4, … 0 V DC output 1, 3, 5, … Tab. 5 Connection [X0] ... [X3] Festo — CPX-E-...DO-... — 2020-01a... -
Page 8: Diagnostics
3.2.3 Behaviour after SCO è Load power supply U not present or Check load power supply undervoltage – Normal operating status 1) flashes once briefly during initialisation of the automation system CPX-E. Tab. 7 Module error Festo — CPX-E-...DO-... — 2020-01a... - Page 9 Tab. 9 Status of output [X0.0], [X0.1], [X1.0], ... Load power supply U [PL] Meaning Remedy (green) – Load power supply present Load voltage supply U not present or Check load power supply undervoltage Tab. 10 Load power supply [PL] Festo — CPX-E-...DO-... — 2020-01a...
-
Page 10: Parameterisation
Selection via parameter F no. 4828 + Deactivate diagnostics No diagnostics Activate diagnostics Diagnostics (default) 1) Function number (è Description of automation system CPX-E); m = module number (counted from left to right, starting from 0) Tab. 12 Festo — CPX-E-...DO-... — 2020-01a... -
Page 11: Diagnostics Of Undervoltage In Load Supply
Leave power switched off Power remains switched off (default) Reactivate voltage auto- Automatic return matically 1) Function number (è Description of automation system CPX-E); m = module number (counted from left to right, starting from 0) Tab. 14 Festo — CPX-E-...DO-... — 2020-01a... -
Page 12: Technical Data
3) for horizontal mounting position Tab. 15 General Technical Data Power supply Operating power sup- [V DC] 24 25% ply U EL/SEN Intrinsic current con- [mA] Typ. 16 sumption at nominal operating voltage 24 V from U EL/SEN Festo — CPX-E-...DO-... — 2020-01a... - Page 13 Yes, max. of 4 outputs per group (A0 A3/A4 A7) … … Protection against reverse max. U voltage Limitation of inductive Typ. Typ. – – switch-off voltage Electrical isolation Between operating voltage sup- ply U and load voltage sup- EL/SEN ply U Festo — CPX-E-...DO-... — 2020-01a...
- Page 14 Signal change from 1 to [µs] 200 1) type 2, 24 V DC according to IEC 61131-2 Tab. 17 Digital Outputs Ambient conditions UL/CSA Pollution degree Installation site for indoor use only Max. installation height [m] 2000 Tab. 18 Ambient Conditions UL/CSA Festo — CPX-E-...DO-... — 2020-01a...
- Page 16 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Internet: www.festo.com © 2020 all rights reserved to Festo SE & Co. KG...
