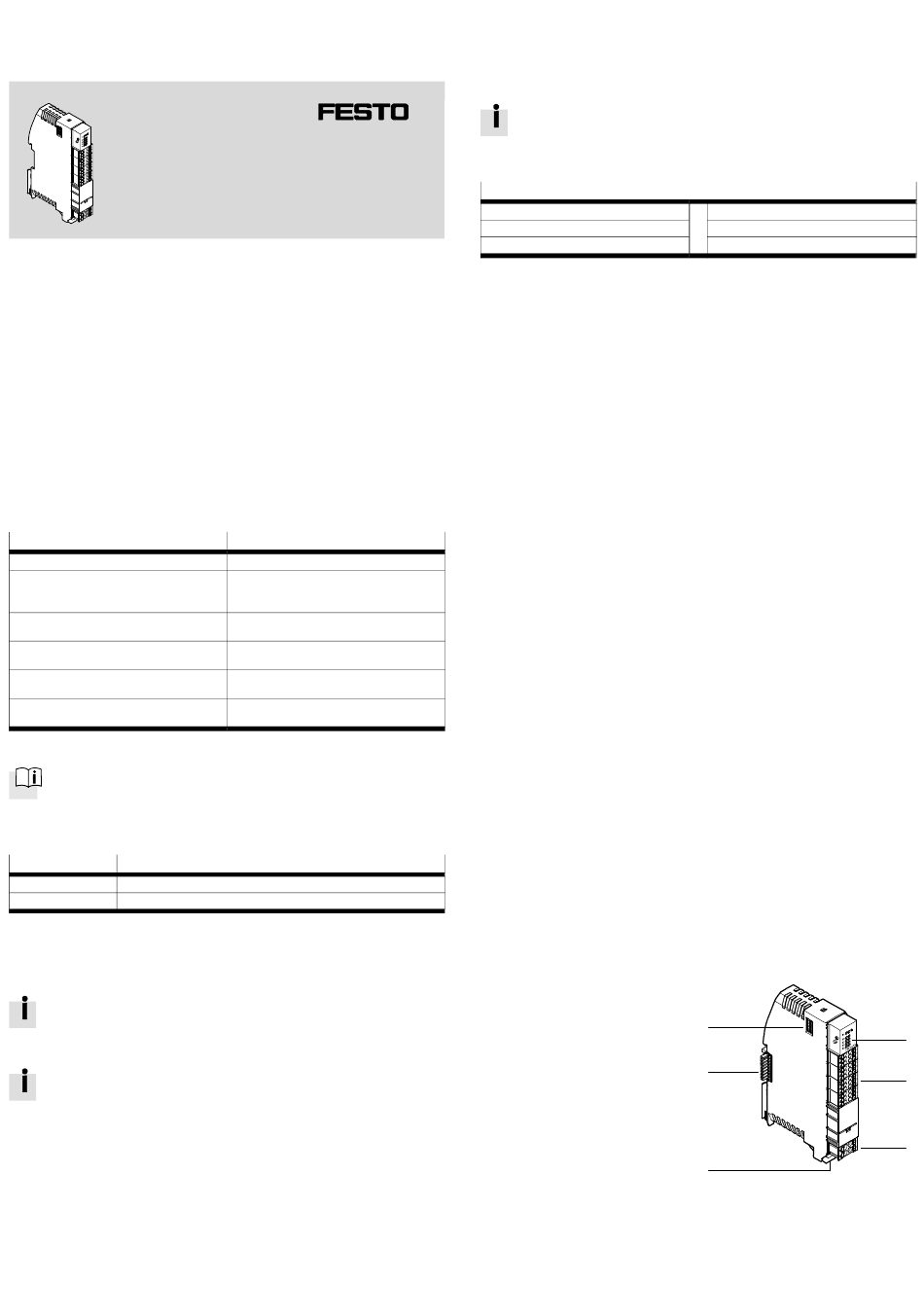

Festo CPX-E-4IOL-P Instructions For Use

IO-Link Master Module
CPX-E-4IOL-...
Instructions for use
Original instructions
IO-Link master module CPX-E-4IOL-...
1

About this document

This document describes the use of the above-mentioned products.
Certain aspects of use are described in other documents and must be observed
è 1.1 Further applicable documents.
®
IO-Link is a registered trademark of its respective trademark holder in certain
countries.

1.1 Further applicable documents

Document
Description of system CPX-E (CPX-E-SYS)
Instructions for use of system CPX-E
(CPX-E-SYS)
Description of IO-Link master module
CPX-E-4IOL-... (CPX-E-4IOL-...)
Documentation for the components in system
CPE-X and the connected peripherals
Documentation of the connected devices with
the IO-Link interface
Documentation for the higher-order controller
and the additional participants in the network
Fig. 1
All available documents for the product è www.festo.com/pk.
1.2 Product version
This document refers to the following product versions:
Product Version number
CPX-E-4IOL IO-Link master module CPX-E-4IOL as of Revision 1
1)
CPX-E-4IOL-P IO-Link master module CPX-E-4IOL-P as of Revision 1
1) Use in an industrial environment and process automation according to NE 21
Fig. 2
The product version can be identified from the product label or with the help of
appropriate software from Festo.
Suitable software for determining the product version is available on the
support portal of Festo è www.festo.com/sp. Information on using the
software can be found in the integrated Help function.
There may be an updated version of this document for these or later
product versions.
• Check whether a corresponding version of this document is available in
the Support Portal of Festo è www.festo.com/sp.
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8071099
2017-07
[8071101]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents
Detailed description of the system CPX-E
Instructions and important notes on mounting,
electrical installation and maintenance tasks
for a system CPX-E
Detailed description of the product function
and parameterisation possibilities
Information on use of the components
Information on commissioning and
parameterisation of the components
Information on commissioning and
parameterisation of the components

1.3 Product labelling

The product label is located on the left-hand side of the module. Scanning the
printed Data Matrix Code with an appropriate device calls up the Festo Support
Portal, with information appropriate for the product. Alternatively, the product key
(11-digit alphanumeric code or product label) can be entered in the search field of
the Support Portal.
Detailed information on product labelling can be found in the description
of the module è 1.1 Further applicable documents.

1.4 Specified standards

Version status
EN 60529:2013-10
EN 61000-6-2:2009-04
EN 61000-6-4:2011-09
Fig. 3
2

Safety

2.1 General safety information
• Take into consideration the legal regulations for the respective destination.
• Use the product only within the defined values (è 14 Technical data).
• Observe product labelling.
• Observe further applicable documents. è 1.1 Further applicable documents.
English
• Store the product in a cool, dry, UV-protected and corrosion-protected
environment. Ensure storage times are short.
• Before working on the product: Switch off the power supply and secure it
against being switched on again.
• Observe the handling specifications for electrostatically sensitive devices.

2.2 Use for intended purpose

The products described in this document are intended only for use as an interface
between system CPX-E and devices with an IO-Link interface.
The products must be used only as follows:
– Use only in an industrial environment: Outside of industrial environments, e.g. in
commercial and mixed-residential areas, actions to suppress interference may
have to be taken.
– Use only in combination with modules and components that are permissible for
the respective product variant è www.festo.com/catalogue.
– Only use the product if it is in perfect technical condition.
– Only use the product in original status without unauthorised modifications.
Only the conversions or modifications described in this and the other applicable
documents are permitted.
Additional application ranges for modules CPX-E-...-P:
– Use in process automation

2.3 Training of specialized personnel

Installation, commissioning, maintenance and disassembly should only be
conducted by qualified personnel.
The qualified personnel must be familiar with installation and operation of
electrical control systems.
3 Further information
– Accessories è www.festo.com/catalogue
– Spare parts è www.festo.com/spareparts
4

Service

• Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5

Product overview

5.1 Function

The product provides 4 IO-Link interfaces (ports) in system CPX-E.

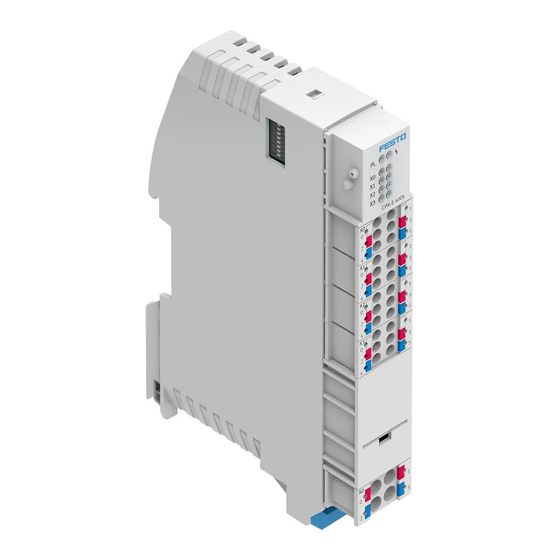

5.2 Product design

1
Led Displays
2
Terminal strips of the IO-Link
interface (Ports 1 ... 4) [X0 ... X3]
3
Terminal strip of load voltage
supply U [XD]
OUT
4
Terminal strip interlock
5
Linking
6
DIL switch
Fig. 4
IEC 60204-1:2014-10
NE 21:2012-05
6
5
4
1
2
3
