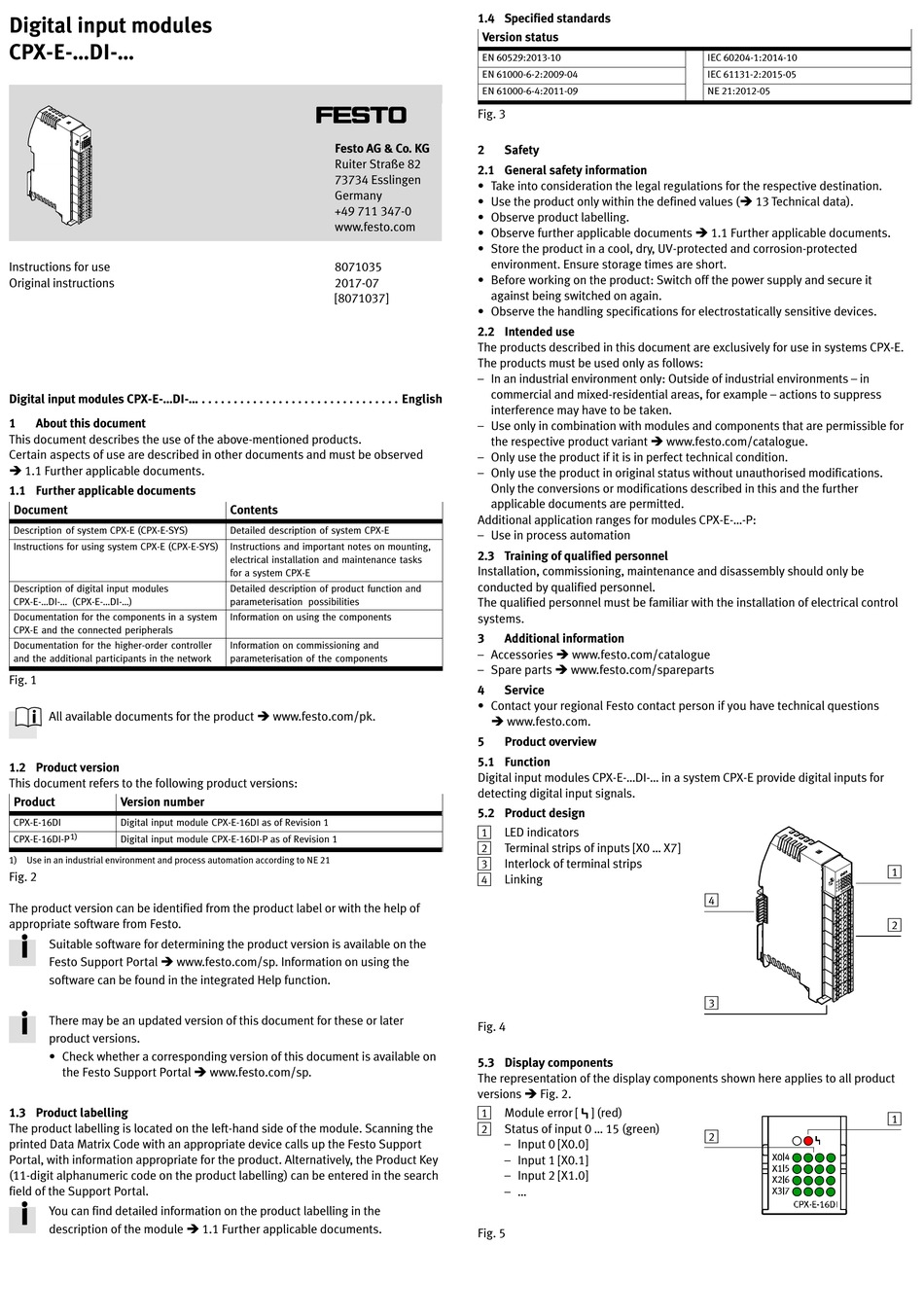

Digital input modules
CPX-E-...DI-...
Instructions for use
Original instructions
Digital input modules CPX-E-...DI-...
1

About this document

This document describes the use of the above-mentioned products.
Certain aspects of use are described in other documents and must be observed
è 1.1 Further applicable documents.

1.1 Further applicable documents

Document
Description of system CPX-E (CPX-E-SYS)
Instructions for using system CPX-E (CPX-E-SYS)
Description of digital input modules
CPX-E-...DI-... (CPX-E-...DI-...)
Documentation for the components in a system
CPX-E and the connected peripherals
Documentation for the higher-order controller
and the additional participants in the network
Fig. 1
All available documents for the product è www.festo.com/pk.
1.2 Product version
This document refers to the following product versions:
Product Version number
CPX-E-16DI Digital input module CPX-E-16DI as of Revision 1
1)
CPX-E-16DI-P Digital input module CPX-E-16DI-P as of Revision 1
1) Use in an industrial environment and process automation according to NE 21
Fig. 2
The product version can be identified from the product label or with the help of
appropriate software from Festo.
Suitable software for determining the product version is available on the
Festo Support Portal è www.festo.com/sp. Information on using the
software can be found in the integrated Help function.
There may be an updated version of this document for these or later
product versions.
• Check whether a corresponding version of this document is available on
the Festo Support Portal è www.festo.com/sp.

1.3 Product labelling

The product labelling is located on the left-hand side of the module. Scanning the
printed Data Matrix Code with an appropriate device calls up the Festo Support
Portal, with information appropriate for the product. Alternatively, the Product Key
(11-digit alphanumeric code on the product labelling) can be entered in the search
field of the Support Portal.
You can find detailed information on the product labelling in the
description of the module è 1.1 Further applicable documents.
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8071035
2017-07
[8071037]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents
Detailed description of system CPX-E
Instructions and important notes on mounting,
electrical installation and maintenance tasks
for a system CPX-E
Detailed description of product function and
parameterisation possibilities
Information on using the components
Information on commissioning and
parameterisation of the components

1.4 Specified standards

Version status
EN 60529:2013-10
EN 61000-6-2:2009-04
EN 61000-6-4:2011-09
Fig. 3
2

Safety

2.1 General safety information

• Take into consideration the legal regulations for the respective destination.
• Use the product only within the defined values (è 13 Technical data).
• Observe product labelling.
• Observe further applicable documents è 1.1 Further applicable documents.
• Store the product in a cool, dry, UV-protected and corrosion-protected
environment. Ensure storage times are short.
• Before working on the product: Switch off the power supply and secure it
against being switched on again.
• Observe the handling specifications for electrostatically sensitive devices.

2.2 Intended use

The products described in this document are exclusively for use in systems CPX-E.
The products must be used only as follows:
– In an industrial environment only: Outside of industrial environments – in
commercial and mixed-residential areas, for example – actions to suppress
English
interference may have to be taken.
– Use only in combination with modules and components that are permissible for
the respective product variant è www.festo.com/catalogue.
– Only use the product if it is in perfect technical condition.
– Only use the product in original status without unauthorised modifications.
Only the conversions or modifications described in this and the further
applicable documents are permitted.
Additional application ranges for modules CPX-E-...-P:
– Use in process automation

2.3 Training of qualified personnel

Installation, commissioning, maintenance and disassembly should only be
conducted by qualified personnel.
The qualified personnel must be familiar with the installation of electrical control
systems.
3 Additional information
– Accessories è www.festo.com/catalogue
– Spare parts è www.festo.com/spareparts
4 Service
• Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5

Product overview

5.1 Function

Digital input modules CPX-E-...DI-... in a system CPX-E provide digital inputs for
detecting digital input signals.

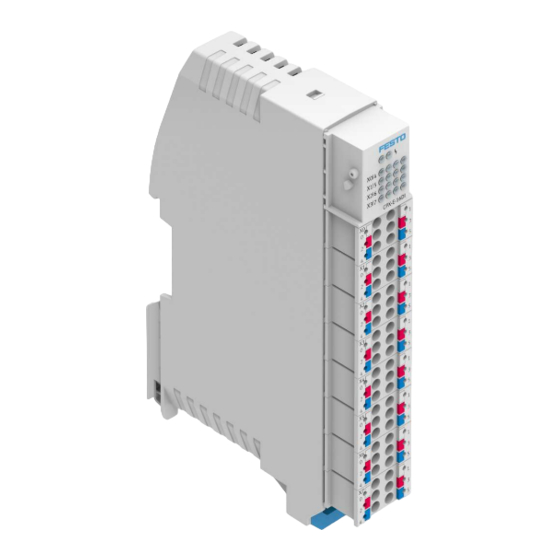

5.2 Product design

1
Led Indicators
2
Terminal strips of inputs [X0 ... X7]
3
Interlock of terminal strips
4
Linking
Fig. 4

5.3 Display components

The representation of the display components shown here applies to all product
versions è Fig. 2.
1
Module error [P] (red)
2
Status of input 0 ... 15 (green)
– Input 0 [X0.0]
– Input 1 [X0.1]
– Input 2 [X1.0]
– ...
Fig. 5
IEC 60204-1:2014-10
IEC 61131-2:2015-05
NE 21:2012-05
4
3
2
1
2
1
