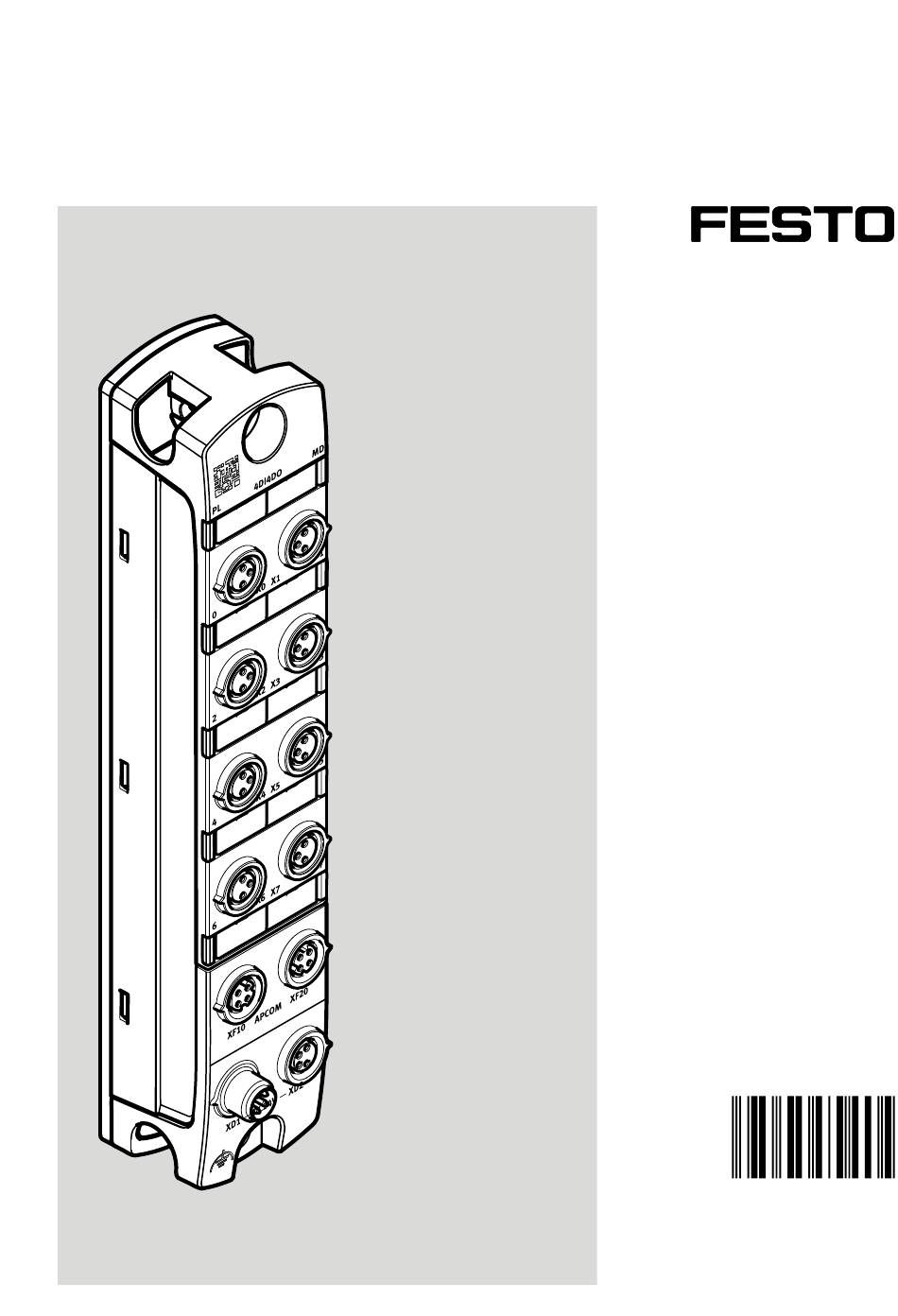

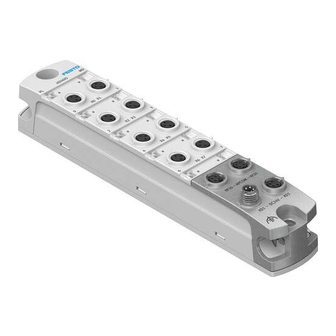

- Page 1 CPX-AP-I-4DI4DO-M8-3P Digital input/output module Instructions | Operat- 8099666 8099666 2019-06 [8099668]...
- Page 2 Translation of the original instructions Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
-
Page 3: Table Of Contents
Product design......................7 5.2.2 LED displays......................8 5.2.3 Connecting elements....................8 Assembly........................10 Installation........................10 Commissioning......................10 Parameterisation......................10 Diagnostics and fault clearance.................. 12 10.1 Diagnostic messages....................12 10.2 LED displays......................... 14 Disposal........................16 Technical data......................17 Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... -
Page 4: About This Document
The product labelling is located on the right-hand side of the module. The Data Matrix code is on the connection side. Scanning the printed Data Matrix Code with an appropriate device opens the Festo Support Portal with the information appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field of the Support Portal è www.festo.com/sp. -
Page 5: Specified Standards
Installation, commissioning, maintenance and disassembly should only be conducted by qualified per- sonnel. The qualified personnel must be familiar with installation of electrical control systems. Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... -
Page 6: Product Overview
The electronic fuse of the module is slow-blowing. Electrical consumers with a temporarily higher cur- rent requirement can therefore also be connected. Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... -
Page 7: Configuration
14 Mounting interface connection side bottom and connection functional earth FE 15 Mounting interface, lateral bottom and connection for functional earth FE 16 Inscription label (optional) 17 Mounting interface, lateral top Fig. 1 Product design Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... -
Page 8: Led Displays
5.2.3 Connecting elements Connection for power supply [XD1] Plug M8, 4-pin, A-coded Signal +24 V DC logic supply PS 0 V DC load supply PL 0 V DC logic supply PS +24 V DC load supply PL Tab. 4 Connection for power supply Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... - Page 9 Received data + Transmitted data – – Tab. 7 Connection for system communication Connection for inputs [X0] … [X3] Socket M8, 3-pin, A-coded Signal +24 V DC inputs 0 V DC inputs Input 0 3 … Tab. 8 Connection for inputs Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
-
Page 10: Assembly
Various parameters are available for reading out information about the modules in an automation sys- tem CPX-AP and adapting the modules to the application situation. Write access to the parameters is typically performed by the higher-level controller using the device descriptions specific to the host system. Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... - Page 11 Current measured value of logic supply PS UINT16 [mV] – 20088 Current measured value of load supply PL UINT16 [mV] – 20093 Hardware version UINT8 1) ro = read only; rw = read write Tab. 11 Parameter Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
-
Page 12: Diagnostics And Fault Clearance
A switch-off of the load supply PL was detected. The cause (33620230) PL 24 V DC can be a deliberate shutdown by the emergency stop. Remedy – Check if the emergency stop was activ- ated. – Check load supply PL. Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... - Page 13 PL 24 V DC ic status 02 01 013F Overvoltage in the Overvoltage in the load supply PL 24 V DC (33620287) load supply PL Remedy – Check load supply PL. 24 V DC Diagnost- Error ic status Tab. 12 Diagnostic messages Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
-
Page 14: Led Displays
PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 13 LED module diagnostics [MD] Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... - Page 15 Tab. 15 LED status of output Diagnostics of output LED (red) Meaning Remedy Short circuit/overload at output Check the connected actuators, elimin- ate short circuit/overload. Illuminated – No channel error at output Tab. 16 LED diagnostics of output Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
-
Page 16: Disposal
Load supply PL outside the tolerance Check load supply PL. range. Flashes red Tab. 17 LED load supply [PL] Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... -
Page 17: Technical Data
SELV/PELV circuits tric shock (protection (safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 61010-1) Electromagnetic com- See declaration of conformity www.festo.com è patibility Mounting position Tab. 18 General technical data Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06... - Page 18 PL Capacitive load at load supply PL 24 V PL to 0 V PL [nF] Typ. 45 24 V PL to FE [nF] Typ. 35 0 V PL to FE [nF] Typ. 20 Tab. 19 Power supply Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
- Page 19 Not permissible between 0 V SEN external and 0 V SEN internal Sensor power supply short circuit protection Short-circuit protection Electronic Trigger level 1.8 > Characteristic Slow-blowing Behaviour after end of Automatic return overload Tab. 20 Digital inputs Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
- Page 20 Trigger level 0.5 Characteristic Slow-blowing Behaviour after end of No automatic return overload Output delay with resistive load Signal change from 0 to [µs] 200 Signal change from 1 to [µs] 200 Tab. 21 Digital outputs Festo — CPX-AP-I-4DI4DO-M8-3P — 2019-06...
