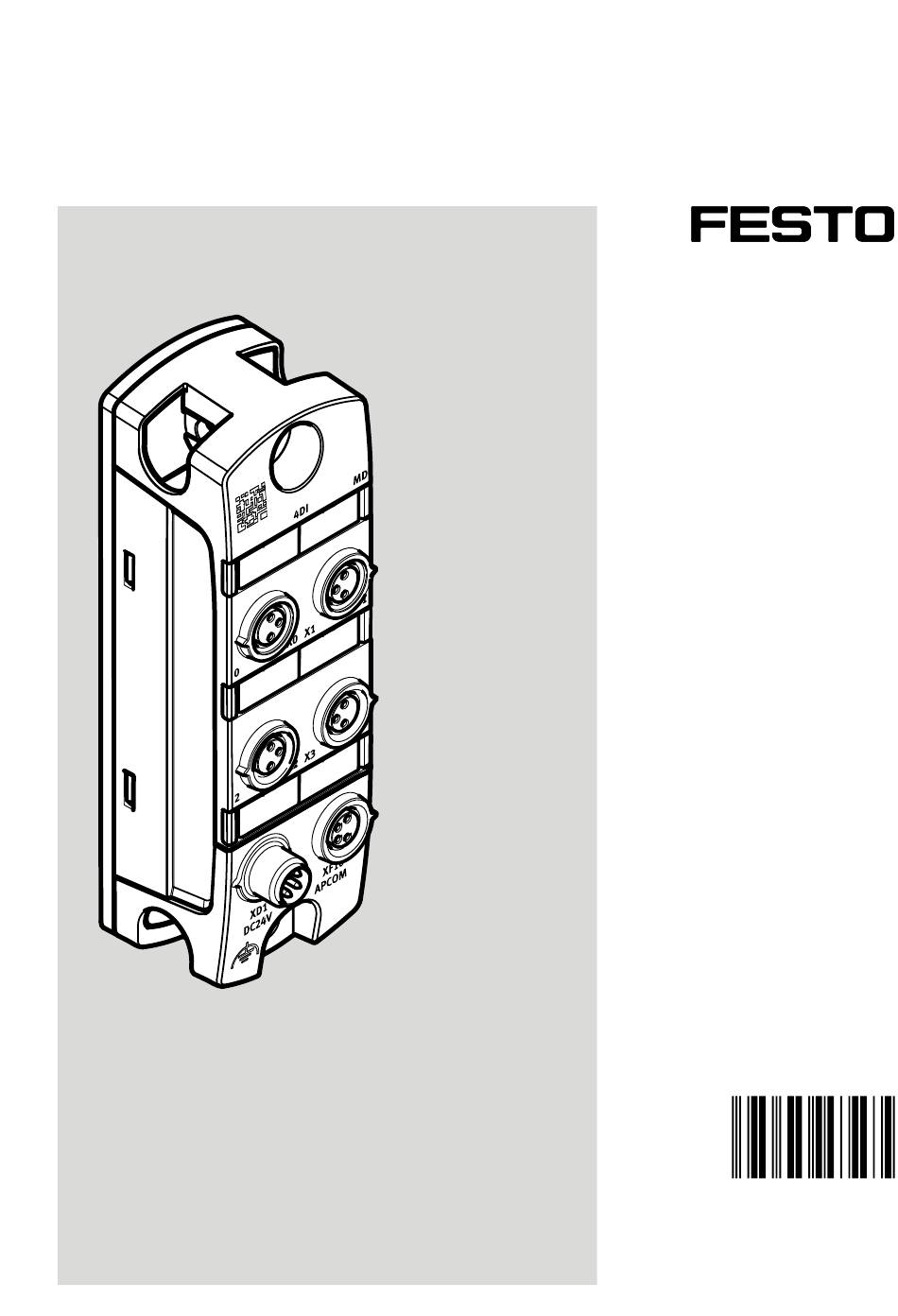

- Page 1 CPX-AP-I-4DI-M8-3P Digital input module Instructions | Operat- 8099760 8099760 2019-07 [8099762]...
- Page 2 Translation of the original instructions Festo — CPX-AP-I-4DI-M8-3P — 2019-07...
-
Page 3: Table Of Contents
Product design......................6 5.2.2 LED displays......................7 5.2.3 Connecting elements....................7 Assembly........................8 Installation........................8 Commissioning......................8 Parameterisation......................8 Diagnostics and fault clearance.................. 9 10.1 Diagnostic messages....................9 10.2 LED displays......................... 11 Disposal........................12 Technical data......................13 Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 4: About This Document
The product labelling is located on the sides of the module. The Data Matrix code is on the connection side. Scanning the printed Data Matrix Code with an appropriate device opens the Festo Support Portal with the information appropriate for the product. Alternatively, the Product Key (11-digit alpha- numeric code on the product labelling) can be entered in the search field of the Support Portal è www.festo.com/sp. -
Page 5: Specified Standards
Installation, commissioning, maintenance and disassembly should only be conducted by qualified per- sonnel. The qualified personnel must be familiar with installation of electrical control systems. Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 6: Product Overview
8 Mounting interface connection side bottom and connection functional earth FE 9 Mounting interface, lateral bottom and connection for functional earth FE 10 Inscription label (optional) 11 Mounting interface, lateral top Fig. 1 Product design Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 7: Led Displays
Tab. 4 Connection for power supply Connection for system communication [XF10] Socket M8, 4-pin, D-coded Signal Transmitted data – – Received data + Transmitted data + Received data – – Tab. 5 Connection for system communication Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 8: Assembly
Various parameters are available for reading out information about the modules in an automation sys- tem CPX-AP and adapting the modules to the application situation. Write access to the parameters is typically performed by the higher-level controller using the device descriptions specific to the host system. Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 9: Diagnostics And Fault Clearance
Diagnost- Error ic status 02 01 0016 Undervoltage in logic Undervoltage of the logic supply PS 24 V DC was detec- (33619990) supply PS 24 V DC ted. Remedy – Check logic supply PS. Diagnost- Warning ic status Error Festo — CPX-AP-I-4DI-M8-3P — 2019-07... - Page 10 ID hex (dec) Message Description 02 01 0017 Overvoltage in logic Overvoltage in the logic supply PS 24 V DC detected. (33619991) supply PS 24 V DC Remedy – Check logic supply PS. Diagnost- Error ic status Tab. 9 Diagnostic messages Festo — CPX-AP-I-4DI-M8-3P — 2019-07...
-
Page 11: Led Displays
PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 10 LED module diagnostics [MD] Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 12: Disposal
Logic 1 at input Illuminated – Input inactive (logic 0) Logic 0 at input Tab. 11 LED status of input Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — CPX-AP-I-4DI-M8-3P — 2019-07... -
Page 13: Technical Data
SELV/PELV circuits tric shock (protection (safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 61010-1) Electromagnetic com- See declaration of conformity www.festo.com è patibility Mounting position Tab. 12 General technical data Festo — CPX-AP-I-4DI-M8-3P — 2019-07... - Page 14 Logic supply PS [V DC] 24 25 % ± Intrinsic current con- [mA] Typ. 32 sumption at nominal operating voltage 24 V from PS Diagnostic message, [V DC] 18 < undervoltage in logic supply PS Tab. 13 Power supply Festo — CPX-AP-I-4DI-M8-3P — 2019-07...
- Page 15 Not permissible between 0 V SEN external and 0 V SEN internal Sensor power supply short circuit protection Short-circuit protection Electronic Trigger level 0.8 > Characteristic Slow-blowing Behaviour after end of Automatic return overload Tab. 14 Digital inputs Festo — CPX-AP-I-4DI-M8-3P — 2019-07...
