A p p e n d i x F : S e r i a l F l a s h a n d E E P R O M
The Wiced Smart tag includes the ability to switch between serial flash and EEPROM through DIP switches.
• EEPROM Configuration: verify that SW8 DIP switches 1, 3, and 5 are ON and all others are OFF .
• Serial Flash Configuration:
• Verify that SW8 DIP switches 2, 4, 6, 7, and 8 are ON and all others are OFF .

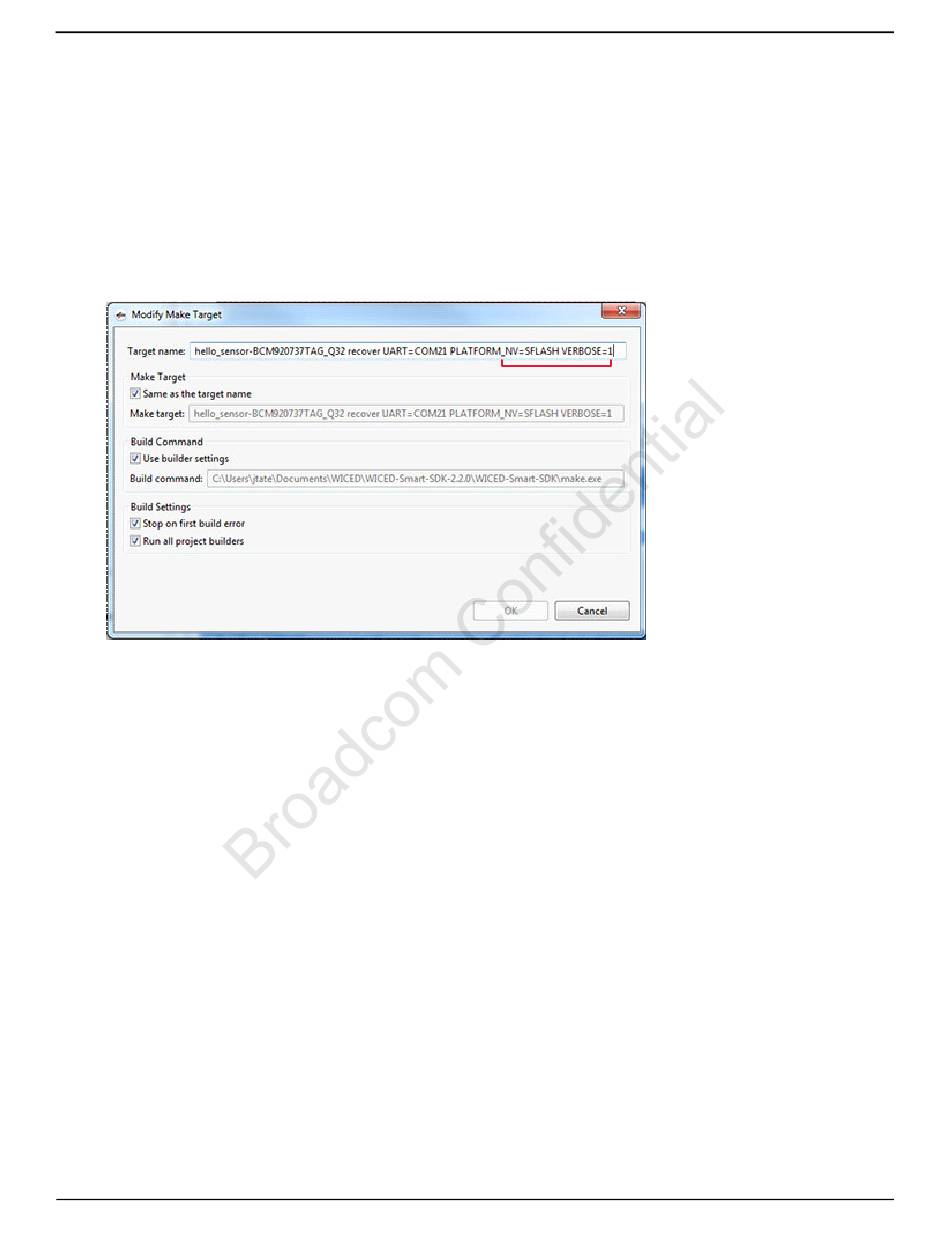

• Modify the make target to include NV=SFLASH VERBOSE=1
