WICED Smart Quick Start Guide
A p p e n d i x E : P o w e r M e a s u r e m e n t
The following steps describe how to measure power across the J12 jumper on the WICED Smart Tag (see
Figure 1 on page 9 for component locations):
1. Remove R29 to isolate the BCM20737 chip from the board.
2. Keep RD5 and RD6 in the B-C positions to measure power without the external DC/DC converter in play.
Note: The DC/DC converter reduces power consumption: when in use RD5 and RD6 are in the A-C
position.
Power consumption can be further reduced by removing FB3. However, doing so will prevent
reprogramming of the WICED Smart Tag.
3. Measure the power across the J12 jumper

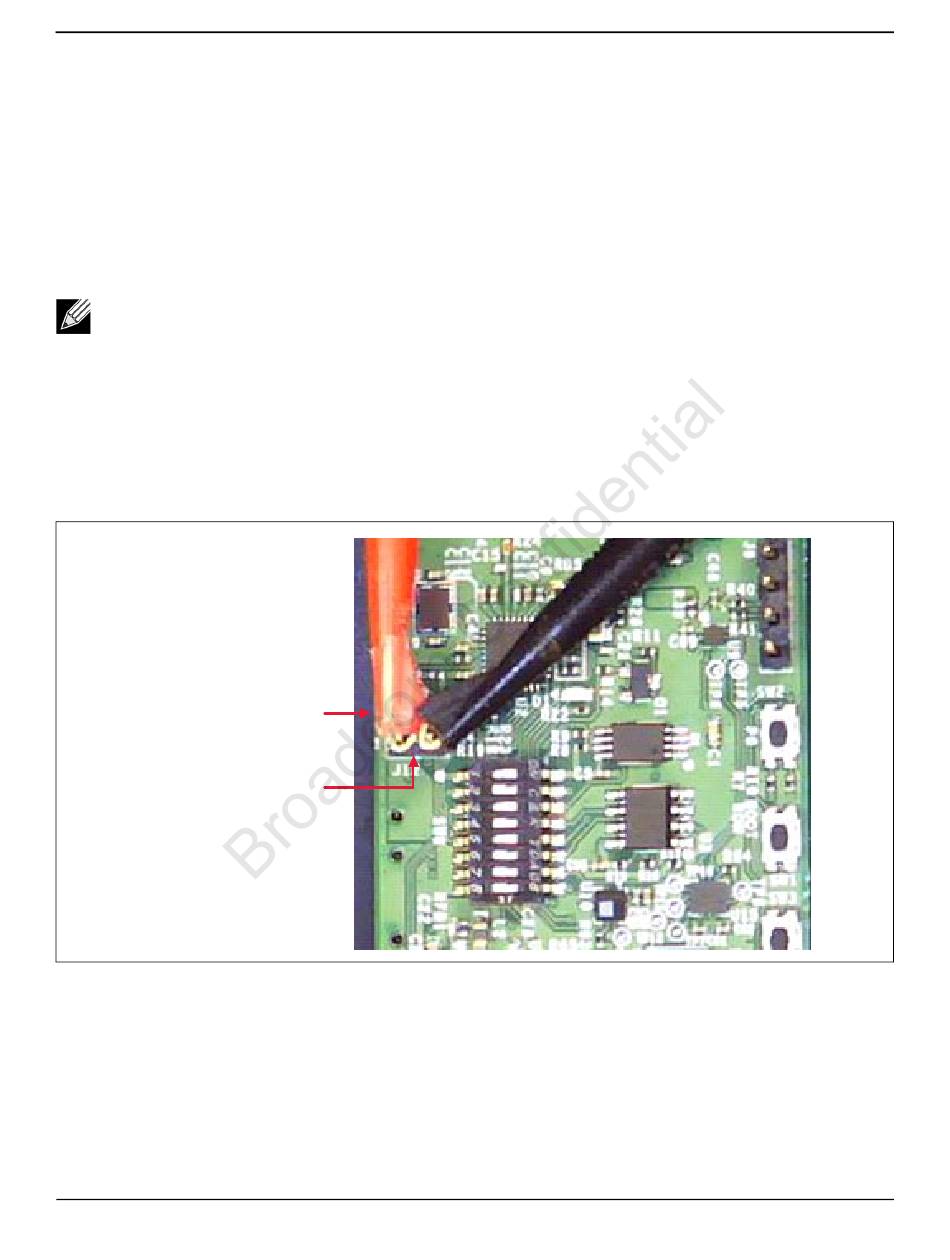

Figure 7: Power Measurement Location on the Top of the Board

R29 location is under the
red probe and is not
visible in this photo.
Broadcom
®
March 12, 2016 • WICED-Smart-QSG302-R
(Figure 7).
J12
Power Measurement
WICED Smart Development System
Page 28
