GMI D5093S Instruction Manual

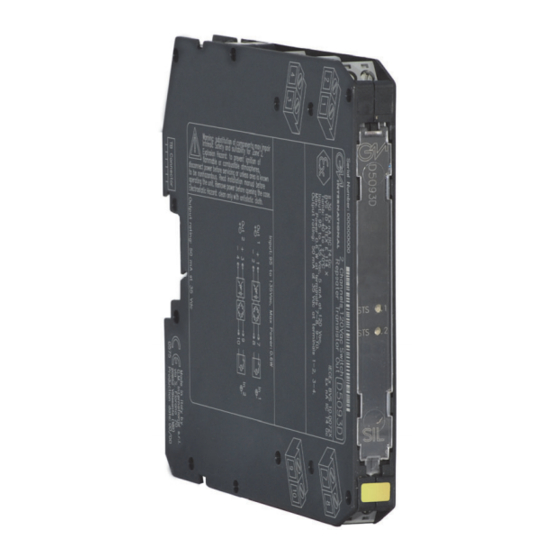

Sil 3 loop powered 24 to 220 vac/vdc switch repeater transistor out, din-rail and termination board
Hide thumbs Also See for D5093S:
1
2
3
4
5
6
7

Advertisement

Table of Contents

D5093S - D5093D
INSTRUCTION MANUAL
SIL 3 Loop Powered 24 to 220 Vac/Vdc
Switch Repeater Transistor Out,
DIN-Rail and Termination Board,
Models D5093S, D5093D
D5093 - SIL 3 Loop Powered 24 to 220 Vac /Vdc Switch Repeater Transistor Out
G.M. International ISM0175-7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5093S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GMI D5093S

Summary of Contents for GMI D5093S

  • Page 1 D5093S - D5093D INSTRUCTION MANUAL SIL 3 Loop Powered 24 to 220 Vac/Vdc Switch Repeater Transistor Out, DIN-Rail and Termination Board, Models D5093S, D5093D D5093 - SIL 3 Loop Powered 24 to 220 Vac /Vdc Switch Repeater Transistor Out G.M. International ISM0175-7...

  • Page 2: Technical Data

    General Description: The single and dual channel 24 to 220 Vac/Vdc Loop powered Switch Repeater D5093S and D5093D modules are units suitable for applications requiring SIL 3 level (according to IEC 61508:2010 Ed.2) in safety related systems for high risk industries. Each channel is able to reflect the presence of a 24 to 220 Vac/Vdc input signal to the output by closing an optically coupled NO open-drain transistor (solid-state relay, MOSFET output).

  • Page 3: Ordering Information

    Ordering Information DIN-Rail accessories: Cover and fix MCHP196 Model: D5093 1 channel 2 channels Front Panel and Features  SIL 3 according to IEC 61508:2010 Ed.2 for Tproof = 6 / 20 years (≤10% / >10 % of total SIF) ...

  • Page 4: Function Diagram

    Out 1 (SIL 3) 24 - 220 Vdc 24 - 220 Vac Out 2 (SIL 3) In 2 Termination board connector MODEL D5093S In 1 24 - 220 Vdc 24 - 220 Vac Out 1 (SIL 3) Termination board connector D5093 - SIL 3 Loop Powered 24 to 220 Vac /Vdc Switch Repeater Transistor Out G.M.
  • Page 5 The 2 channels of the D5093D module could be used to increase the hardware fault tolerance, needed for a higher SIL of a certain Safety Function, as they are completely independent from each other, not containing common components. In fact, the analysis results got for D5093S (single channel) are also valid for each channel of D5093D (double ch.).
  • Page 6 Connect a variable DC / AC source to any input terminals couple (7-8 for D5093S and 7-8, 9-10 for D5093D). Connect the positive output terminals (1 for D5093S and 1, 3 for D5093D) to the series of a current limiting resistor (i.e. 1 kΩ) and the positive pole of a DC voltage generator (i.e. 24 Vdc); then connect the output negative terminals (2 for D5093S and 2, 4 for D5093D) to the negative pole of the DC voltage generator.

  • Page 7: Operation

    Operation The single and dual channel 24 to 220 Vac / Vdc Loop powered Switch Repeater, D5093S and D5093D module is a unit suitable for applications requiring SIL 3 level (according to IEC 61508:2010 Ed. 2) in safety related systems for high risk industries.

This manual is also suitable for:

D5093d
